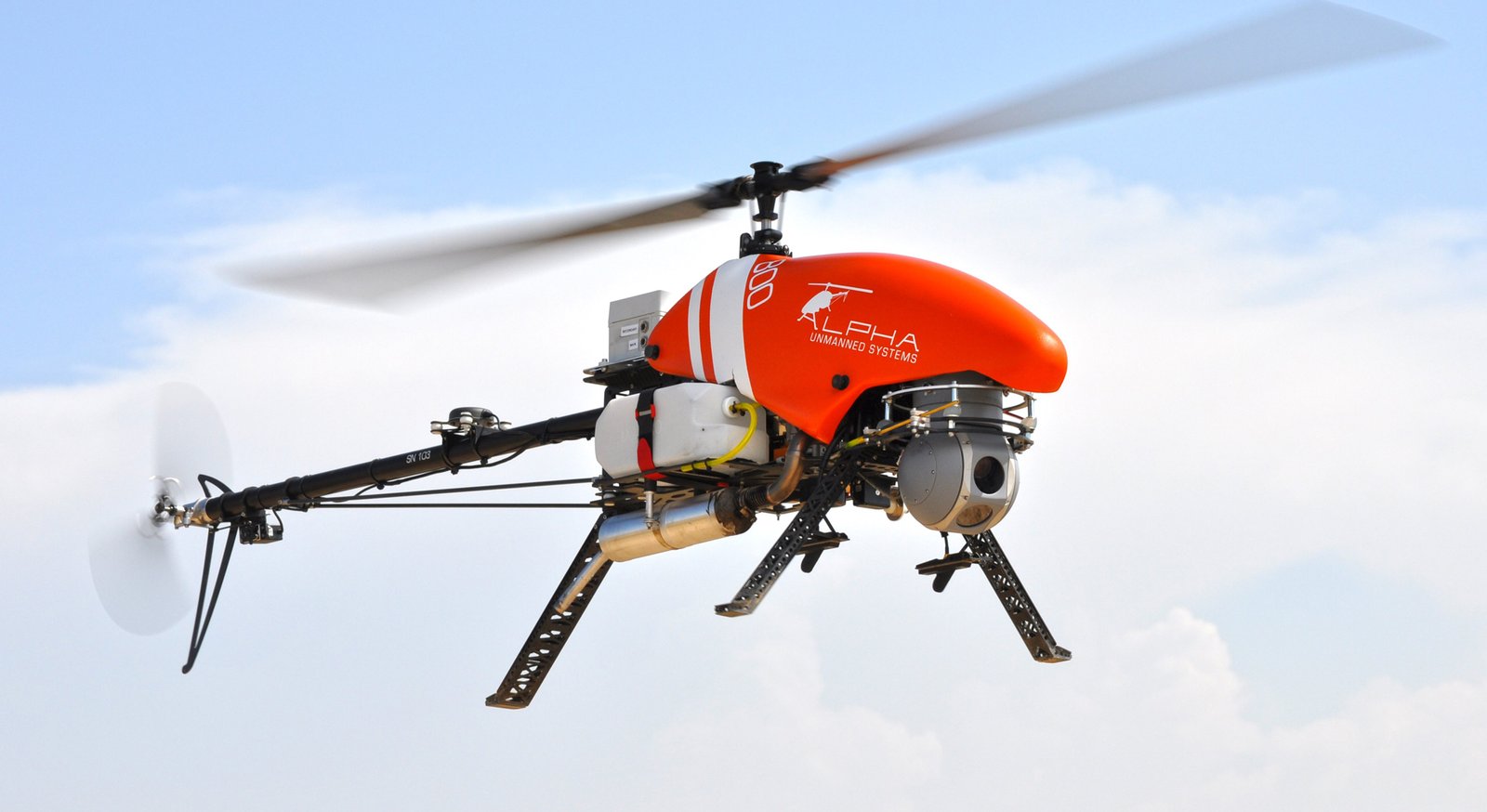

Alpha A800 UAV Helicopter
Product descripton: Alpha A800 UAV Helicopter by Alpha Unmanned Systems
The fuel-powered Alpha 800, at less than 14kg MTOW, is the most reliable UAV helicopter in its class. Similar in capabilities to a manned helicopter, it features a much lighter logistical footprint and far lower maintenance requirements and overall costs.
Compact, Safe, and User Friendly

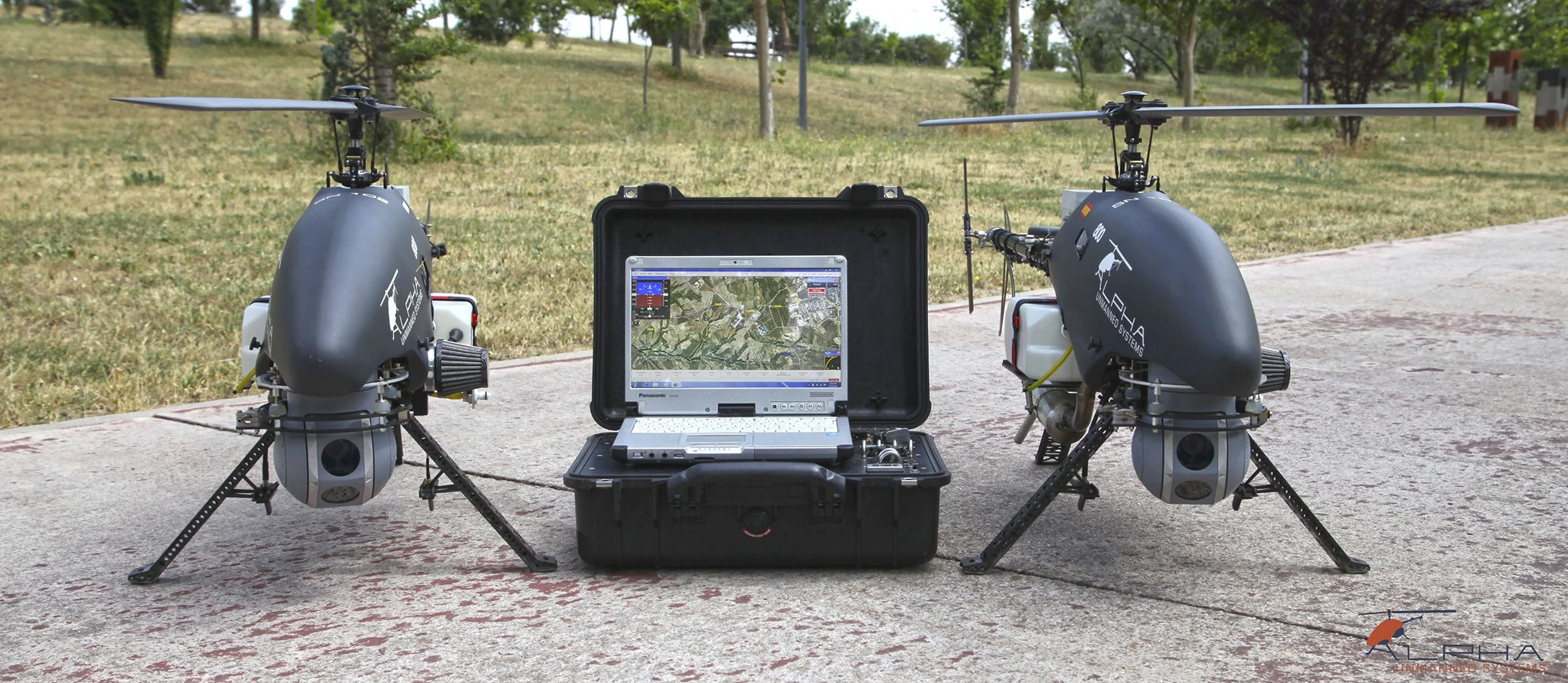

The complete A800 system is easily transported in a standard pick-up/van and is ready to deploy in minutes. Redundant safety measures and fully automatic autorotation ensure safe flights and landings.
Performance Highlights
-
Up to 2.5h endurance
-
Up to 2 kg payload capacity
-
Fully automatic mission execution
Technical specifications
| Specification | Value |
|---|---|
| UAV Type | Fuel-powered UAV helicopter |
| Maximum Take-Off Weight (MTOW) | < 14 kg |
| Endurance | Up to 2.5 hours |
| Payload Capacity | Up to 2–3 kg |
| Operational Range | Up to 30 km |
| Take-Off & Landing | Vertical (VTOL) |
| Hover Capability | Yes |
| Mission Execution | Fully automatic |
| Deployment Time | Minutes |
| Transport | Standard pick-up / van |
| Power System | On-board alternator / generator |
| Power Redundancy | Yes |
| Electronics Protection | IP64 or higher |
| Safety Features | Redundant systems, automatic autorotation |
| Operating Environment | Land and moving vessels |
| Available Payloads | EO/IR, LiDAR, Multispectral |

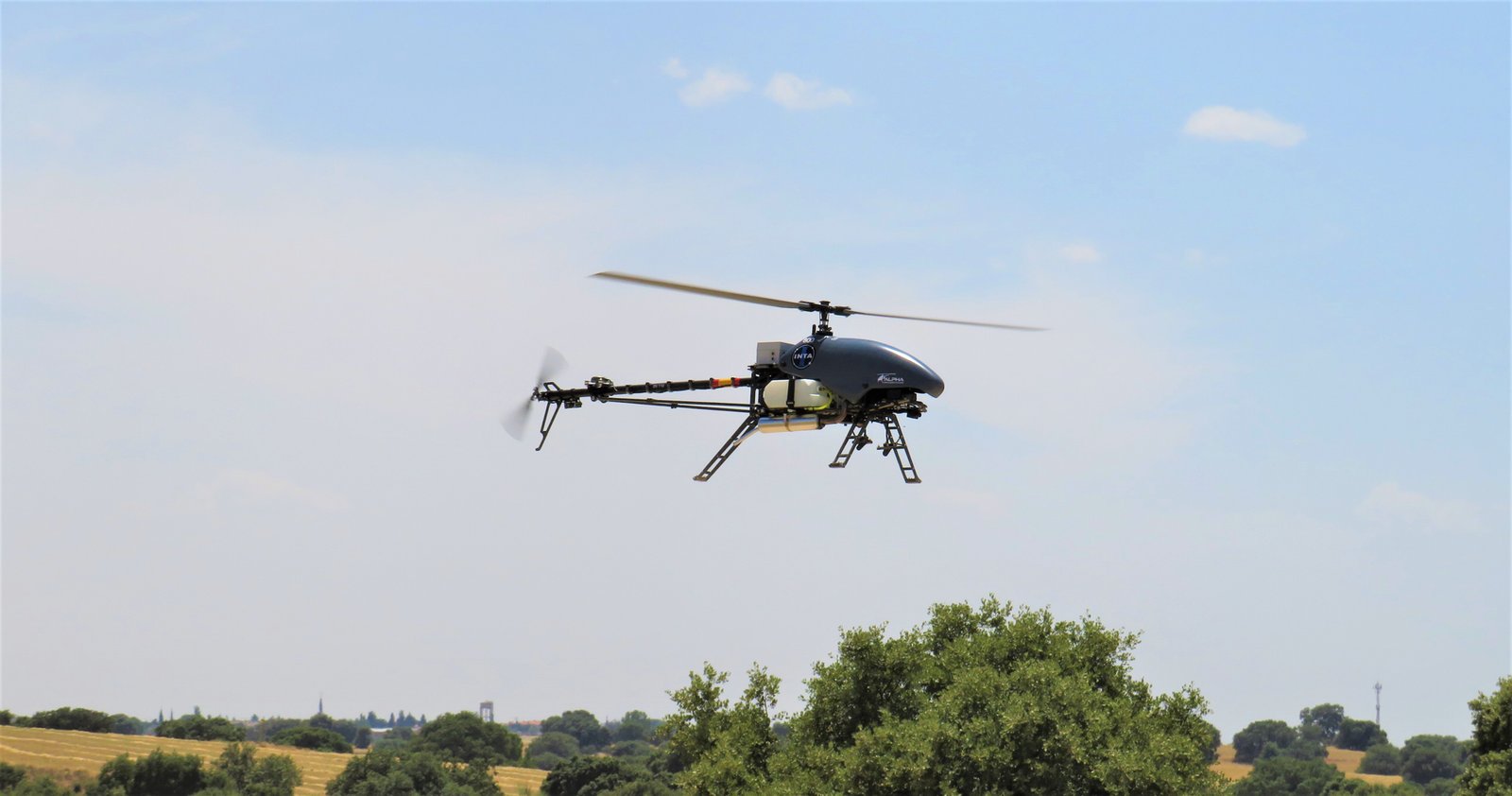

Flight Capabilities
VERTICAL TAKE-OFF AND LANDING & SMOOTH HOVERING
Ideal for ISTAR missions and infrastructure monitoring missions.
Sea and Land Operations
Ready for sea and land missions.
The complete system deploys in just minutes and begins and ends missions from either land or moving vessels.

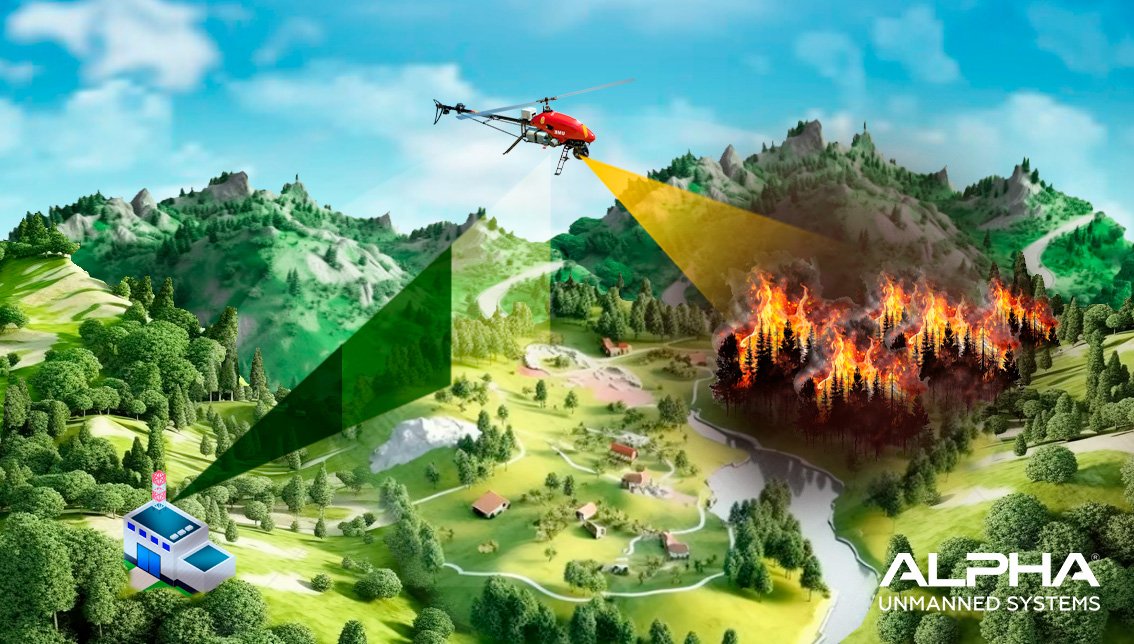

Alpha A800 Missions
-
Maritime security
-
Reconnaissance
-
Border control
-
SAR operations
-
Infrastructure analysis and inspections
-
ER logistics
A800 UAV Helicopter for Hard Work
-
Up to 2.5 hours endurance
-
Up to 3 kg payload capacity
-
Up to 30 km range
-
On-board alternator/generator
-
Redundant power supply
-
High variety of payloads available and integrated
-
All onboard electronics IP64 or higher rated
-
Patent pending technologies
Mission Profiles
Civil
-
Surveillance
-
Inspection
-
Land survey / mapping
-
Search & rescue
-
Traffic monitoring
-
Logistics
-
Environmental contamination analysis
Military / Public Services
-
Surveillance and reconnaissance
-
Advanced observation
-
Maritime security missions
-
First responders
Capabilities
Control over a wide range of tasks:
-
Auto take-off and landing
-
Auto flight plan execution (waypoints)
-
Hover and Fly-to
-
Auto Return-To-Base (RTB) in case of communication failure
-
Manual override
-
Camera (payload) stabilization, pointing and control
-
Onboard 3D Digital Elevation Model (DEM) for accurate control and camera
Rotary-Wing UAV Advantages
Combining key aspects of rotary wing UAVs:
-
Vertical take-off/landing and hovering
-
Extended endurance due to gas powered engine
-
Considerable payload capacity enabling use of high-quality EO/IR cameras and sensors
Available Integrated Payloads
-
Dual sensor cameras EO / IR
-
LiDAR payload
-
Multispectral payloads
