Alpha A900 Helicopter UAV
Product descripton: Alpha A900 Helicopter UAV by Alpha Unmanned Systems
Alpha’s newest fuel-powered helicopter UAV. Built STANAG-compliant to meet Maritime Security requirements (rapid deck deployment, longer flight time, flotation devices, etc.).
The robust fuel-powered UAV Alpha 900 is engineered for challenging environments.
Remarkably smart and versatile, it is a highly valuable operative resource. Weighing in with a MTOW of less than 25kg, it is designed and manufactured STANAG 4738 compliant for a range of applications in challenging conditions.
Key Performance Highlights
-
4H flight autonomy
-
Up to 8L fuel tank
-
Specialized in maritime missions
-
Autorotation
-
Up to 4 kg payload capacity
-
Fully automatic mission execution
-
Redundant critical systems
-
Up to a 100 km range
Flight Characteristics
VERTICAL TAKE-OFF AND LANDING & SMOOTH HOVERING
WEATHER-PROOF FOR WIND AND RAIN CONDITIONS
Alpha A900 Missions
The complete system deploys in just 30 minutes. Begin or end your missions from land or sea and on moving vessels.
-

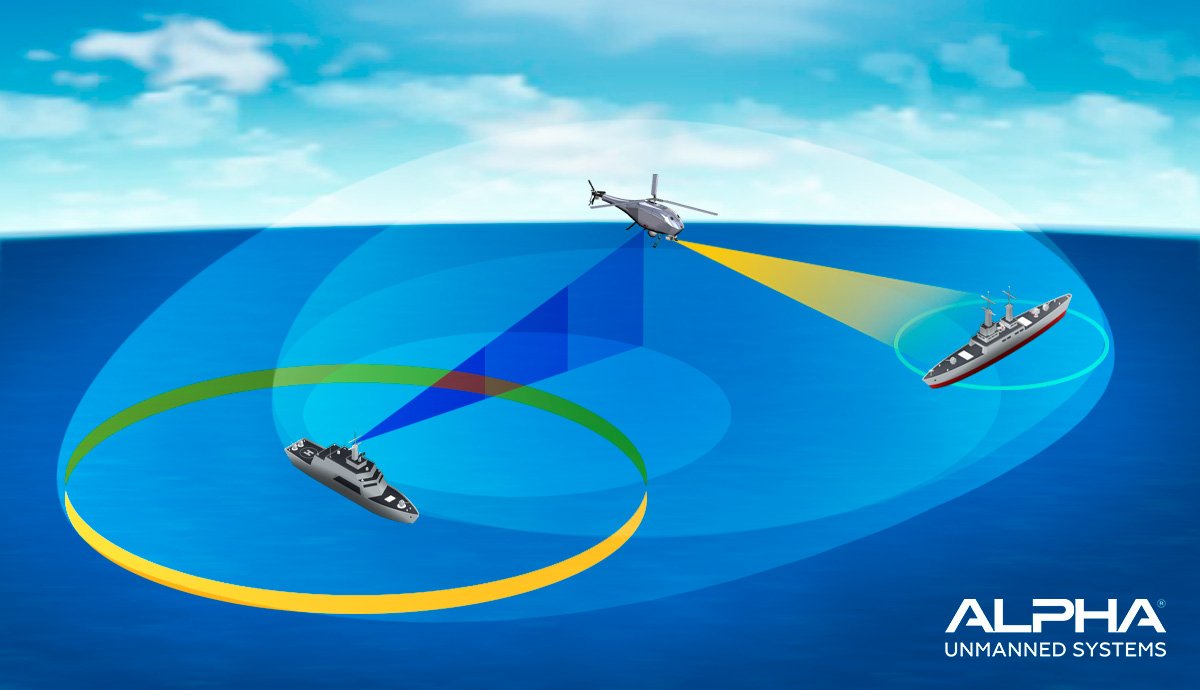

Maritime security
-
Reconnaissance
-
Border control
-
SAR operations
-
Infrastructure analysis and inspections
-
LiDAR data collection and ER logistics
-
Topographic surveying
Technical specifications
Aircraft & Systems
| Specification | Value |
|---|---|
| UAV Type | Fuel-powered UAV helicopter |
| MTOW | < 25 kg |
| Length | 1.76 m (5.8 ft) |
| Wingspan | 2.07 m (6.8 ft) |
| Propulsion | 100cc 2-stroke low vibration boxer engine |
| Fuel | 98 Octane Gasoline, Jet A1 Heavy Fuel, JP8 Heavy Fuel |
| Onboard Generator | Yes, up to 150 W for payloads |
| Max Output | 4 kW |
| Aircraft Radio Range | Up to 100 km (60 miles) |
| Sea State Capability | Sea State 5 (Beaufort Scale) |
| Landing | Automatic landing on moving vessels |
| Landing Tolerance | Pitch and roll up to 10º |
| Safety Systems | Autorotation, flotation devices |
Performance
| Specification | Value |
|---|---|
| Endurance | Up to 4 hours |
| Hover Mode | Yes, up to 2.5 hours |
| Payload Bays | 4 (Main, Secondary, Anchors, Electrical) |
| Payload Capacity | Up to 4 kg |
| Range | Up to 200 km / 124 miles |
| Landing Radius | 3 m (10 ft) |
| Ceiling | 3,000 m (10,000 ft) |
| Max Speed | 100 km/h (60 mph) |
| Cruise Speed | 60 km/h (38 mph) |
Capabilities
-
Redundant critical systems
-
Autorotation
-
MTOW < 25 kg
-
Cruise speed: 60–100 km/h (32–54 knots)
-
Emergency flotation devices
-
Boxer low vibration engine
-

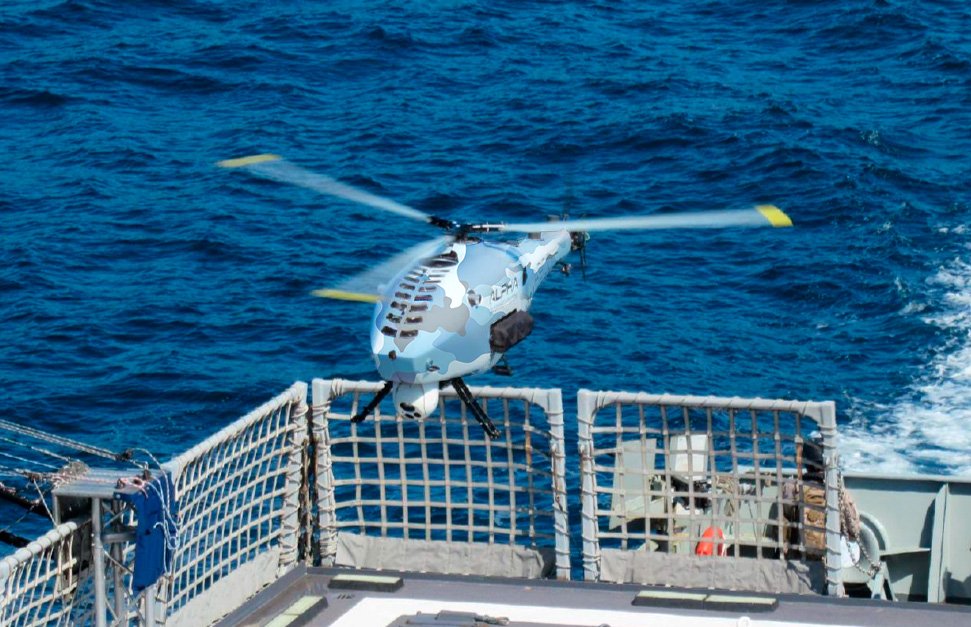

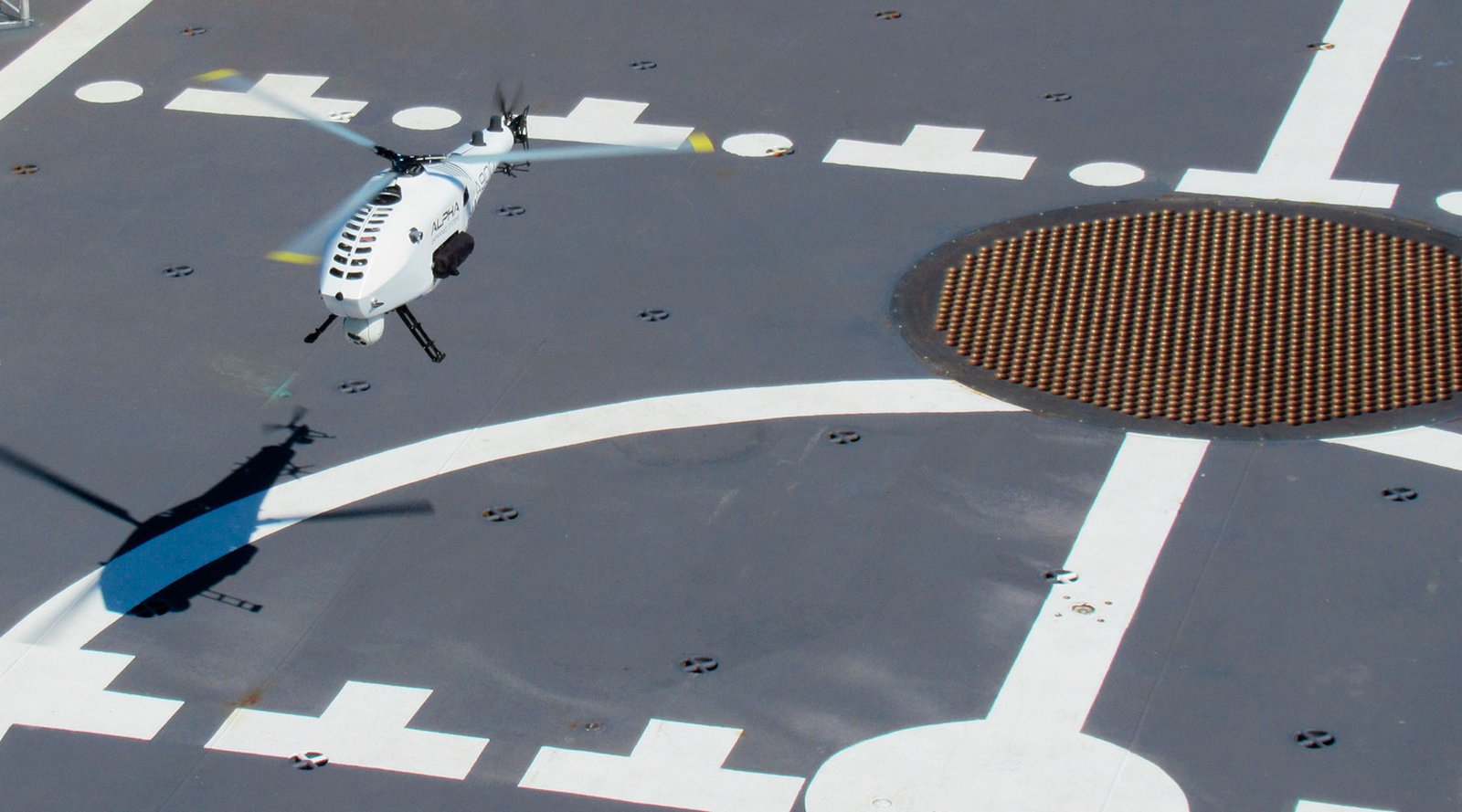

Autonomous VTOL from moving vessels
-
4H flight time
-
+2.5h autonomous hovering
-
Heavy-fuel powered
-
GPS denied navigation
-
Minimal logistical footprint
-
4 payload bays with 4 kg total payload capacity
Payload / Sensor Integration
The A900 supports a wide range of interchangeable and customizable payloads and sensors including, but not limited to:
-
EO / MWIR cameras
-
Automatic Identification System (AIS)
-
LiDAR
-
IMSI Capture
-
Cargo release mechanism
