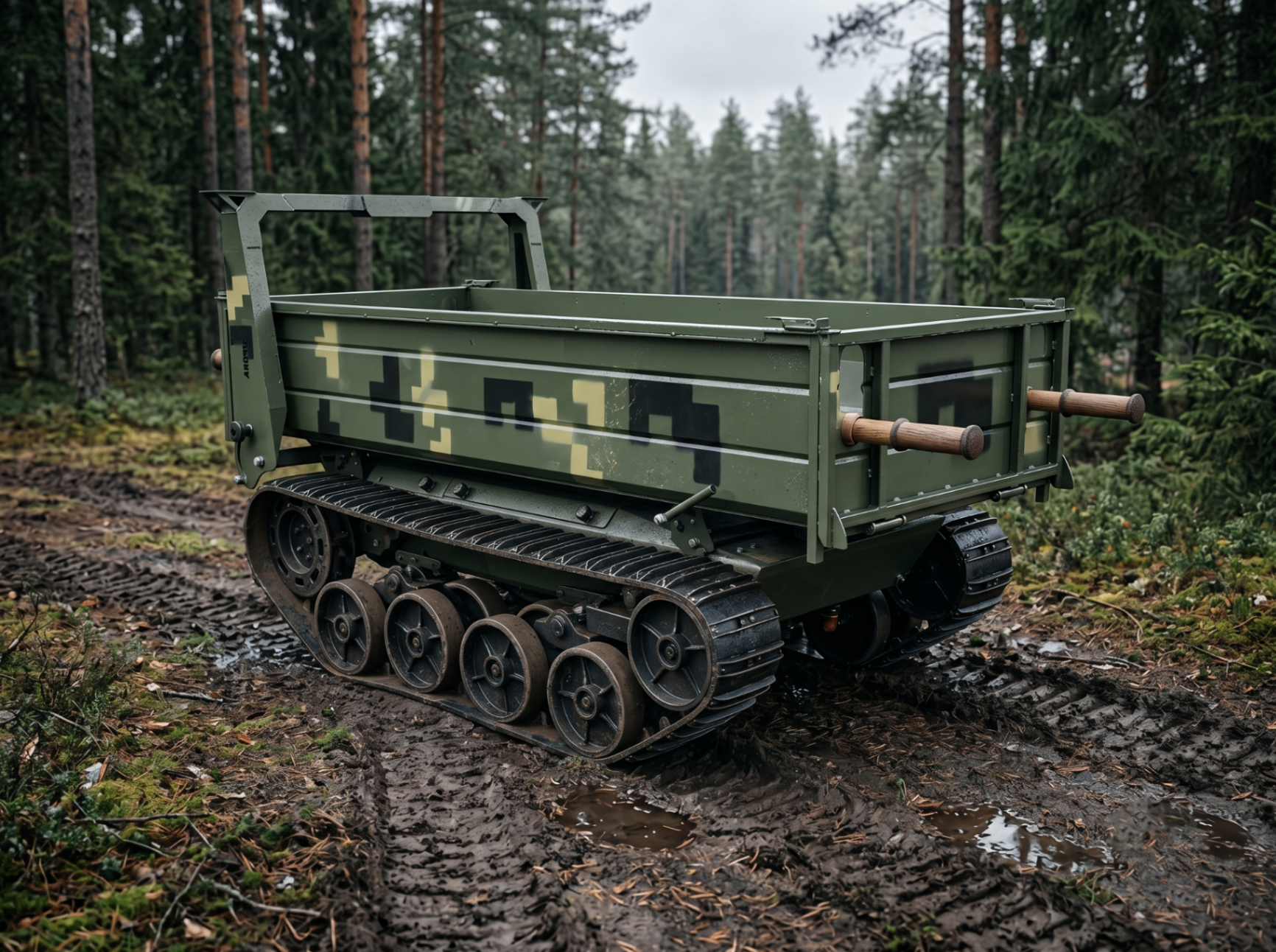

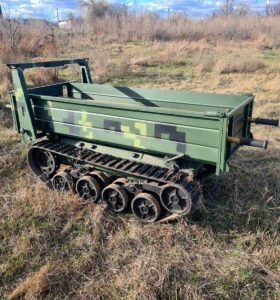

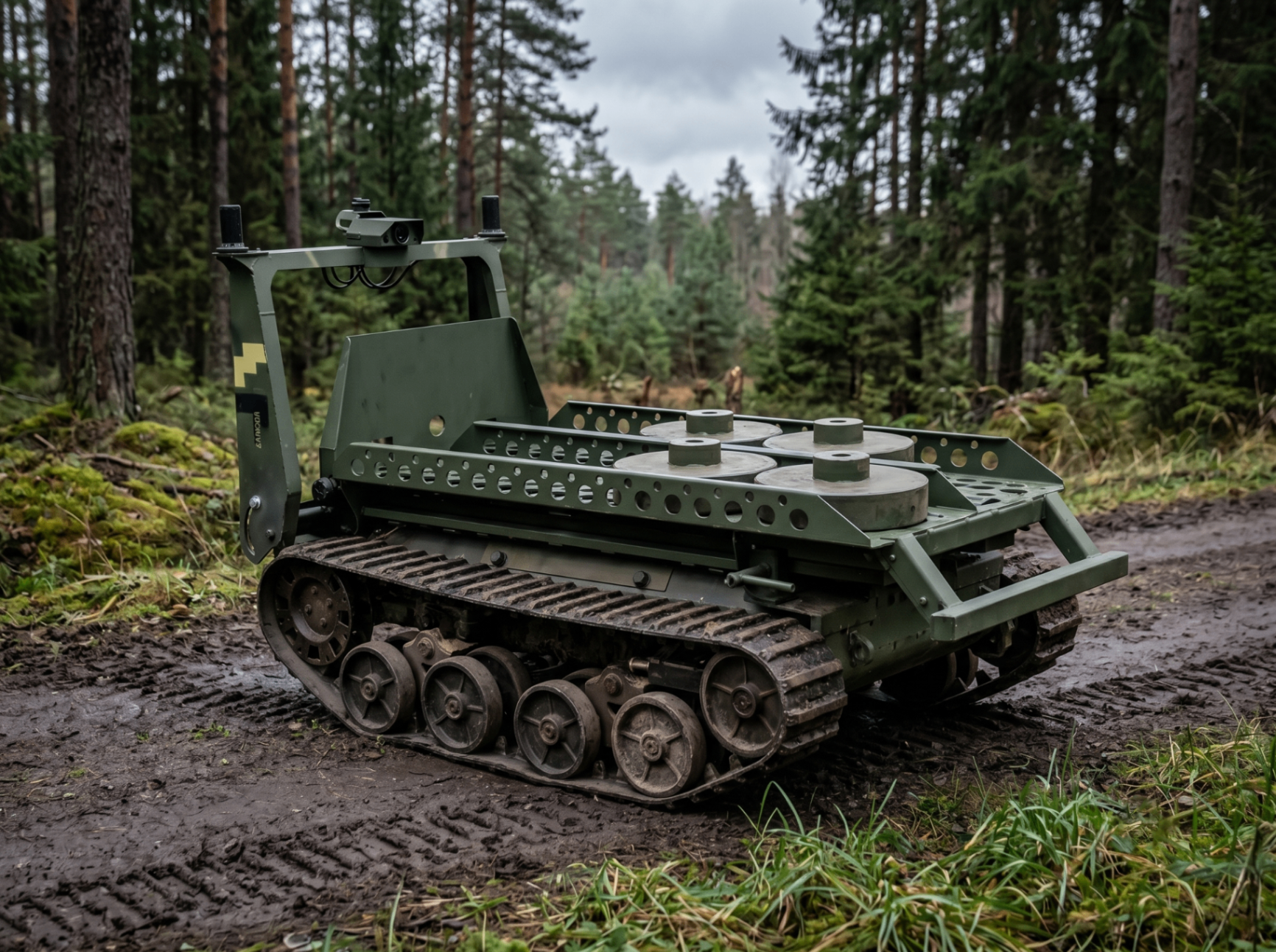

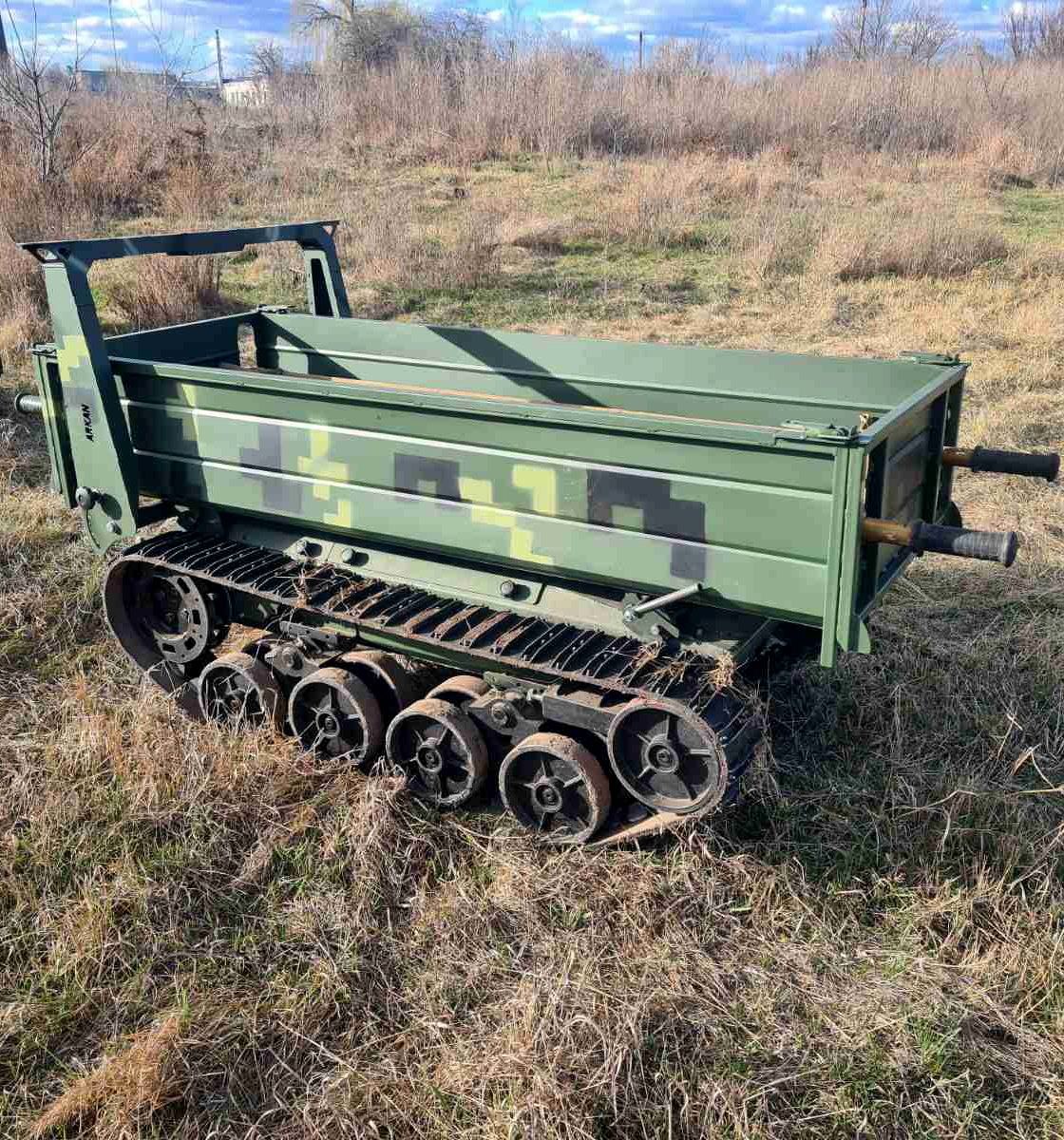

ARKAN UGV
Product descripton: ARKAN UGV by Drone Solutions
The ARKAN is a tracked unmanned ground vehicle (UGV) designed for transporting ammunition, supplies, and supporting casualty evacuation missions. It offers excellent mobility and maneuverability, operates for up to 8 hours with a 40 km operational range, and supports multiple control links, including Starlink, fiber-optic, radio, and LTE.
Key Advantages
- Tracked chassis for superior mobility over difficult terrain.
- Low-profile design reduces visual detection.
- Stable platform suitable for weapon integration.
- Designed to support safe casualty evacuation missions.
Technical specifications
| Specification | Value |
|---|---|
| Dimensions (L × W × H) | 1,500 × 880 × 1,105 mm |
| Weight | 270 kg |
| Maximum Speed | 10 km/h |
| Cruising Speed | 8 km/h |
| Maximum Payload | 220 kg |
| Operational Range | 40 km |
| Operating Time | Up to 8 hours (mixed duty cycle) |
| Control Range | Up to 9,000 m (Starlink; LTE available upon request) |
| Communication Systems | Starlink, fiber-optic, radio, LTE (optional) |
| Control Frequency | 433 MHz (other frequencies available upon request) |
| Antenna Mast | 10 m |
| Power System | Electric drive, total output 3 kW |
| Suspension | Independent bogie suspension for smooth operation |
| Standard Configuration | 8-mine laying module, cargo box, antenna mast, control case |
