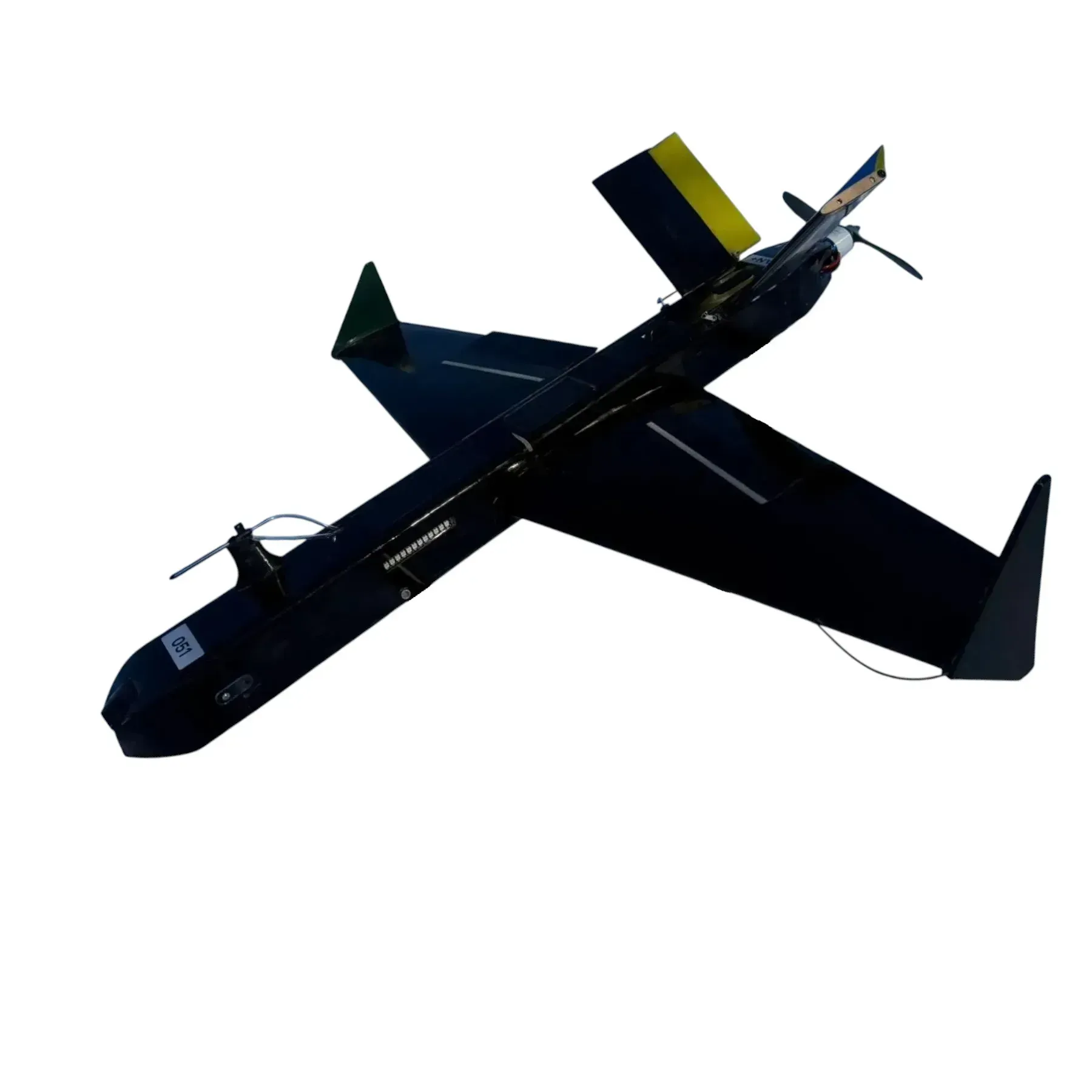

BATON INTERCEPTOR WING
Fixed-wing UAV for detection and interception of aerial targets
Product descripton: BATON INTERCEPTOR WING by eDrone
The ‘BATON INTERCEPTOR WING’ aircraft-type UAV is designed to carry out flight missions involving the detection and interception of aerial targets within a designated area.
The interceptor is designed to perform special missions at a range of at least 45 km, with a warhead weighing up to 750 g, and can reach a maximum speed of up to 300 km/h.
Camera configuration: available either with a standard (daylight) imaging system or with a thermal imaging camera (variant equipped with thermal imaging).
Technical specifications
| Specification | Details |
|---|---|
| Cruising speed, km/h | 120 |
| Maximum speed, km/h | 300 |
| Flight duration, min | 42 |
| Warhead mass, g | 700 |
| Final targeting | On request |
| Method of targeting | Manual |
| Camera type | Daylight + Thermal |
| Payload mass, g | 700 |
| Tactical range, km | 20 |
| Start type | Catapult |
| Intended use | Air defence interceptor |
| Camera angle of view | 125° |
| Engine type | Electric |
| Detection range of a human figure, km | 2 |
