Bayonet 250
Product descripton: Bayonet 250 by Greensea IQ

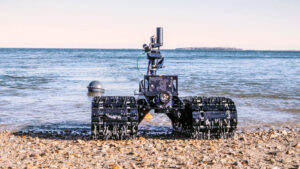

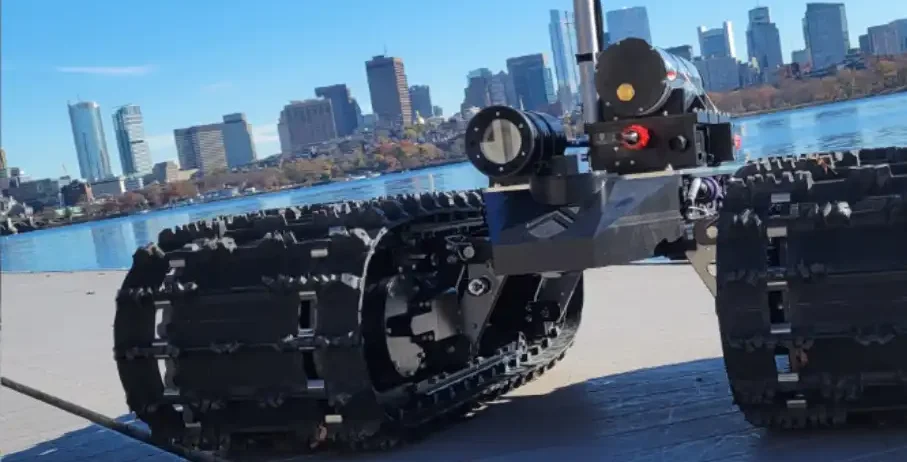

The Bayonet 250 is the all-around workhorse of the Bayonet series, designed to operate from the seafloor to the beachhead in harsh maritime environments where other systems cannot. It offers an optimal balance between size, mobility, logistics, and payload capacity, making it suitable for a wide range of defense and maritime missions.
The Bayonet 250 can be assembled in the field without tools while maintaining two-person portability. Its larger footprint and heavier design enable it to carry additional payloads, perform more demanding operations, and operate in heavier weather and surf conditions. The vehicle can be rapidly mobilized from a pickup truck, providing a practical and reliable solution for autonomous underwater ground operations.
Technical specifications
| Specification | Value |
|---|---|
| Vehicle Type | Autonomous Underwater Ground Vehicle (AUGV) |
| Dimensions | 48 × 48 × 12 in (121.9 × 121.9 × 38.1 cm) |
| Ground Clearance | 15 in (38.1 cm) from ground to deck |
| Open Deck Space | 26 × 12 in (66.0 × 30.5 cm) |
| Weight (with Batteries) | 450 lb (204 kg) |
| Battery | Lithium Iron, 48 VDC |
| Platform | Greensea Core Platform |
| Processor | Greensea IQNS |
| Maximum Depth | 100 m |
| Range (Dry / Wet) | 6 nmi / 8 nmi |
| Duration | Approx. 4 hours |
| Maximum Speed | Up to 1 knot |
| Deck Capacity | 200 lb (91 kg) continuous |
| Navigation | GPS, GPS-denied inertial navigation, Greensea IQ IQNS with DVL |
| Edge Processing & Perception | Greensea IQ IQNS |
| Software Platform | OPENSEA |
| Command & Control Software | Greensea IQ Workspace user interface |
| Use Case | All-around workhorse |
Key Features
- Amphibious / surf zone capable
- 100 m depth rated
- Modular components for simplified logistics
- Large deck space for payload and mission flexibility
- Advanced navigation with Fiber Optic Gyroscope (FOG)
- Field-swappable battery packs (one per pontoon)
- Obstacle avoidance
- Mission autonomy
- Real-time or unsupervised operation
- Handheld tablet user interface
- Graphical mission planning
- Interoperability with defense MCM and autonomy packages
- Support for ATR and AI/ML libraries
- Remote-triggered recovery system
Interface & Electrical
- 24 VDC, 250 W power
- 6 × Gigabit Ethernet ports
Sensor Packages
Standard
- Camera
- Forward-looking sonar
- GPS (Advanced Navigation)
- IP Radio – 70 Mbps (approx.), line-of-sight range: 100 m
Optional
- Acoustic communications (ACOMMS)
- RTK GPS
- Magnetometer
- EM pulse induction sled
- Sub-bottom profiler
