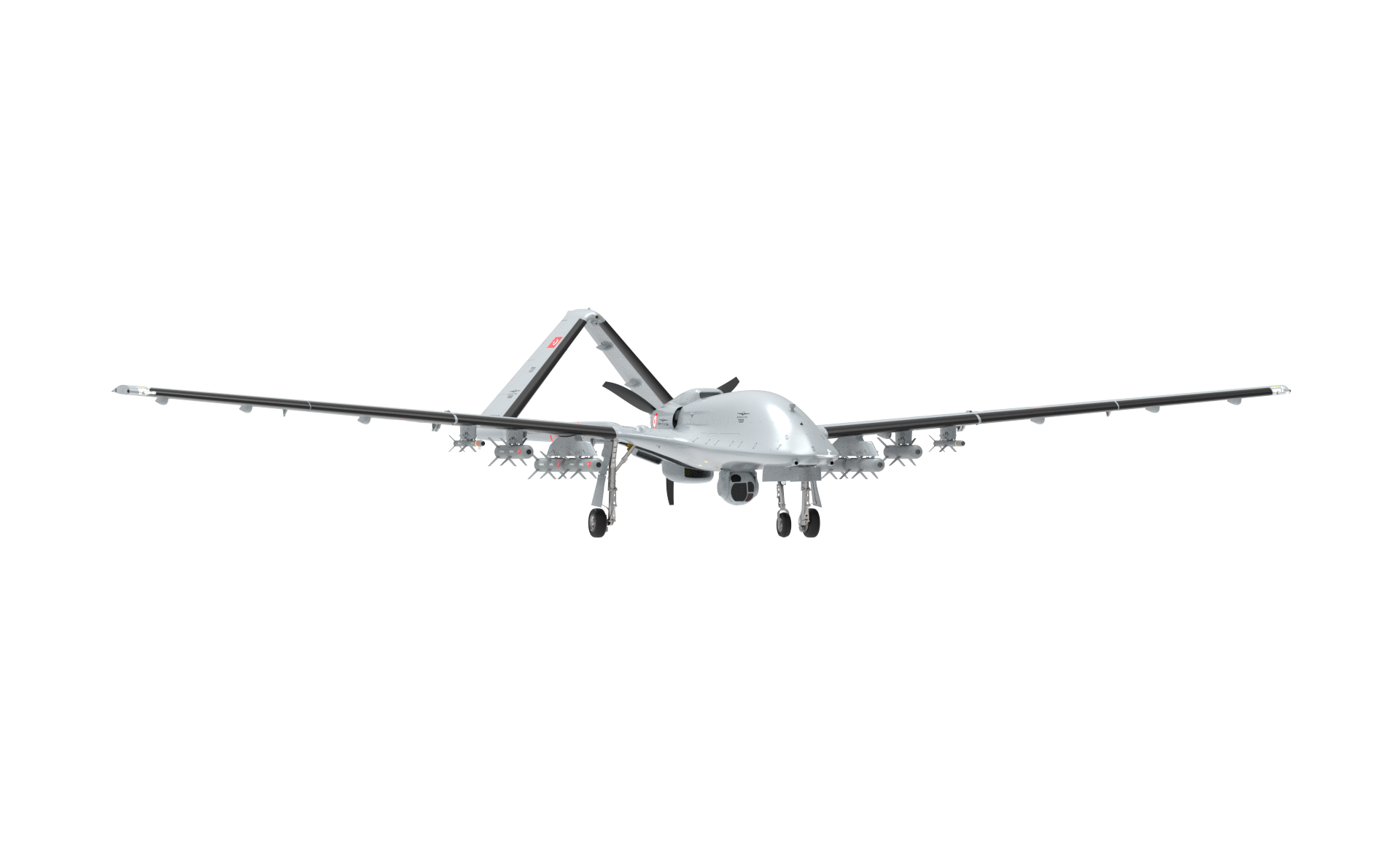

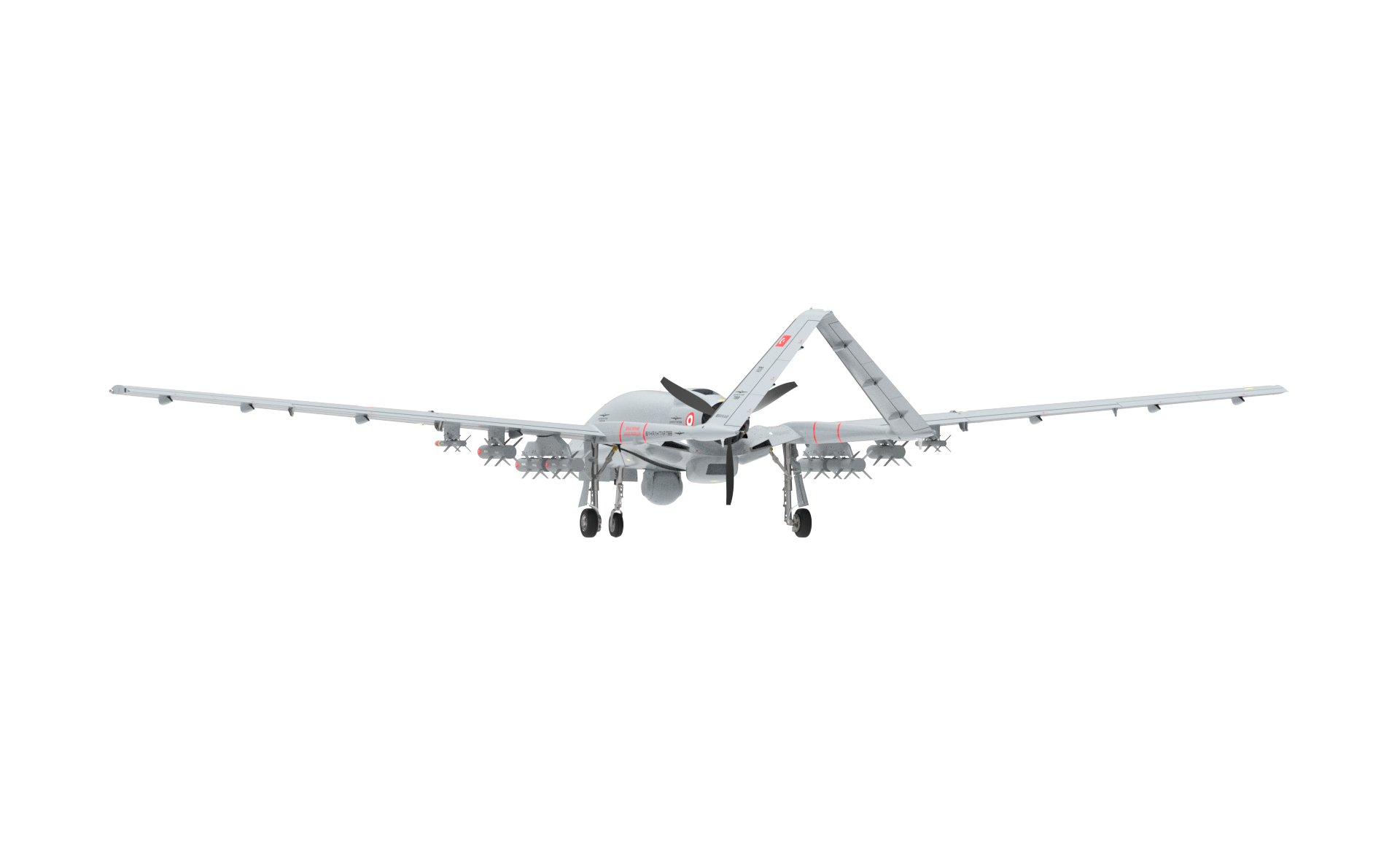

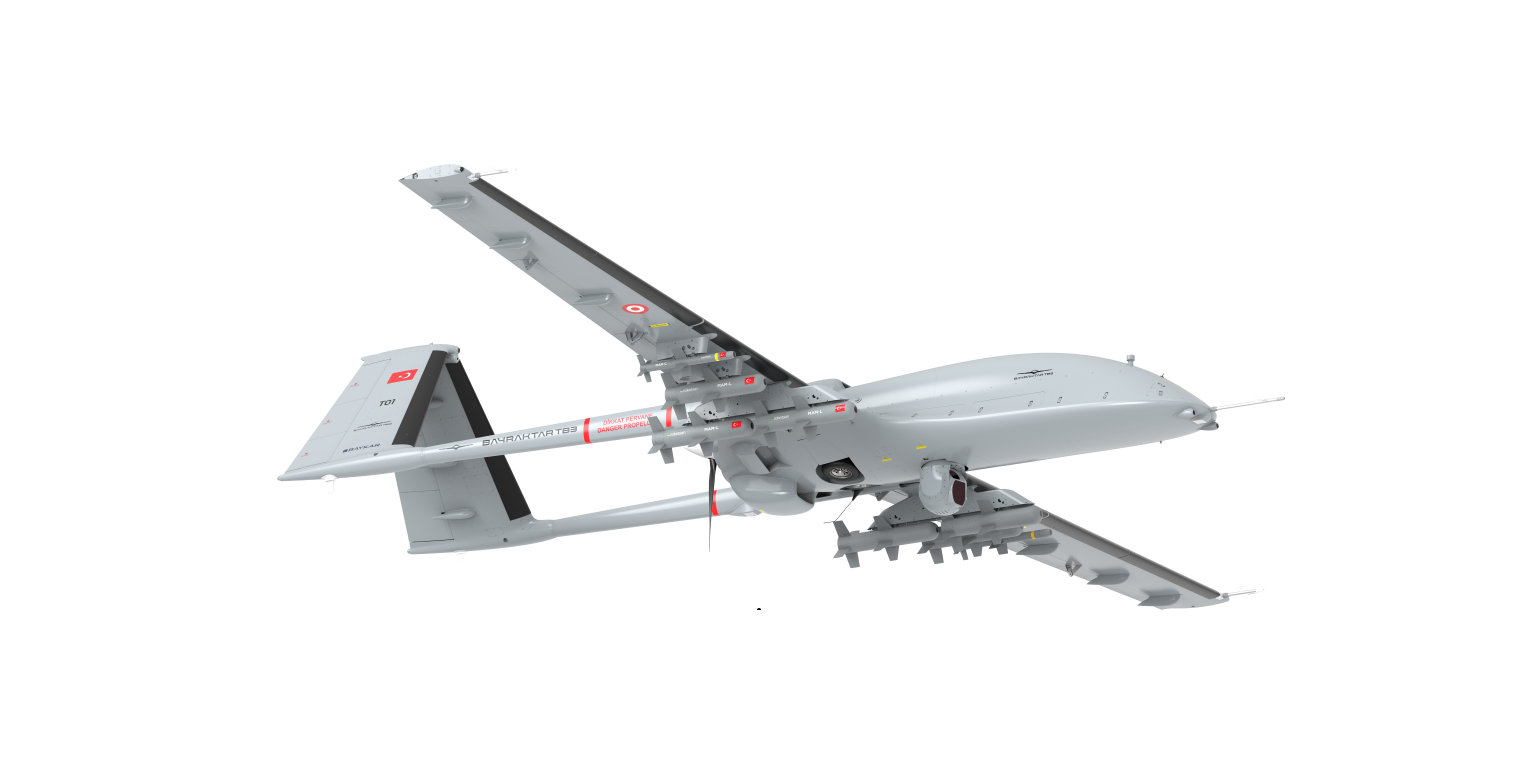

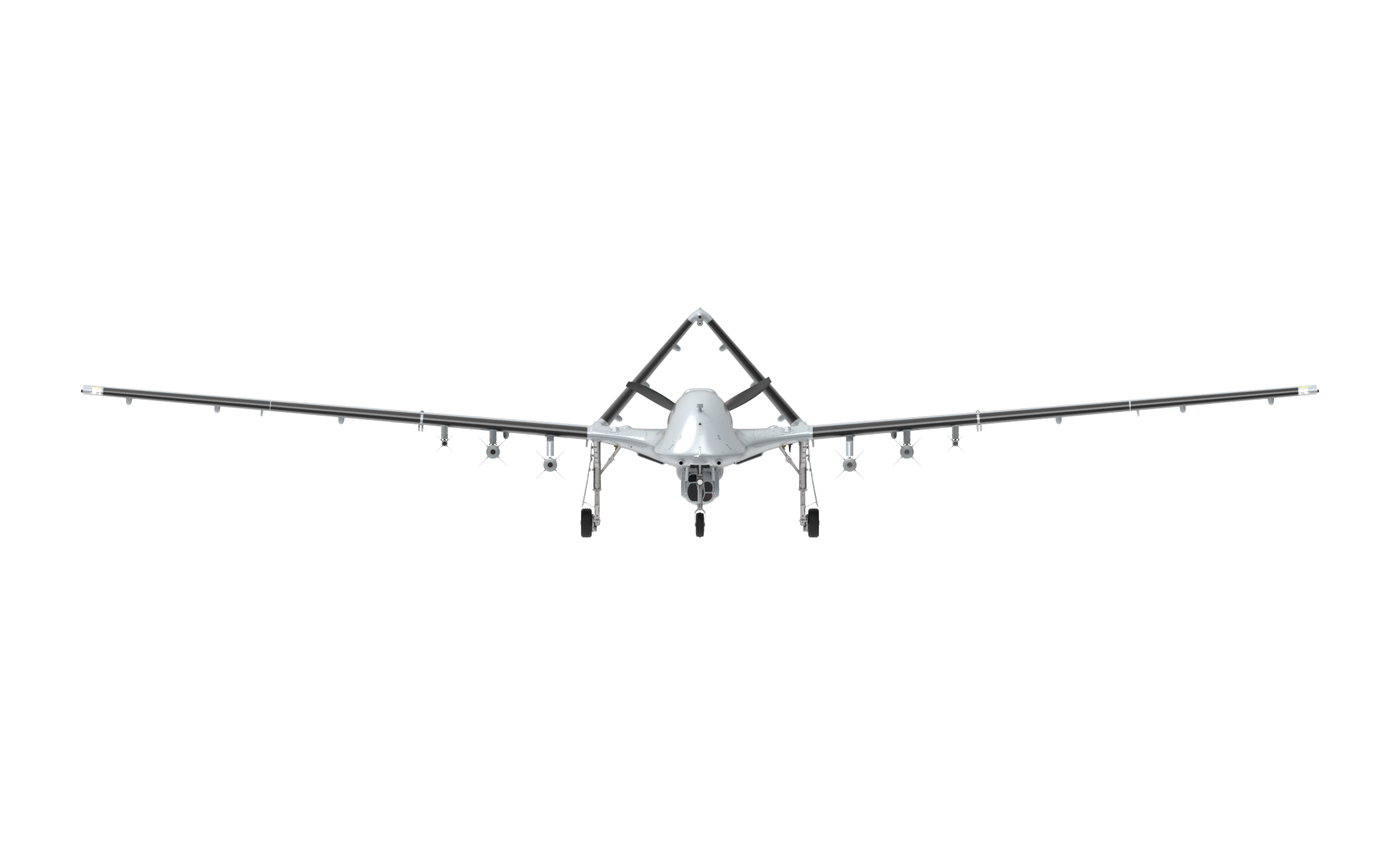

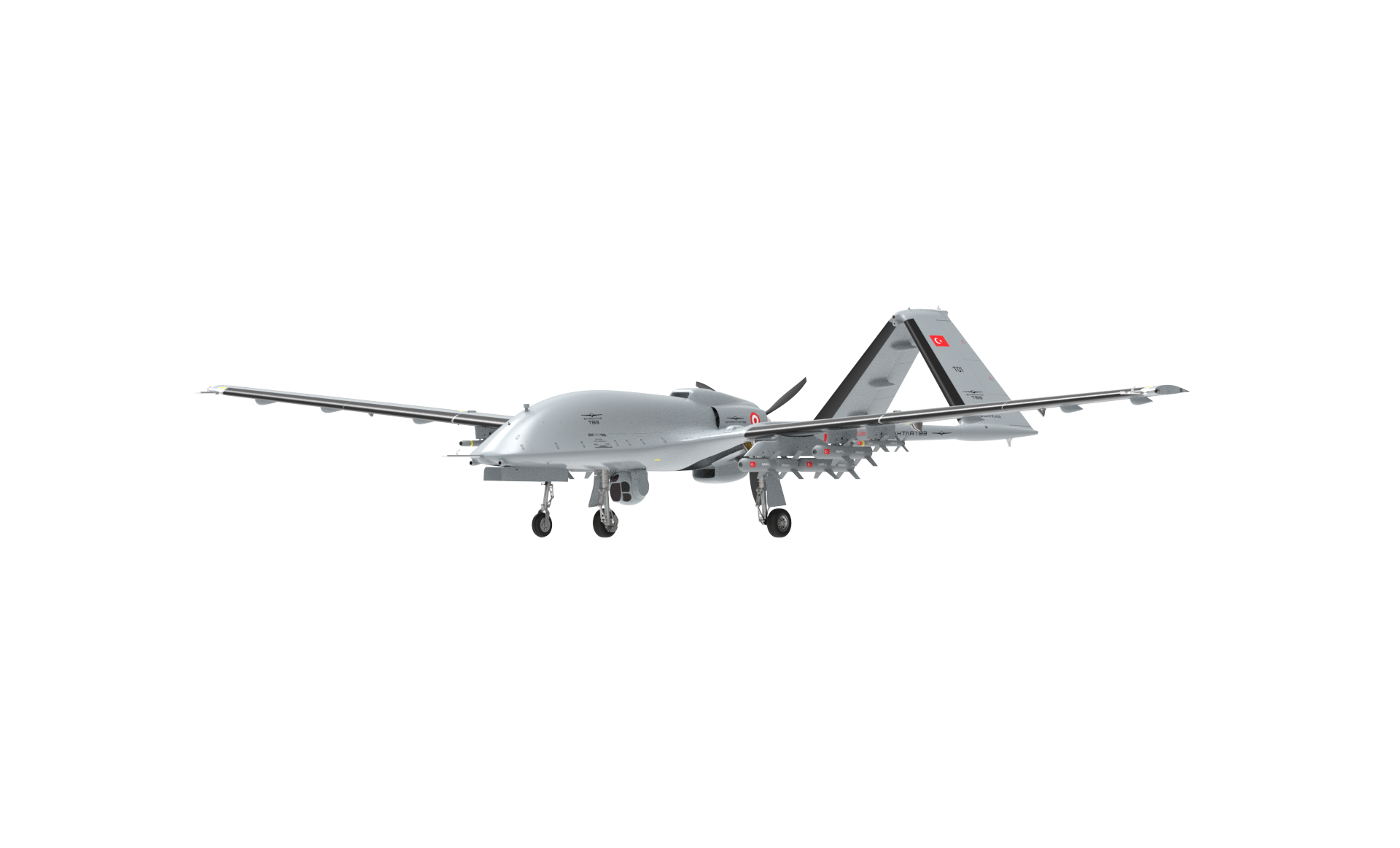

Bayraktar TB3
Product descripton: Bayraktar TB3 by Baykar
Bayraktar TB3 is designed for multi-role operations including intelligence, surveillance, reconnaissance (ISR), and precision strike missions. It is optimized for deployment from short-runway aircraft carriers, enabling naval aviation UAV operations with extended operational reach.
Operational Concept
The platform features fully autonomous takeoff, landing, and flight control, including taxiing and cruise phases. Its advanced communication systems enable both Line of Sight (LOS) and Beyond Line of Sight (BLOS) operations, supporting long-range mission profiles.
Design & Capabilities
TB3 is engineered for maritime and land-based operations, combining long endurance with high payload capacity. Its wing-mounted hardpoints allow integration of smart munitions, including laser-guided, INS/GPS-guided, and infrared-guided weapons, as well as mini cruise missiles.
In addition to strike capabilities, the UAV supports advanced ISR payloads such as electro-optical/infrared systems, surveillance radar, and electronic intelligence (ELINT) modules.
Its aerodynamic design and turbodiesel engine provide efficient cruise performance and extended mission duration exceeding 24 hours.
Key Advantages
Carrier-based autonomous takeoff and landing capability
Long-endurance operational profile (24+ hours)
Dual LOS & BLOS communication system
Multi-role ISR and strike capability
High payload flexibility for diverse mission sets
Optimized for naval and expeditionary operations
Technical specifications
| Parameter | Value / Description |
|---|---|
| UAV Name | Bayraktar TB3 |
| Class | Carrier-capable UCAV |
| Length | 8.35 m |
| Wingspan | 14 m |
| Height | 2.6 m |
| Maximum Takeoff Weight | 1600 kg (may vary for naval version) |
| Payload Capacity | 280 kg |
| Endurance | 24+ hours |
| Operational Altitude | 20,000 ft |
| Service Ceiling | 25,000 ft |
| Cruise Speed | 110–130 KTAS |
| Power Plant | 170 hp turbodiesel engine |
| Control Modes | Fully autonomous (takeoff, landing, cruise, taxi) |
| Communication Systems | LOS & BLOS |
| Deployment Platforms | Land and maritime (aircraft carriers with short runway) |
| Payload Types (Strike) | Laser-guided, INS/GPS-guided, IR-guided munitions, mini cruise missiles |
| Payload Types (ISR) | EO/IR, surveillance radar, ELINT |
