BLACKBIRD WING 13
FPV Quadcopter (Standalone UAV, Ground Control Station & Fiber-Optic Configuration)
Product descripton: BLACKBIRD WING 13 by BLACKBIRD

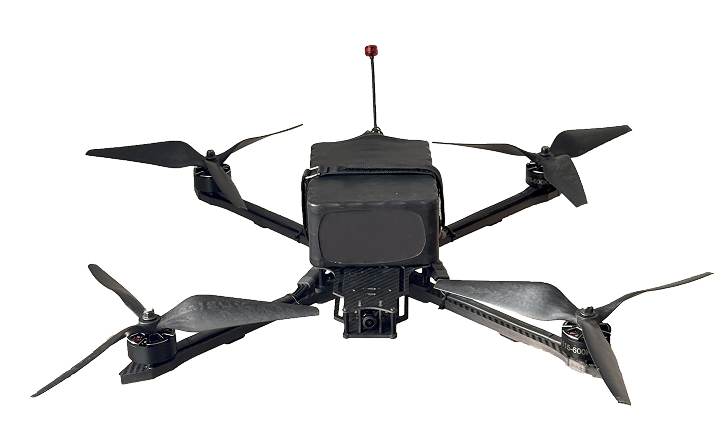

The BLACKBIRD WING 13 is a heavy-lift tactical FPV quadcopter engineered for long-range strike missions requiring high payload capacity and extended endurance. Its 13-inch platform combines powerful propulsion, robust communications, and rapid deployment, making it suitable for demanding battlefield operations. The system is available as a standalone UAV, a Ground Control Station (GCS) configuration, or a fiber-optic configuration for secure, jamming-resistant command and video transmission.
Technical specifications
Specifications (UAV)
| Parameter | Specification |
|---|---|
| UAV Type | FPV Quadcopter |
| Takeoff Method | Vertical (VTOL) |
| Propulsion | Electric, brushless motors |
| Primary Missions | Heavy-payload tactical strike |
| Frame Size | 13 in |
| Weight | 2,250 g |
| Dimensions (L × W × H) | 480 × 480 × 45 mm (without propellers, battery, and antenna) |
| Payload Capacity | Up to 7 kg |
| Operating Range | 15–25 km |
| Communication Range | 15–25 km |
| Maximum Speed (without payload) | 120 km/h |
| Maximum Speed (with payload) | 115 km/h |
| Flight Time | Up to 25 min (with 8S3P2 battery and payload) |
| Maximum Flight Altitude | Up to 2 km |
| Deployment / Packing Time | Approximately 2 min each |
| Motors | 4214, 660 KV |
| Propellers | HQ 13×9×3 V2 |
| Battery Options | 6S3P / 6S8P |
| Flight Controller | F405 + 80A ESC |
| Control System | ELRS / TBS |
| Control Frequency Range | 150–1020 MHz, 1900–2700 MHz |
| Video Transmitter | 2.5 W |
| Video Frequency Range | 1.1–7 GHz** |
| Camera | Caddx Ratel Pro |
| Camera Resolution | ≥1,200 TVL |
| Antenna | RUSHFPV Cherry |
Ground Control Station (GCS) Configuration
| Component | Description |
|---|---|
| FPV UAV | BLACKBIRD WING 13 |
| Remote Unit | Included |
| Control Cable | 25 m |
| Control Antenna | Yagi–Uda |
| Video Antenna (5.8 GHz) | 10/16-turn Helix |
| Video Antenna (1.3 GHz) | Helix 1.3 GHz |
| FPV Goggles | 1 unit |
| Remote Controller | 1 unit |
Fiber-Optic Configuration
| Parameter | Specification |
|---|---|
| Communication Type | Fiber-optic control and video link |
| Fiber Length Options | 10 / 15 / 20 km (±3%) |
| Operational Control Distance | Up to 13.5 km |
| Fiber Type | G.657.A2 |
| Video Signal Wavelength | 1310 nm |
| Control Signal Wavelength | 1550 nm |
| Video Transmission Latency | ≤50 ms |
| Maximum Speed | 70 km/h |
| Deployment Time | <7 min |
| Coil Diameter | 131.3 mm (±3%) |
| System Weight | ≤1.4 kg |

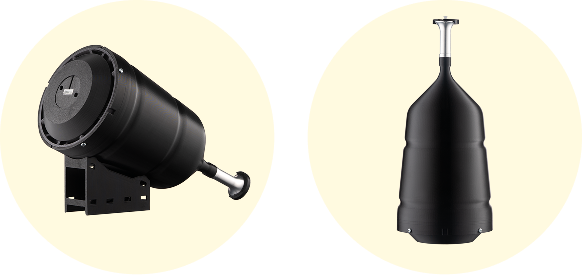

Fiber-Optic Configuration Components
| Component | Description |
|---|---|
| FPV UAV | BLACKBIRD WING 13 |
| Fiber-Optic Communication Module | 15 km (standard configuration) |
| Product Passport | Included |
| Operating Manual | Included |
| Transport Container | Included |
