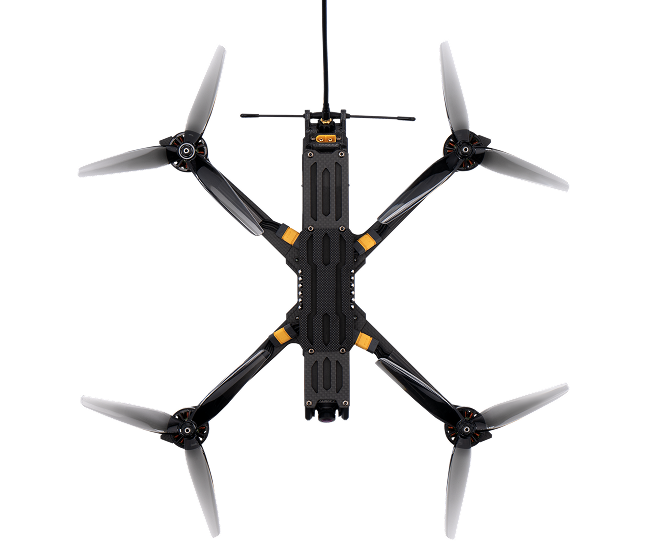

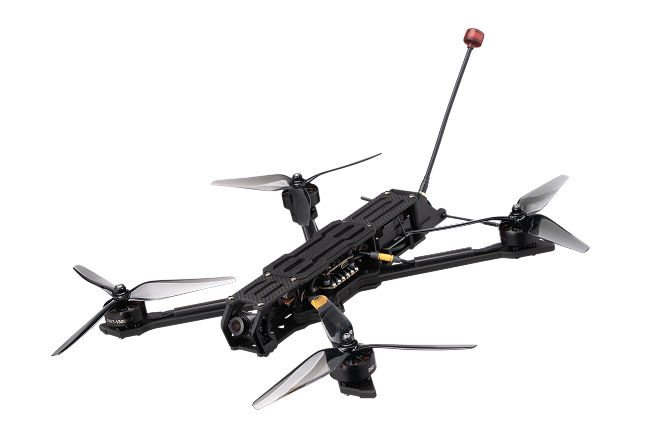

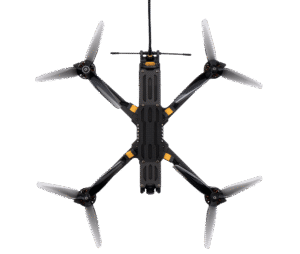

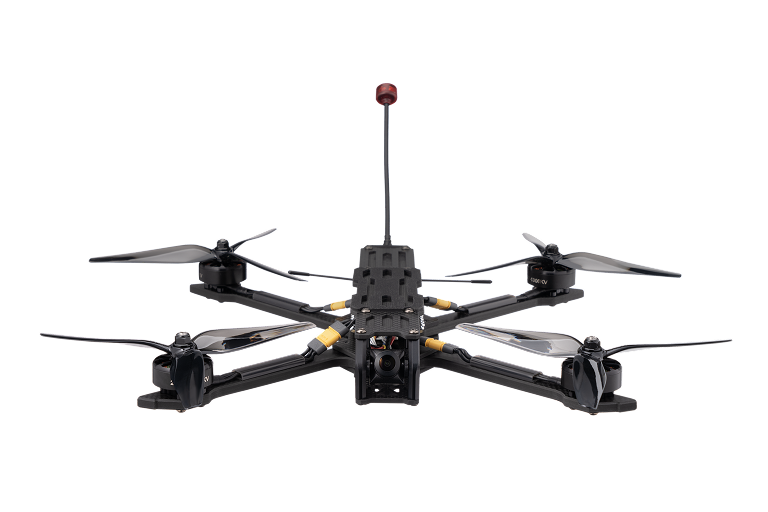

BLACKBIRD WING 7
FPV Quadcopter (Standalone UAV & Ground Control Station Configuration)
Product descripton: BLACKBIRD WING 7 by BLACKBIRD
The BLACKBIRD WING 7 is a tactical electric FPV quadcopter designed for precision strike and reconnaissance missions. Featuring a lightweight 7-inch platform, long-range analog video transmission, and configurable control frequencies, the system delivers high mobility, reliable communications, and operational flexibility. It is available as a standalone UAV or as a complete system with a Ground Control Station (GCS) for rapid field deployment.
Technical specifications
UAV
| Parameter | Specification |
|---|---|
| UAV Type | FPV Quadcopter |
| Takeoff Method | Vertical (VTOL) |
| Propulsion | Electric, brushless motors |
| Primary Missions | Tactical strike and reconnaissance |
| Frame Size | 7 in |
| Weight | 600 g |
| Dimensions (L × W × H) | 226 × 267 × 31 mm (without propellers, battery, and antenna) |
| Payload Capacity | Up to 1.5 kg* |
| Flight Time | Up to 15 min |
| Tactical Range | Up to 16 km |
| Cruising Speed | 125 km/h |
| Maximum Flight Altitude | Up to 3,000 m |
| Motors | 2807, 1300 KV |
| Propellers | HQ 7×3.5×3 |
| Battery | 6S2P, from 8,000 mAh |
| Control System | ELRS / TBS |
| Control Frequency Range | 150–1020 MHz, 1900–2700 MHz* |
| Video Transmission | Analog |
| Video Transmitter | iFlight Blitz |
| Video Frequency Bands | 5.8 / 4.9 / 3.3 / 1.2 GHz (overall supported range: 1.1–7 GHz**) |
| Camera | RUNCAM Phoenix 2 SP |
| Camera Resolution | ≥1,000 TVL |
| Additional Equipment | Firmware update system |
Ground Control Station (GCS) Configuration
| Component | Description |
|---|---|
| FPV UAV | BLACKBIRD WING 7 |
| Remote Unit | Included |
| Control Cable | 25 m |
| Control Antenna | Yagi–Uda |
| Video Antenna (5.8 GHz) | 10/16-turn Helix |
| Video Antenna (1.3 GHz) | Helix 1.3 GHz |
| FPV Goggles | 1 unit |
| Remote Controller | 1 unit |
