Canoe 1 USV
Collapsible unpowered trimaran USV
Product descripton: Canoe 1 USV by AquaHelpers

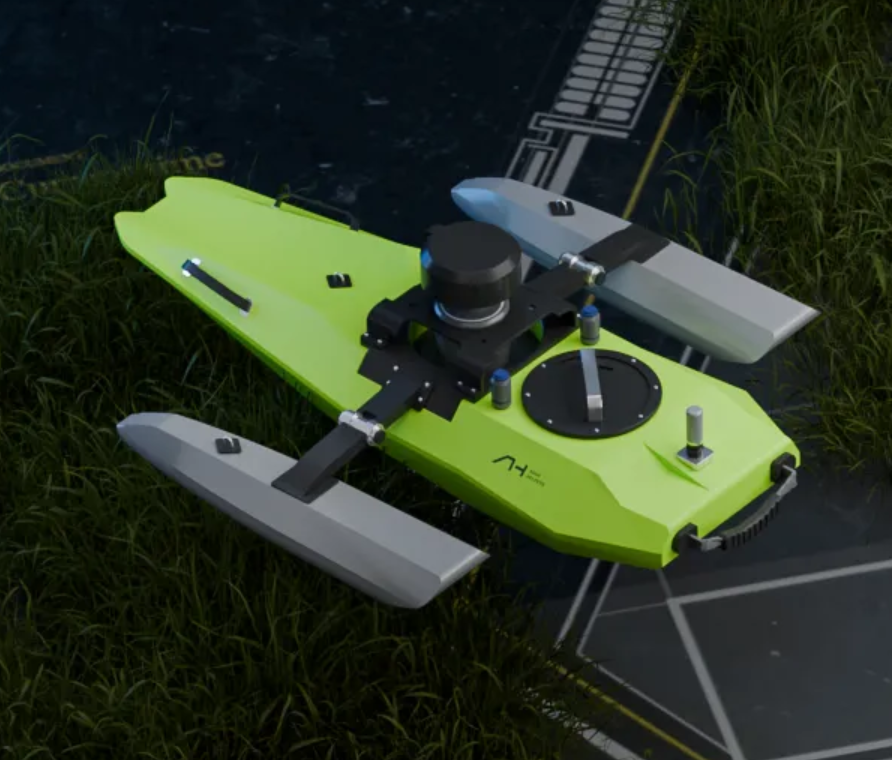

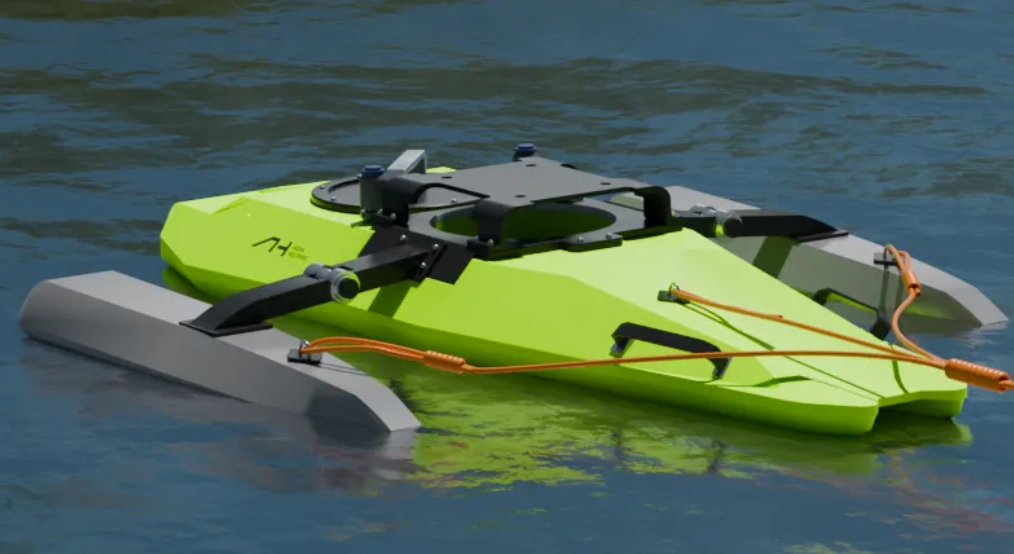

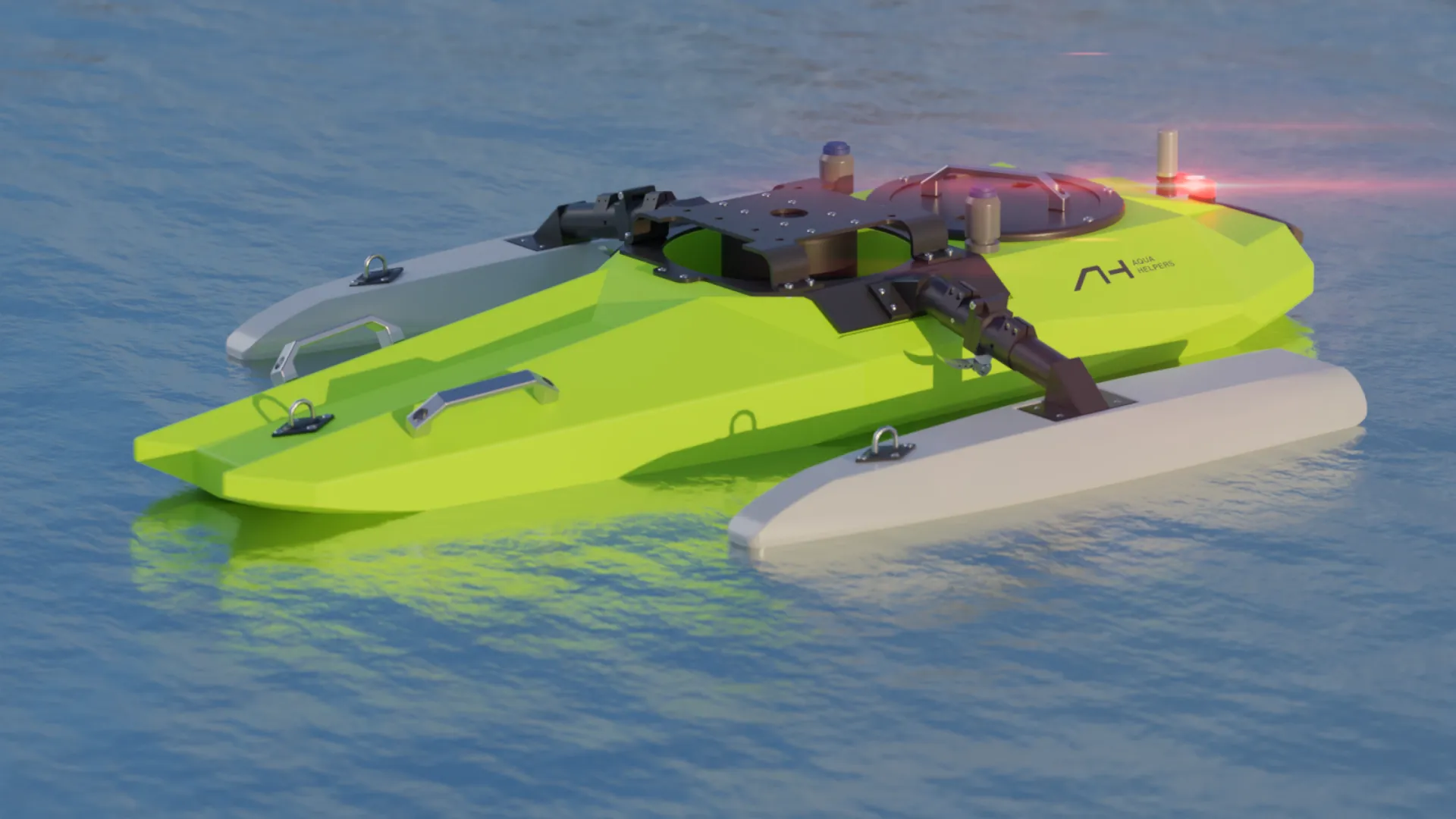

The Canoe 1 is a lightweight, collapsible unpowered USV developed for hydrographic surveying and river flow measurements using ADCP instruments. Its trimaran hull provides excellent stability and vibration damping, while the extra-large through-hole accommodates most walk-through ADCPs available on the market. Designed for operation in fast-flowing rivers, the platform enables accurate measurements with minimal deployment effort.
Key Features
- Unpowered measurement platform

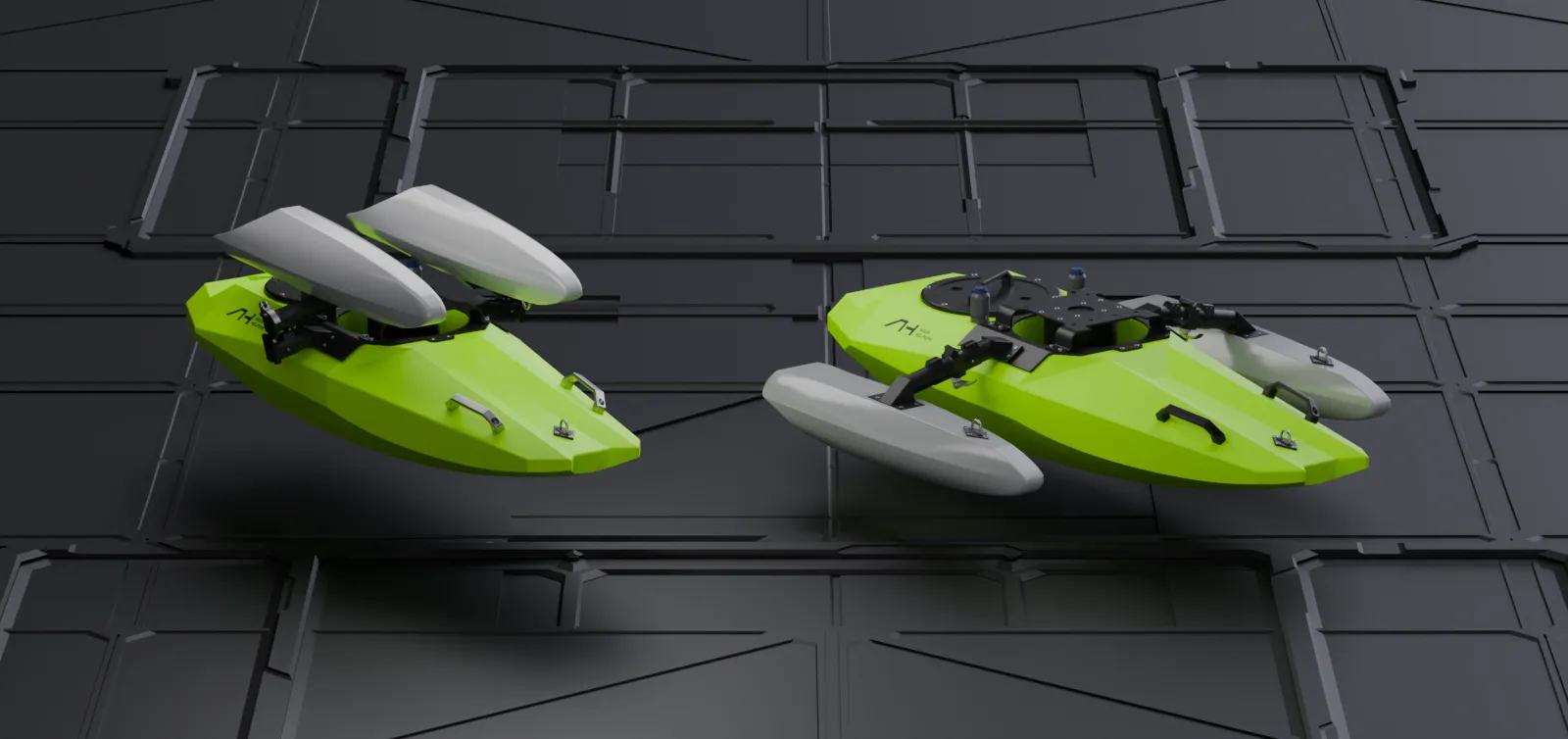

- Collapsible trimaran hull
- Lightweight and portable design
- Foldable for easy transportation
- Polyethylene and aluminum alloy construction
- Stable three-hull configuration
- Excellent vibration damping
- Designed for ADCP deployment
- Compatible with most walk-through ADCPs
- Extra-large through-hole
- Integrated digital radio communication
- GPS installation platform
- Supports positioning and orientation instruments
- Suitable for water flow velocities of 2.5–5 m/s
- IP66 waterproof protection
Technical specifications
| Specification | Canoe 1 |
|---|---|
| Type | Collapsible trimaran |
| Hull Material | Polyethylene (PE), aluminum alloy |
| Dimensions (Unfolded) | 1,210 × 910 × 238 mm |
| Dimensions (Folded) | 1,210 × 550 × 395 mm |
| Hull Weight | 11 kg |
| Applicable Instruments | Most walk-through ADCPs |
| Maximum Water Flow | 7 m/s |
| Recommended Water Flow | 2.5–5 m/s |
| Battery | AA battery |
| Communication Frequency | 2.4 GHz |
| Communication Range | ≥1.2 km |
| Waterproof Rating | IP66 |
