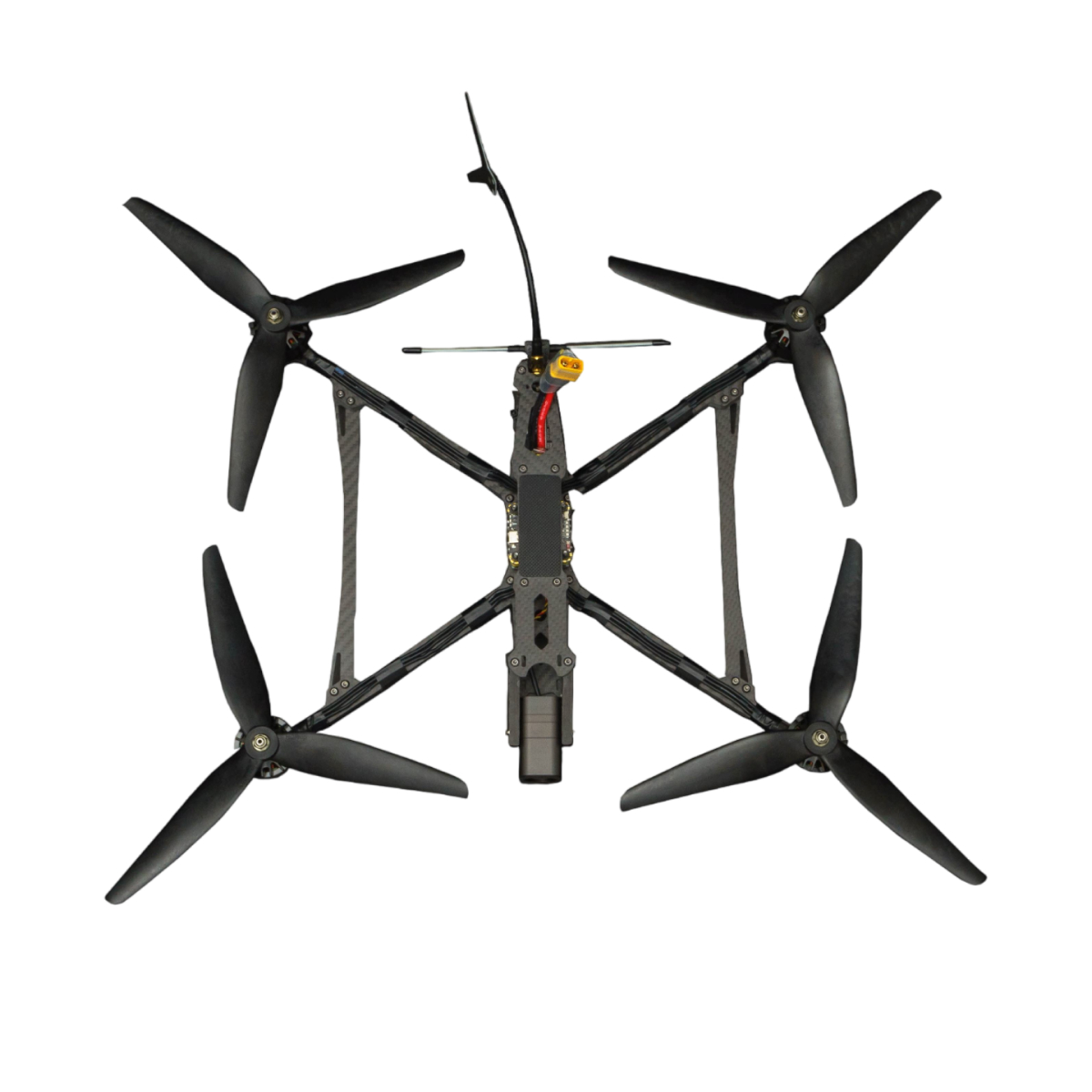

Courier Combat 10
Product descripton: Courier Combat 10 by 3DTech
The Courier Combat 10 is a 10-inch FPV UAV engineered for tactical strike operations requiring increased payload capacity and flexible mission configurations. Supporting ELRS or TBS control links, multi-band analog video transmission, and optional night or thermal imaging, it is designed to operate effectively in diverse battlefield environments. Its carbon-fiber airframe, powerful propulsion system, and configurable avionics enable reliable payload delivery, while optional INav stabilization enhances flight control and mission performance.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 10 in (carbon fiber) |
| Payload Capacity | 3.5 kg |
| Flight Endurance | 15 min |
| Tactical Range | 15 km |
| Operating Altitude | 50–1,000 m |
| Cruising Speed | 70 km/h |
| Control Type | ELRS / TBS |
| Control Frequencies | 390–510 MHz / 720–1020 MHz |
| Control Link | ELRS |
| Video Transmission | Analog (Day / Night / Thermal) |
| Video Channel Frequencies | 4.9–6.1 GHz / 3.3 GHz / 1.3 GHz* |
| Video Transmitter (VTX) | 4.9 / 5.8 / 6.1 GHz, 2 W (optional 6.1 GHz, 2.5 W) |
| Camera | Daytime 1200 TVL; optional Night or Thermal camera |
| Power Supply | 6S3P 13,500 mAh battery |
| Flight Controller / ESC | F405 / 60A |
| Motors | 3115 900KV |
| Video Antenna | 5.8 GHz RHCP (Long) |
| Control Antenna | 915 MHz; optional multi-band (tunable to different frequencies) |
| Propellers | 1050 |
| Straps | 2 |
| Recommended Battery | Li-Ion 6S2P 12,600 mAh or 8,400 mAh (not included) |
Additional Features
- Multi-band control antenna
- Adapted FailSafe
- 6-band ELRS firmware with custom frequency option
- PID and filtering optimized for payload weight
- Remote VTX power control
- INav with stabilization and altitude hold mode
Optional Equipment
- Initiation Board v1 (2 fuses, contact sensor, self-activation system)
- Initiation Board v2 (remote activation)
- Night camera
- Analog thermal camera
- Payload drop system
- Rotating camera
- Antennas for custom frequencies
