Hunter USV
Compact autonomous catamaran USV
Product descripton: Hunter USV by AquaHelpers

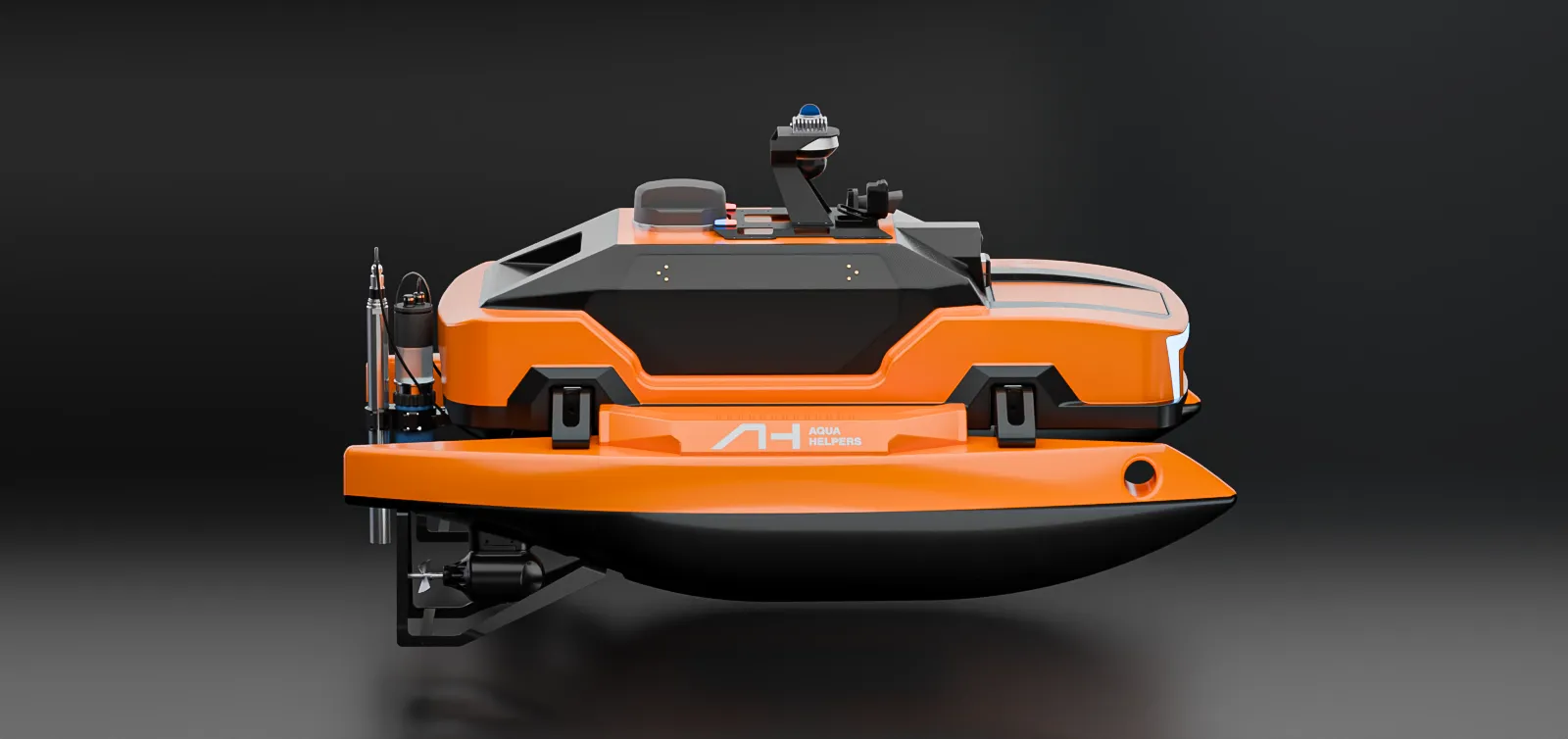

The Hunter USV is a lightweight carbon fiber unmanned surface vehicle designed for autonomous water operations in lakes, rivers, reservoirs, and coastal environments. Featuring a catamaran hull, water-jet propulsion, autonomous navigation, obstacle avoidance, and long-endurance lithium batteries, it supports a wide range of payloads for surveying, inspection, monitoring, and other professional applications.
Key Features
- Carbon fiber catamaran hull
- Lightweight design
- IP65 dustproof and waterproof protection
- Up to 8 hours of endurance

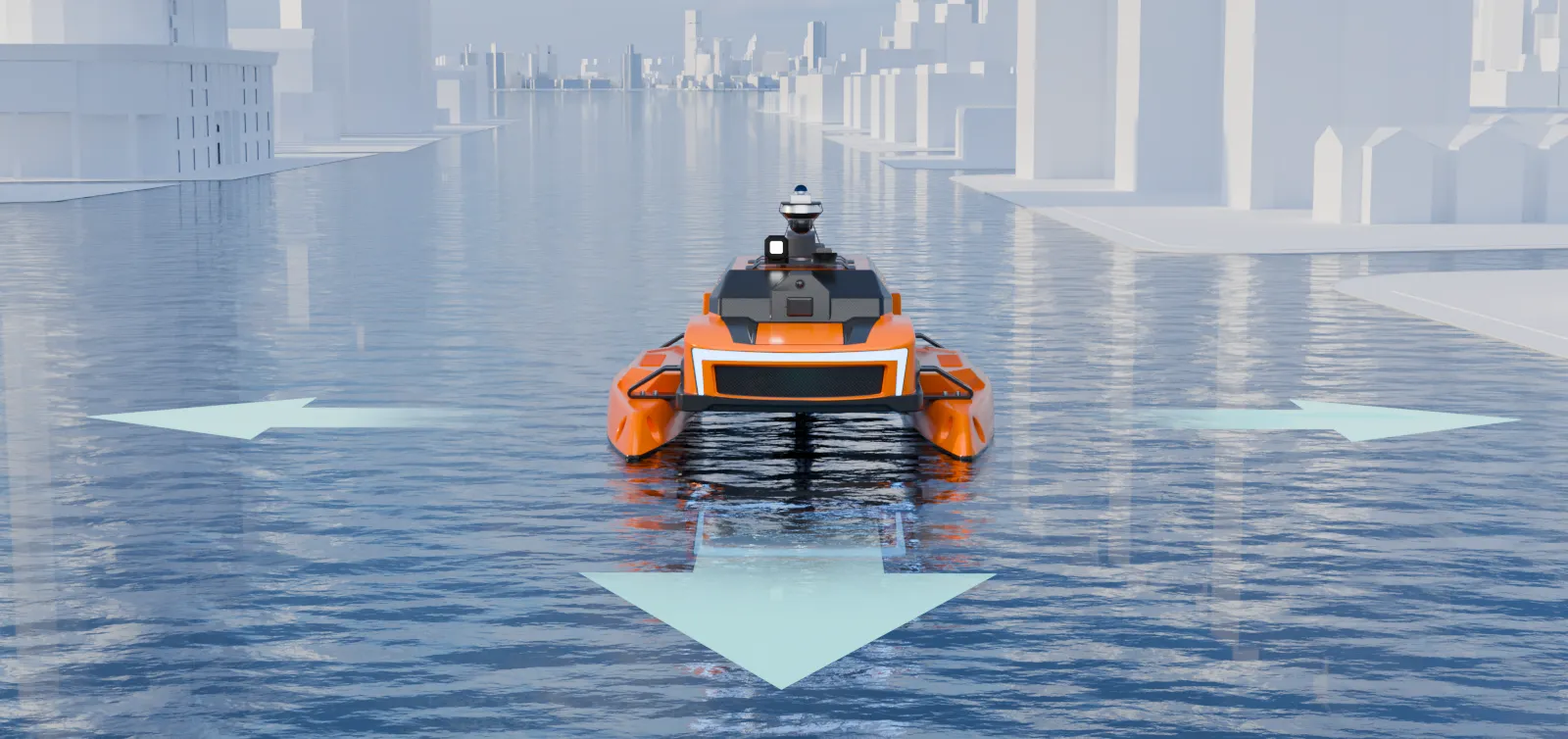

- Autonomous navigation

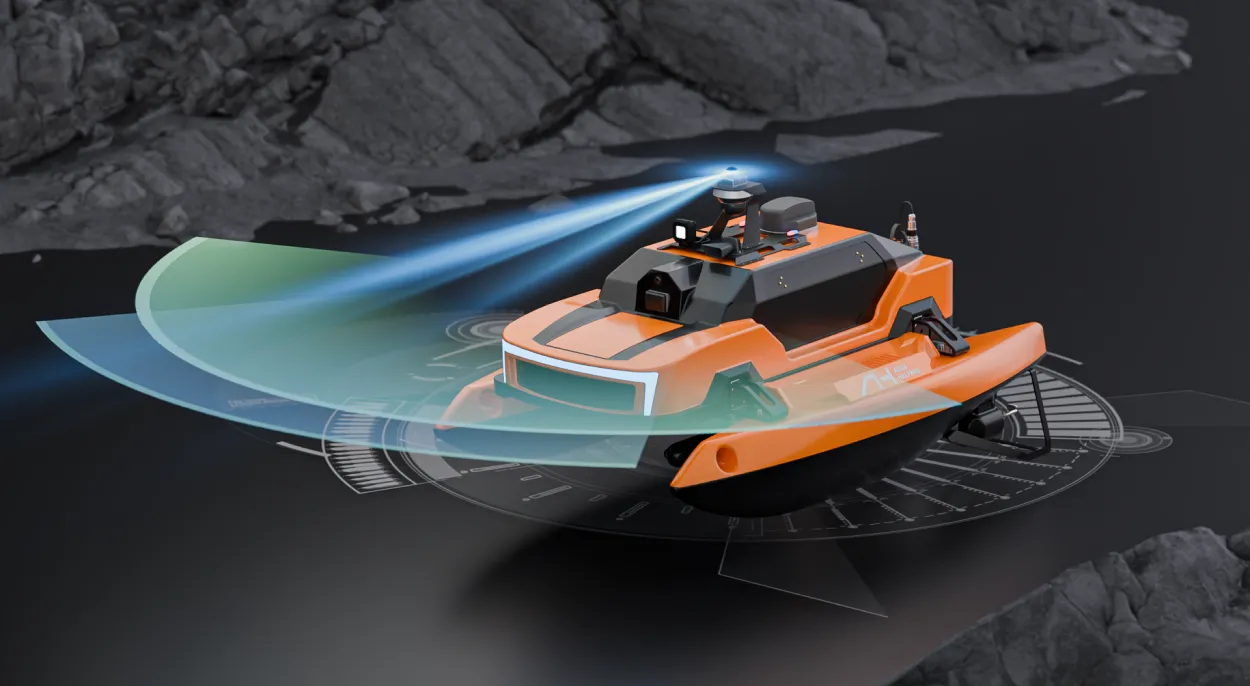

- Automatic obstacle avoidance
- Automatic return function
- Remote operation
- Environmental awareness

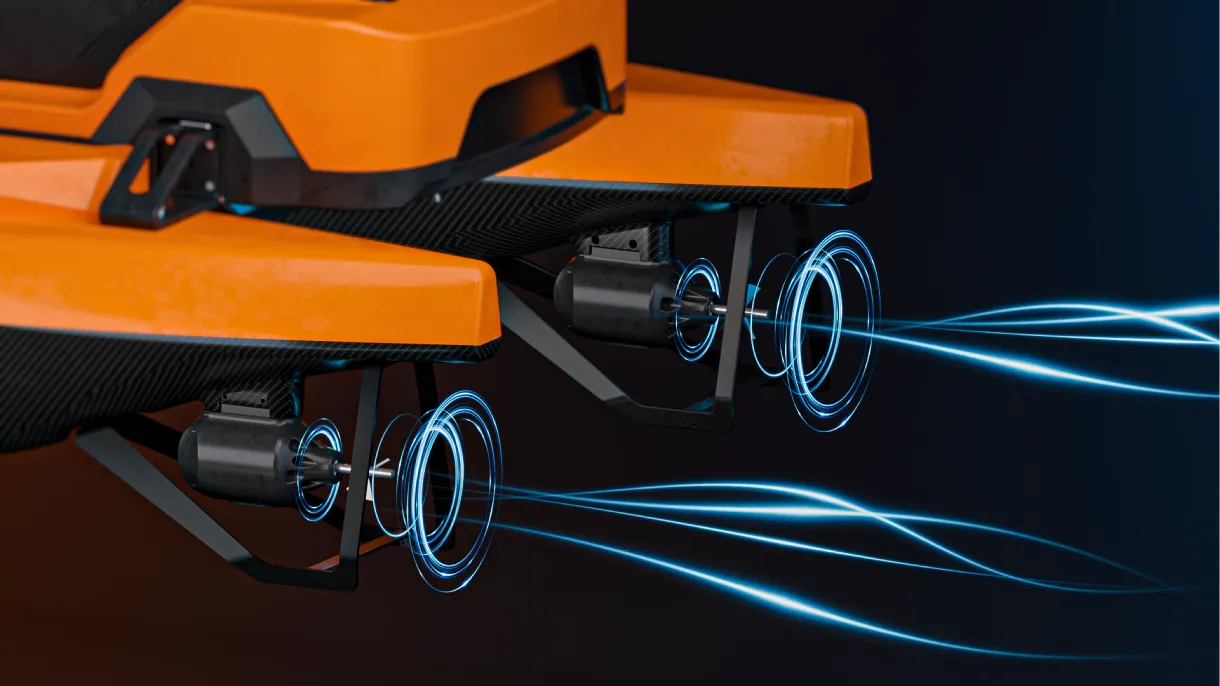

- Water-jet propulsion system
- Anti-weed entanglement propulsion design
- Maximum thrust of 140 N
- Supports mounting multiple equipment
- 3–5 km remote control and HD image transmission
- Snapdragon 660 octa-core control platform
- Self-developed intelligent control software
- Cloud data processing
- Real-time vessel status monitoring
- One-key autonomous navigation
- Emergency stop function
- Low power consumption
- High-strength communications
- Customizable configurations
Design
- Award-winning exterior design with streamlined hull

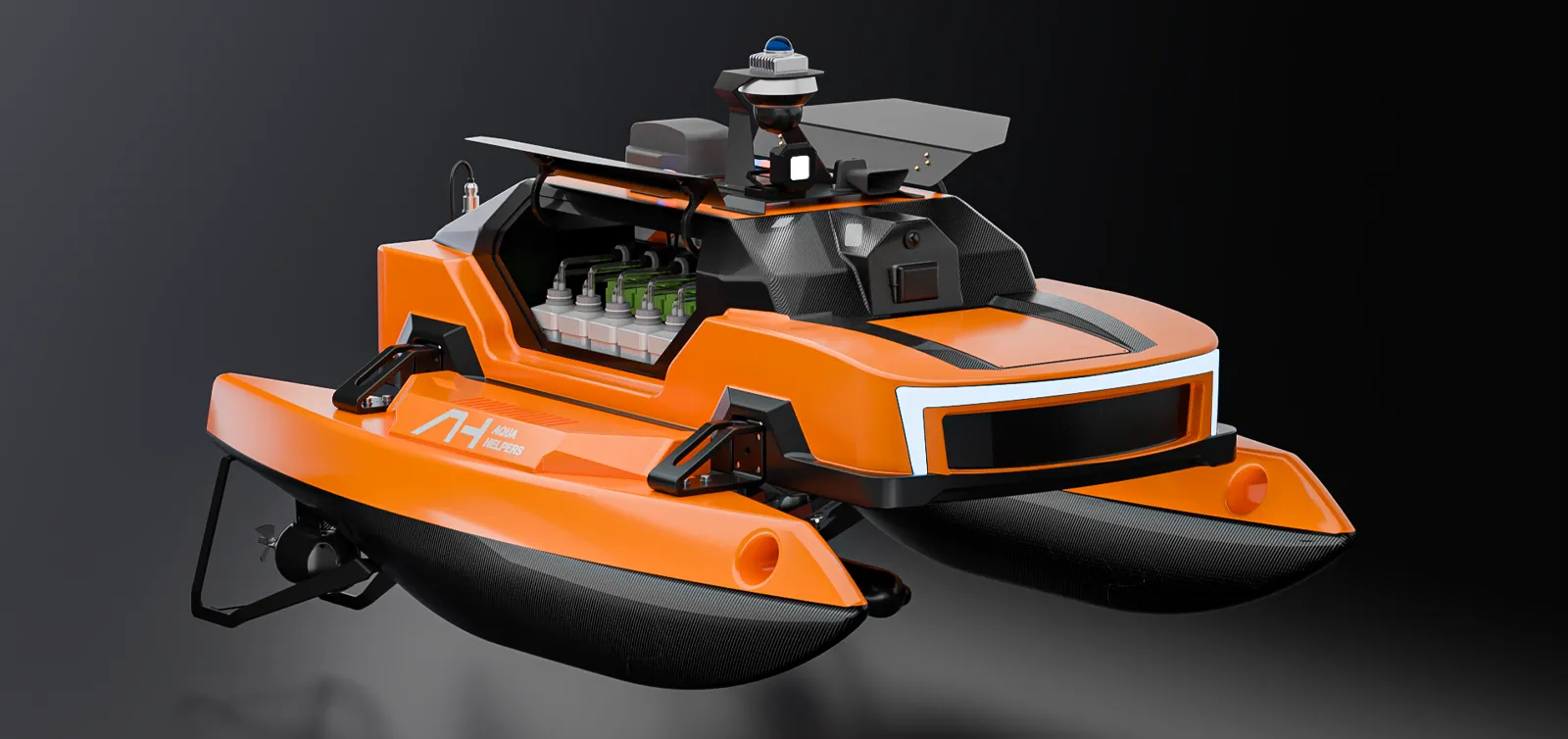

- Aviation-inspired gull-wing access doors
- Optimized hull layout for improved space utilization
- Carbon fiber composite construction
Technical specifications
| Specification | Hunter USV |
|---|---|
| Type | Catamaran |
| Hull Material | Carbon fiber |
| Dimensions (L × W × H) | 1,620 × 1,100 × 675 mm |
| Hull Weight | 35 kg |
| Payload Capacity | ≤45 kg |
| Endurance | Up to 8 hours (at 1.5 m/s) |
| Cruising Speed | 1.5 m/s |
| Maximum Speed | 5.0 m/s |
| Remote Control Range | 3–5 km |
| HD Image Transmission | 3 km |
| Protection Rating | IP65 |
| Propulsion | Water-jet propulsion system |
| Maximum Thrust | 140 N |
| Minimum Operating Depth | ≥0.3 m |
| Wind Resistance | Force 3 |
| Wave Resistance | Force 1 |
| Autonomous Navigation | Yes |
| Automatic Obstacle Avoidance | Yes |
| Automatic Return | Yes |
| Remote Operation | Yes |
| Environmental Awareness | Yes |

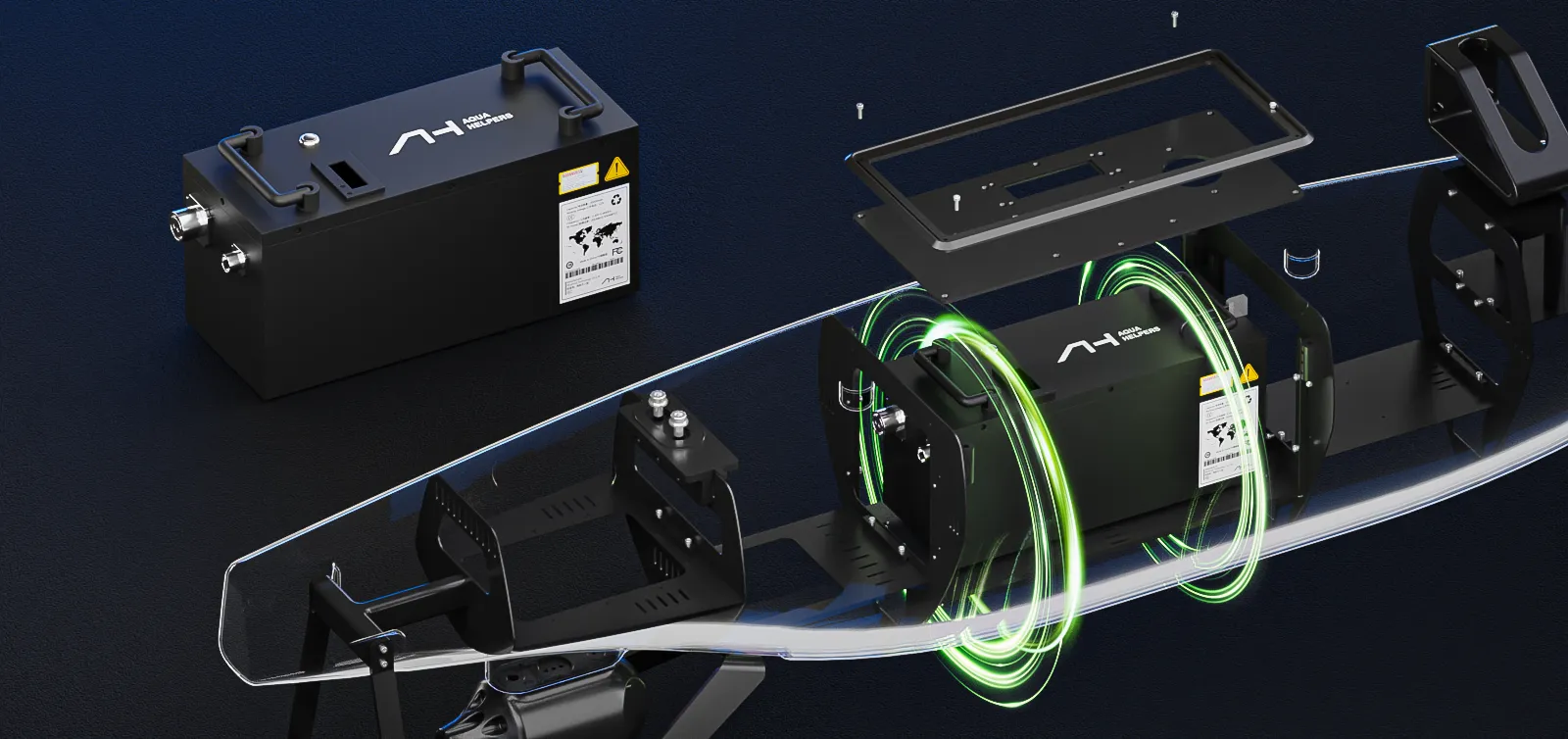

| Battery Type | Lithium battery |
| Control Platform | Snapdragon 660 octa-core |
| Customization | Available |
