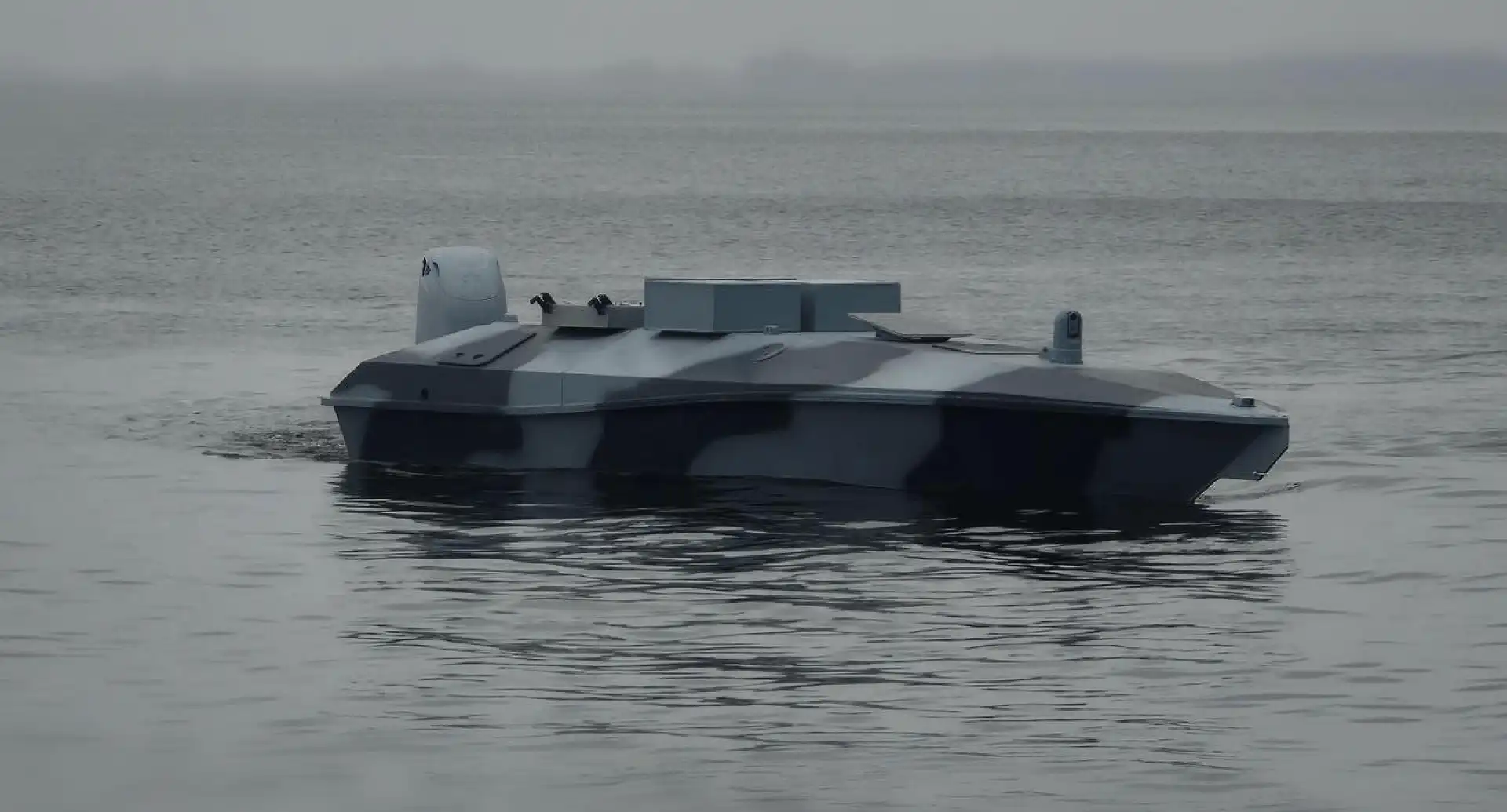

Katran X3
Maritime Drone
Product descripton: Katran X3 by MAC HUB
Its mission is to attack and destroy. This Katran-kamikaze is designed for precision strikes on enemy vessels, submarines, and other targets. The drone’s warhead mass is 300 kg; additionally, Katran X3 carries three FPV drones on board. The maximum speed of this Katran version is 80 km/h, with a range of 1,600 km.
Technical specifications
General Characteristics
| Specification | Value |
|---|---|
| Length | 6.5 m |
| Width | 2.2 m |
| Height | 2.5 m |
| Fuel Tank | 1,650 L |
| Maximum Speed | 80 km/h |
| Cruising Speed | 49 km/h |
| Fuel Consumption | 90 L/h |
| Range (cruising speed) | 1,600 km |
| Armament Configuration | Kamikaze (warhead mass – 300 kg) / FPV 10″ drones (3 units, up to 15 km range) |
| Number of Operators | 6 (vessel pilot, navigator, UAV navigator, 3 UAV operators) |
| Additional Equipment | Communication system / camera system / control system / power system |
Vessel Life-Support Systems
| Specification | Value |
|---|---|
| Hull & Subsystem Damage Detection | Yes |
| Flood Control / Water Pumping System | Yes |
Control System Configuration
| Specification | Value |
|---|---|
| Satellite Communication Channel | Yes |
| Control System | Integrated |
| Autopilot | Yes |
| Command Post Coordination System | Yes |
| Fixed-Wing UAV Synchronization | Yes |
| Real-Time Recon Data Updates | Yes |
| Station-Keeping System | Yes |
| AI Target Detection & Acquisition | Yes |
| AI Navigation & Obstacle Avoidance | Yes |
| AI Communication Loss Control | Yes |
| AI Target Identification & Reporting | Yes |
| Target Recognition Range | up to 7 km |
Usage
| Specification | Value |
|---|---|
| Mission Type | Single-use (returns if no targets are detected) |
| Primary Missions | Engaging enemy vessels / striking port infrastructure / neutralizing surface components of port and industrial defense systems |
