Khyzhak 13
Product descripton: Khyzhak 13 by 3DTech

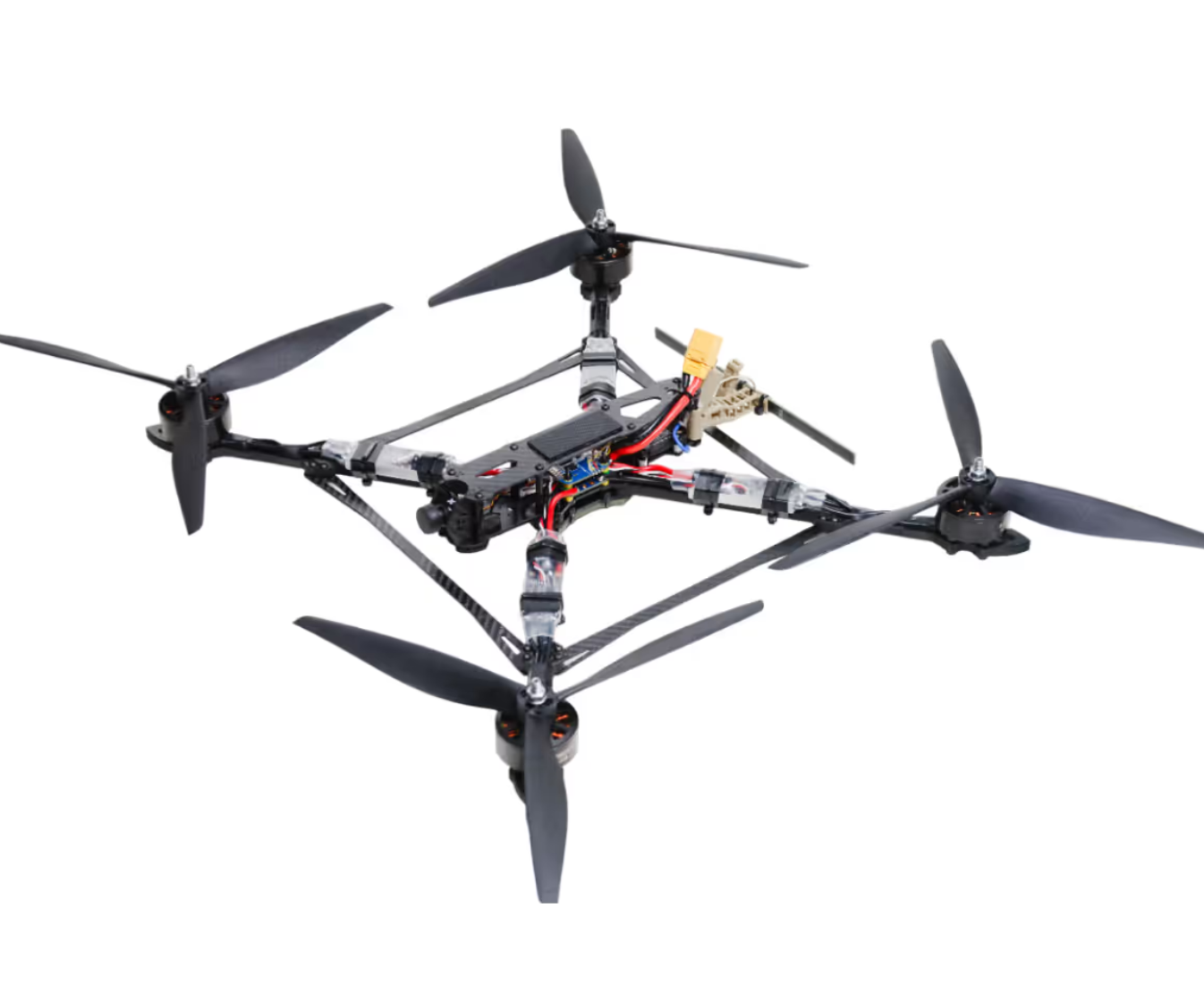

The Khyzhak 13 is a 13-inch FPV UAV engineered for tactical strike operations requiring high payload capacity and flexible mission configurations. Supporting ELRS or TBS control links, multi-band analog video transmission, and optional night or thermal imaging, it can be adapted for a wide range of battlefield scenarios. Its carbon-fiber airframe, high-power propulsion system, and configurable avionics enable reliable heavy-payload delivery and extended operational flexibility.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 13 in (carbon fiber) |
| Payload Capacity | 5 kg |
| Flight Endurance | 15 min |
| Tactical Range | 12 km |
| Operating Altitude | 50–1,000 m |
| Cruising Speed | 70 km/h |
| Control Type | ELRS / TBS |
| Control Link | ELRS |
| Video Transmission | Analog (Day / Night / Thermal) |
| Video Channel Frequencies | 4.9–6.1 GHz / 3.3 GHz / 1.3 GHz* |
| Video Transmitter (VTX) | 4.9–6.1 GHz, 2.5 W |
| Camera | Daytime 1200 TVL; optional Night or Thermal camera |
| Power Supply | 8S4P battery |
| Flight Controller / ESC | F722 / ESC 80A 8S |
| Motors | 4214 380KV |
| Video Antenna | SMA RHCP 5.8 GHz, 150 mm |
| Control Antenna | Universal hackable, 500–1400 / 200–500 MHz |
| Propellers | 1310 |
| Recommended Battery | Li-Ion 6S2P 5,200 mAh or 8,400 mAh (not included) |
Additional Features
- Multi-band control antenna
- Adapted FailSafe
- 6-band ELRS firmware with custom frequency option
- PID and filtering optimized for payload weight
- Remote VTX power control
- INav with stabilization and altitude hold mode
Optional Equipment
- Initiation Board v1 (2 fuses, contact sensor, self-activation system)
- Initiation Board v2 (remote activation)
- Night camera
- Analog thermal camera
- Payload drop system
- Rotating camera
