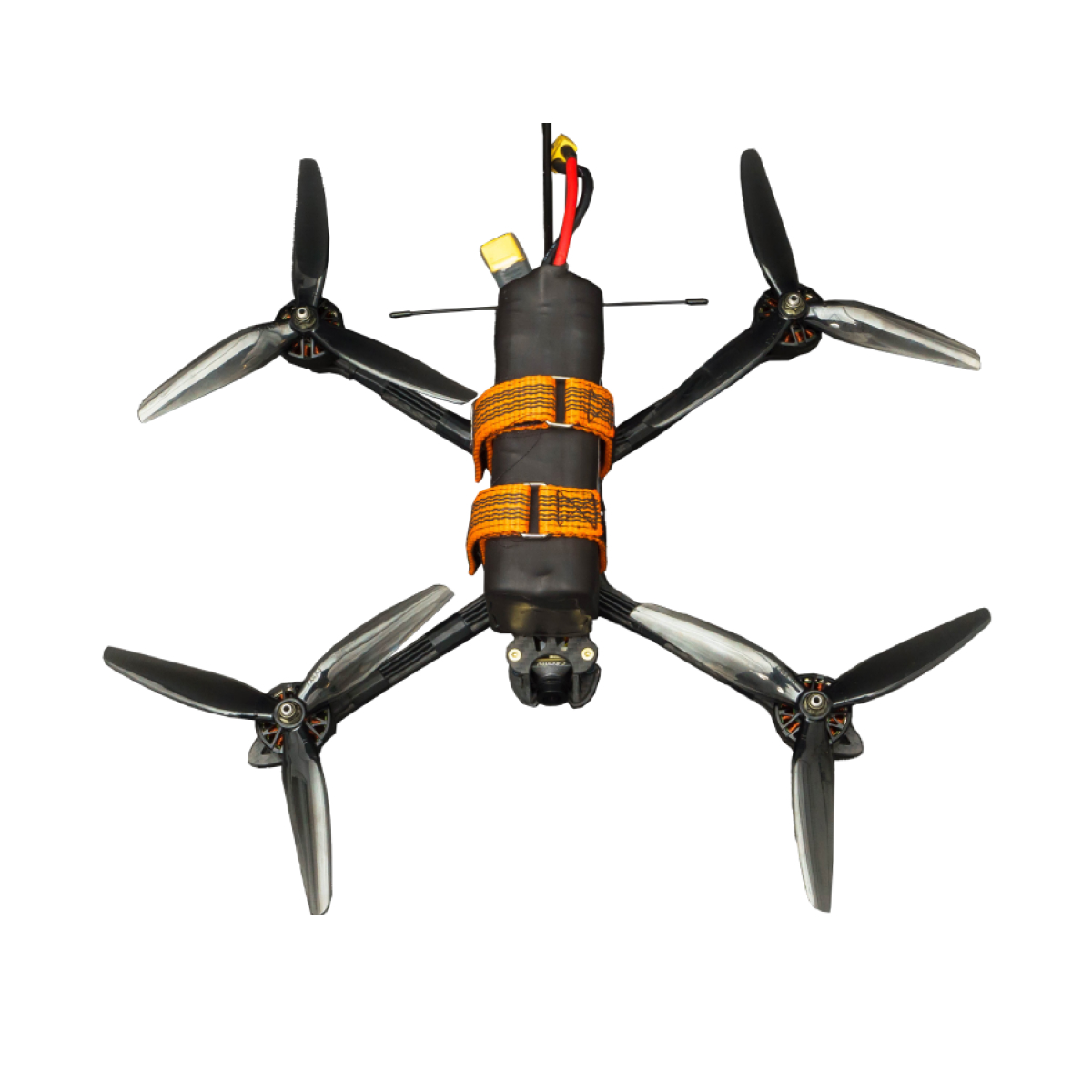

Khyzhak 7 Plus
Product descripton: Khyzhak 7 Plus by 3DTech
The Khyzhak 7 Plus is an upgraded 7-inch FPV UAV developed for tactical strike operations in contested environments. Supporting ELRS or TBS control links, multiple analog video transmission bands, and optional night or thermal imaging, it offers increased operational flexibility for diverse battlefield missions. Its lightweight carbon-fiber airframe, configurable avionics, and adaptable payload capabilities enable reliable precision strike performance across a range of combat scenarios.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 7 in (carbon fiber) |
| Payload Capacity | 1.5 kg |
| Flight Endurance | 15 min |
| Tactical Range | 12 km |
| Operating Altitude | 50–1,000 m |
| Cruising Speed | 70 km/h |
| Control Type | ELRS / TBS |
| Control Link | ELRS |
| Video Transmission | Analog (Day / Night / Thermal) |
| Video Transmitter (VTX) | 1.2 GHz; 4.9–6.1 GHz, 2.5 W |
| Camera | Daytime 1200 TVL; optional Night or Thermal camera |
| Power Supply | 6S2P 8,000 mAh battery |
| Flight Controller / ESC | F405 / ESC 50A |
| Motors | 2807 1300KV |
| Video Antenna | 5.8 GHz RHCP (Long) |
| Control Antenna | 915 MHz; optional multi-band (tunable to different frequencies) |
| Propellers | 7×4×3 |
| Recommended Battery | Li-Ion 6S2P 5,200 mAh or 8,400 mAh (not included) |
Additional Features
- Multi-band control antenna
- Adapted FailSafe
- 6-band ELRS firmware with custom frequency option
- PID and filtering optimized for payload weight
- Remote VTX power control
Optional Equipment
- Initiation Board v1 (2 fuses, contact sensor, self-activation system)
- Initiation Board v2 (remote activation)
- Night camera
- Analog thermal camera
- Payload drop system
- Rotating camera
- Antennas for custom frequencies
