Khyzhak REBOFF 10 20km Digital

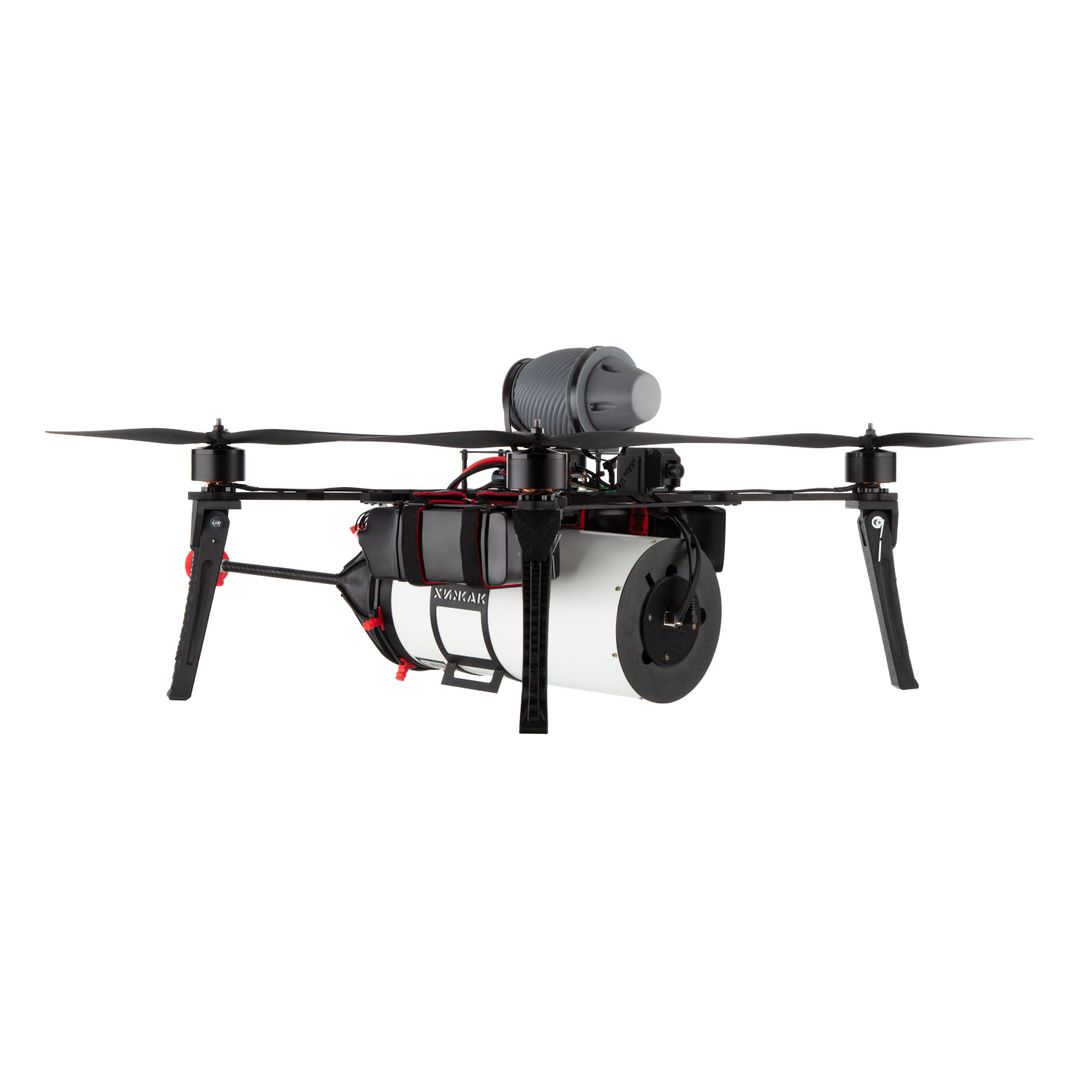

Product descripton: Khyzhak REBOFF 10 20km Digital by 3DTech
The Khyzhak REBOFF 10 20 km Digital is a 10-inch FPV UAV developed for precision strike operations in contested electromagnetic environments. Equipped with a 20 km fiber-optic control link, it provides secure, interference-resistant communications while supporting both direct and remote operation through a dedicated ground control module. Its lightweight carbon-fiber airframe, digital IP camera, and high-performance propulsion system deliver agile flight and reliable mission execution for frontline combat operations.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | Fiber-Optic FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 10 in (carbon fiber) |
| Payload Capacity | 1.3 kg |
| Flight Endurance | 16 min |
| Tactical Range | 18 km |
| Operating Altitude | 0–500 m |
| Cruising Speed | 70 km/h |
| Control Type | Direct / Remote |
| Control Link | 20 km Fiber-Optic Coil |
| Camera | Digital IP Camera |
| Power Supply | 1 × 6S2P 10,000 mAh battery |
| Flight Controller / ESC | F405 / 60A |
| Motors | 3115 900KV |
| Propellers | 1050 |
Fiber-Optic Coil Specifications
| Specification | Value |
|---|---|
| Weight | 1,883 g |
| Body Length | 465 mm |
| Body Diameter | 125 mm |
| Fiber Type | G657.A2 (0.25 mm) |
| Connector Type | FC/UPC |
| Mounting | Quick-release |
Ground Control Module
| Feature | Description |
|---|---|
| Control Modes | Wired control; Remote control |
