Khyzhak REBOFF 13 15KM
Product descripton: Khyzhak REBOFF 13 15KM by 3DTech

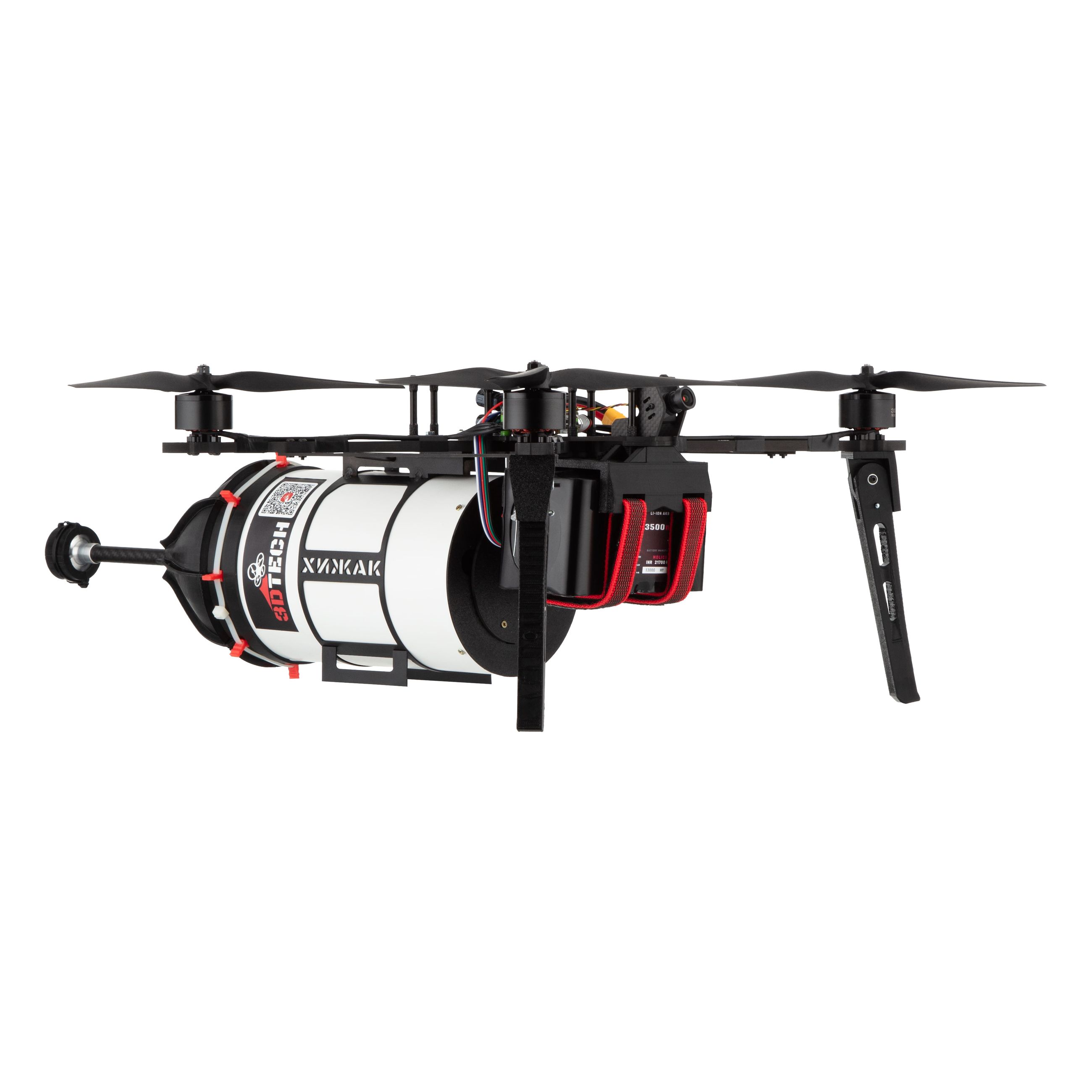

The Khyzhak REBOFF 13 15 km is a 13-inch FPV UAV developed for tactical strike operations in contested electromagnetic environments. Equipped with a 15 km fiber-optic control link, it provides secure, interference-resistant communications while supporting both direct and remote operation through a dedicated ground control module. Its carbon-fiber airframe, FPV camera system, and high-capacity battery enable agile flight and effective payload delivery, while an optional thermal camera enhances operational capability in day and night conditions.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | Fiber-Optic FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 13 in (carbon fiber) |
| Payload Capacity | 1.8 kg |
| Flight Endurance | 15 min |
| Tactical Range | 15 km |
| Operating Altitude | 0–500 m |
| Cruising Speed | 70 km/h |
| Control Type | Direct / Remote |
| Control Link | 15 km Fiber-Optic Coil |
| Camera | CADDX FPV Ratel Pro |
| Thermal Camera | Optional |
| Power Supply | 8S3P 13,500 mAh battery |
| Flight Controller / ESC | F722 / ESC 80A 85 |
| Motors | 4320 350KV |
| Propellers | 1309 |
Fiber-Optic Coil Specifications
| Specification | Value |
|---|---|
| Weight | 1,486 g |
| Body Length | 410 mm |
| Body Diameter | 125 mm |
| Fiber Type | G657.A2 (0.25 mm) |
| Connector Type | FC/UPC |
| Mounting | Quick-release |
Ground Control Module
| Feature | Description |
|---|---|
| Control Modes | Wired control; Remote control |
