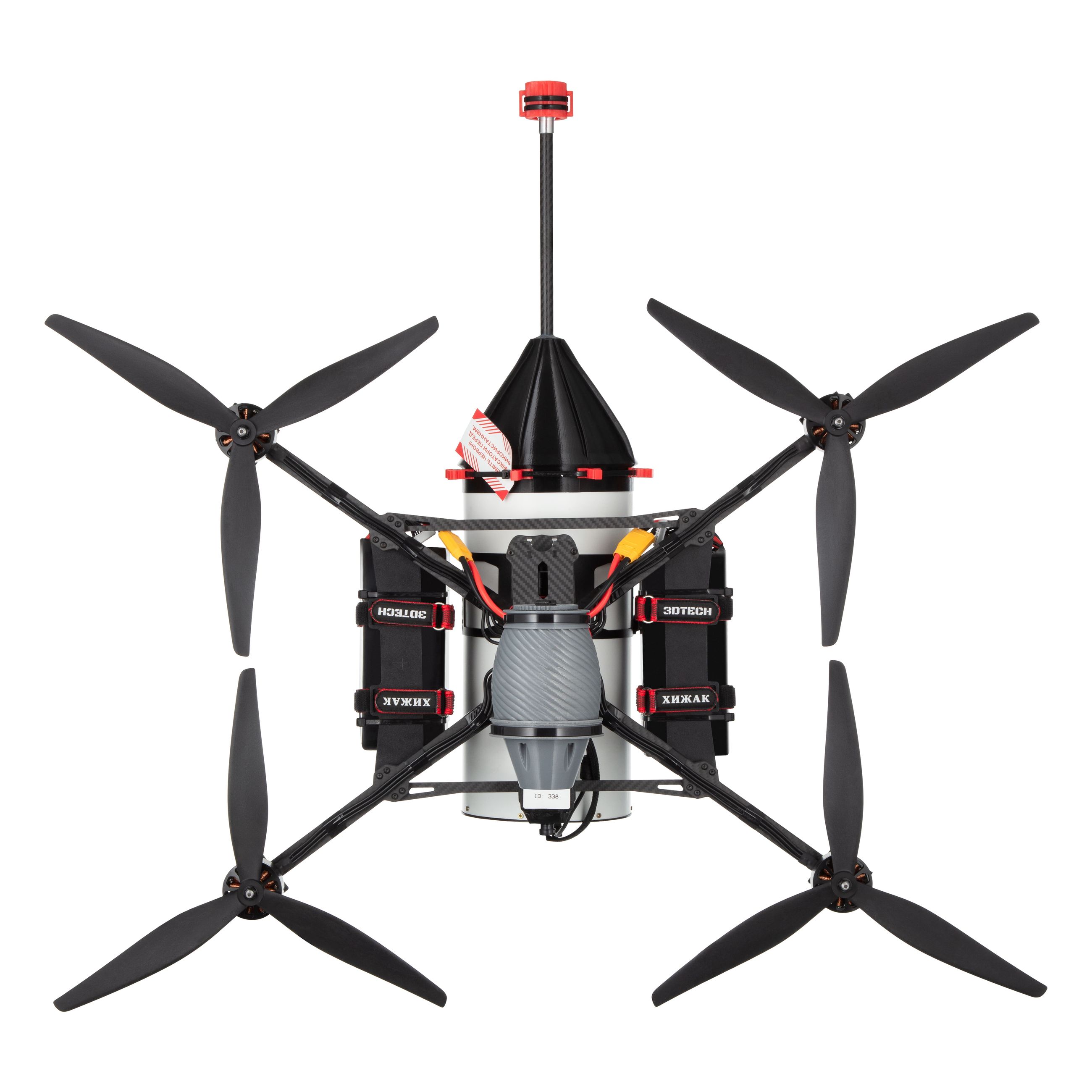

Khyzhak REBOFF 15 30 km Digital
Product descripton: Khyzhak REBOFF 15 30 km Digital by 3DTech
The Khyzhak REBOFF 15 30 km Digital is a 15-inch FPV UAV engineered for tactical strike operations in electronically contested environments. Using a 30 km fiber-optic control link, it provides secure, interference-resistant communications while supporting both direct and remote operation through a dedicated ground control module. The platform combines a lightweight carbon-fiber airframe, digital IP camera, and 30-minute endurance to deliver reliable precision strikes beyond the reach of conventional radio-controlled FPV systems.
Technical specifications
| Specification | Value |
|---|---|
| Platform Type | Fiber-Optic FPV Combat UAV |
| Configuration | Quadcopter |
| Frame Size | 15 in (carbon fiber) |
| Payload Capacity | 1.1 kg |
| Flight Endurance | 30 min |
| Tactical Range | 30 km |
| Operating Altitude | 0–500 m |
| Cruising Speed | 70 km/h |
| Control Type | Direct / Remote |
| Control Link | 30 km Fiber-Optic Coil |
| Camera | Digital IP Camera |
| Power Supply | 2 × 8S3P 15,000 mAh batteries |
| Flight Controller / ESC | F722 / ESC 80A 85 |
| Motors | 4320 350KV |
| Propellers | 1573 |
Fiber-Optic Coil Specifications
| Specification | Value |
|---|---|
| Weight | 2,964 g |
| Body Length | 650 mm |
| Body Diameter | 125 mm |
| Fiber Type | G.657.A2 |
| Connector Type | FC/UPC |
| Mounting | Quick-release |
Ground Control Module
| Feature | Description |
|---|---|
| Control Modes | Wired control; Remote control |
