KOI TURBO USV
High-speed autonomous USV featuring KOI-Jet propulsion, modular payload integration, and a large moon pool for advanced hydrographic and environmental survey missions.
Product descripton: KOI TURBO USV by AquaHelpers

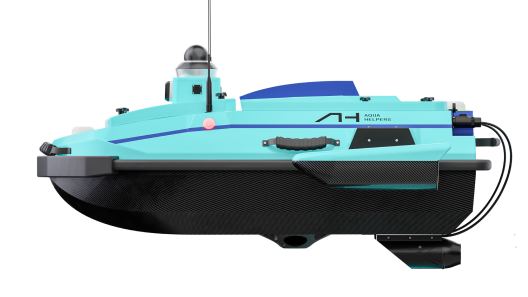

The KOI TURBO USV is a lightweight, high-performance autonomous surface vehicle designed for hydrographic surveying, environmental monitoring, and scientific data collection. Equipped with AquaHelpers’ proprietary KOI-Jet propulsion system, a modular carbon fiber hull, interchangeable hatch system, and a large through-hull moon pool, the platform supports rapid payload integration while delivering reliable operation in complex water environments.
Key Features

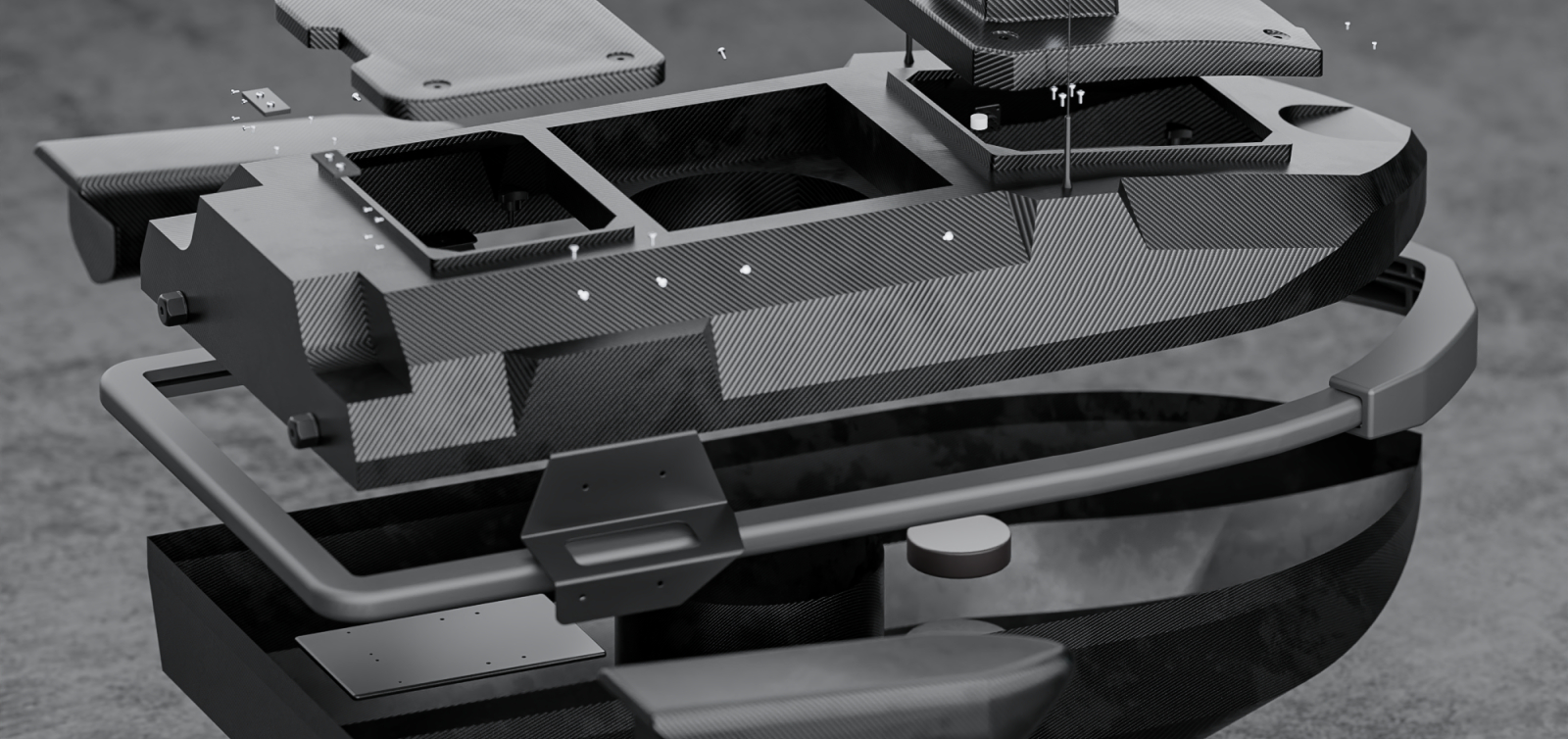

- Lightweight carbon fiber hull
- High-strength structural design
- Dual thermal and electric power system
- AquaHelpers proprietary KOI-Jet propulsor
- Low-noise, high-efficiency water-jet propulsion
- Anti-weed propulsion design
- Optimized fluid-dynamics design

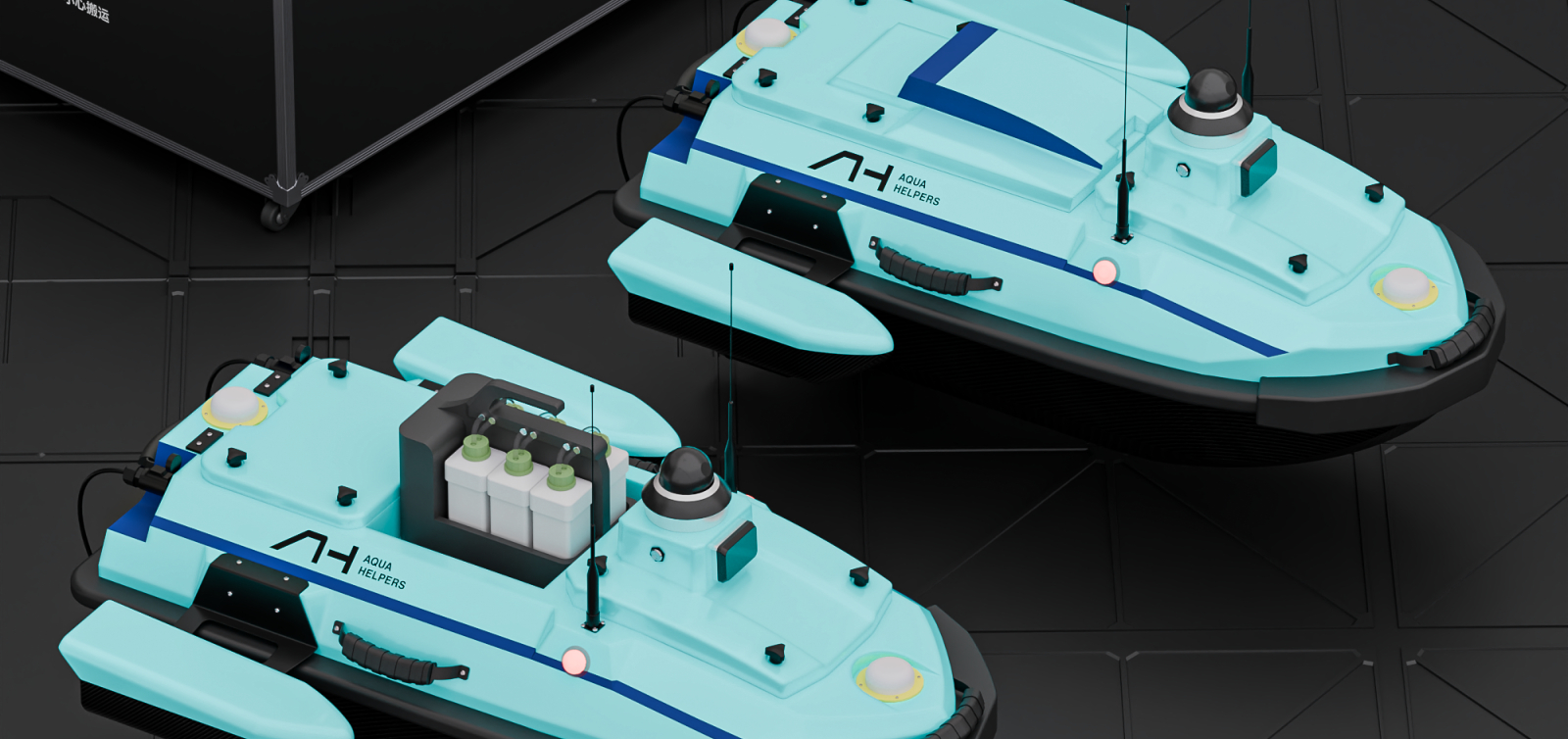

- Interchangeable rear hatch system
- Full-coverage sealed hatch
- Open hatch for water sampling and vertical instruments
- Quick-release hatch mechanism

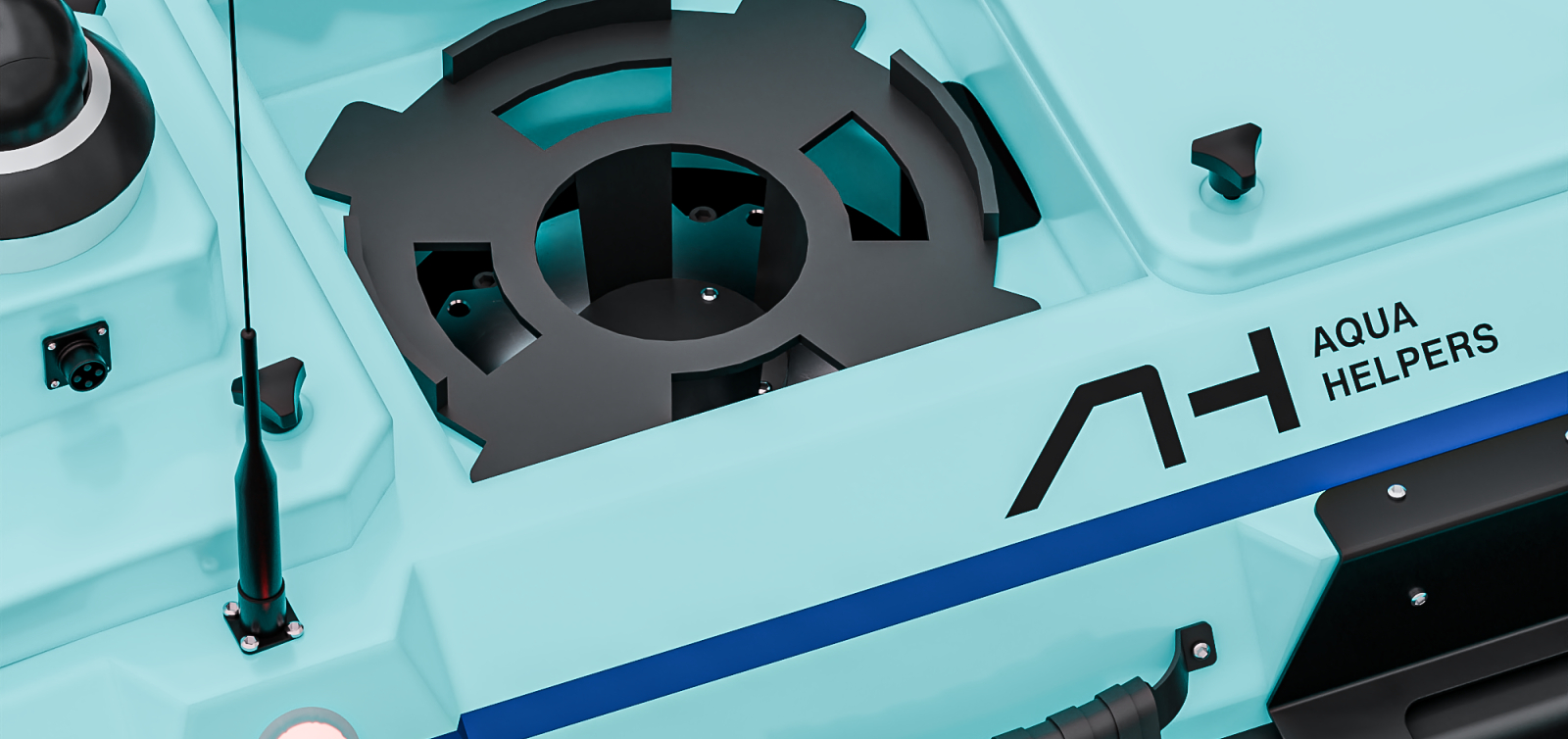

- Large 250 mm through-hull moon pool
- Plug-and-play payload integration
- Compatible with:
- ADCP
- CTD
- Water quality analyzers
- Water samplers
- Custom mounting brackets for third-party equipment

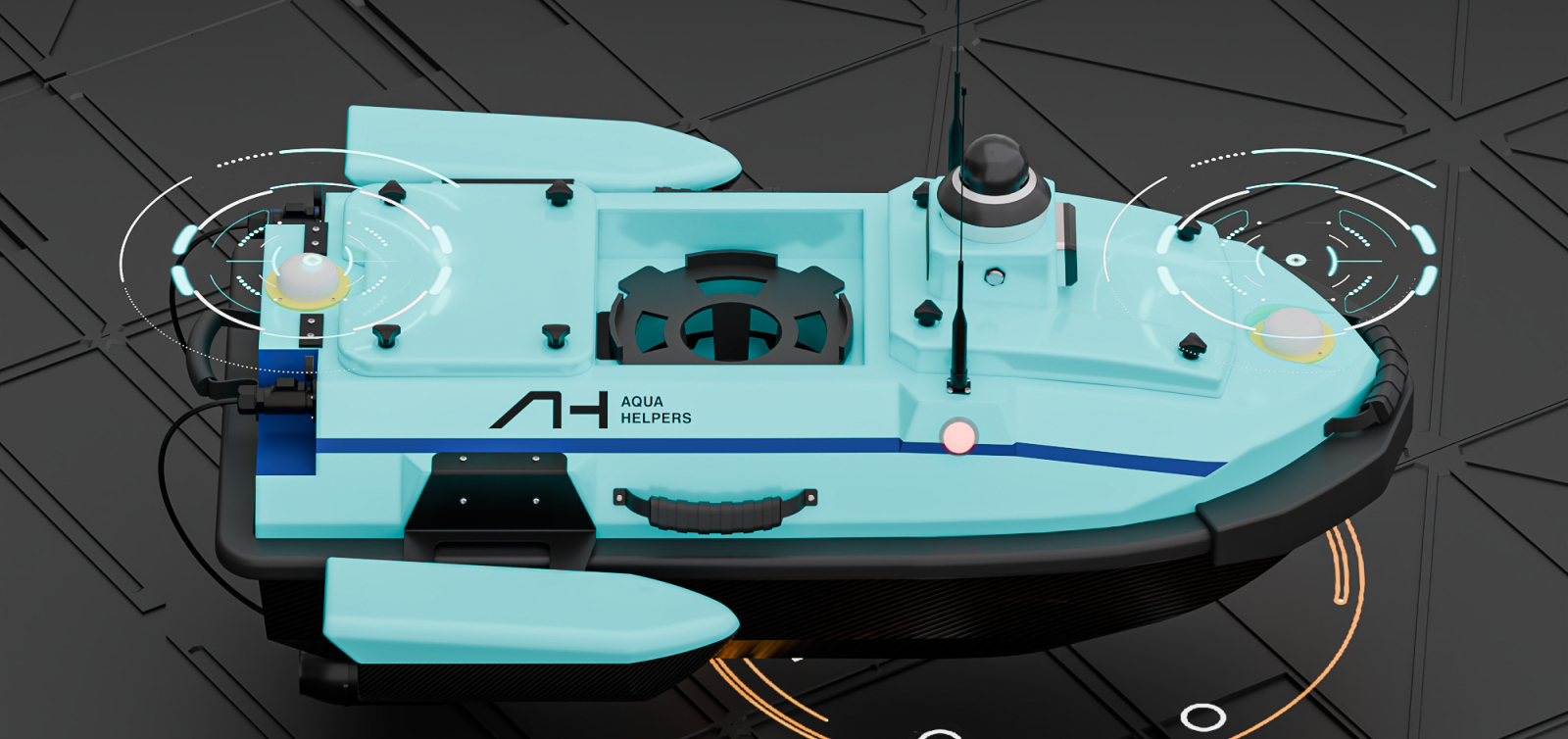

- Autonomous navigation
- One-click autonomous navigation
- Real-time vessel monitoring
- Emergency stop function
- High-strength communications
- High-performance computing platform
- Low power consumption
- Self-developed intelligent control software
- Cloud-based data processing
- Customizable payload configurations
Technical specifications
| Specification | KOI TURBO |
|---|---|
| Length | 1,260 mm |
| Width | 600 mm |
| Height | 620 mm |
| Hull Material | Carbon fiber |
| Endurance (Cruising Capability) | 4 h |
| Maximum Speed | 7 m/s |
| Standard Payload Capacity | 35 kg |
| Propulsion | AquaHelpers KOI-Jet water-jet propulsor |
| Moon Pool | 250 mm through-hull |
| Compatible Payloads | ADCP, CTD, water quality analyzers, water samplers |
| Rear Hatch Options | Full-coverage / Open interchangeable hatch |
| Autonomous Navigation | Yes |
| Real-Time Monitoring | Yes |
| Emergency Stop | Yes |
| Communications | High-strength communications |
| Control Software | Self-developed intelligent software with cloud data processing |
| Customization | Available |
