LAST SHADOW (T-200)
Product descripton: LAST SHADOW (T-200) by Ukrainska Bavovna

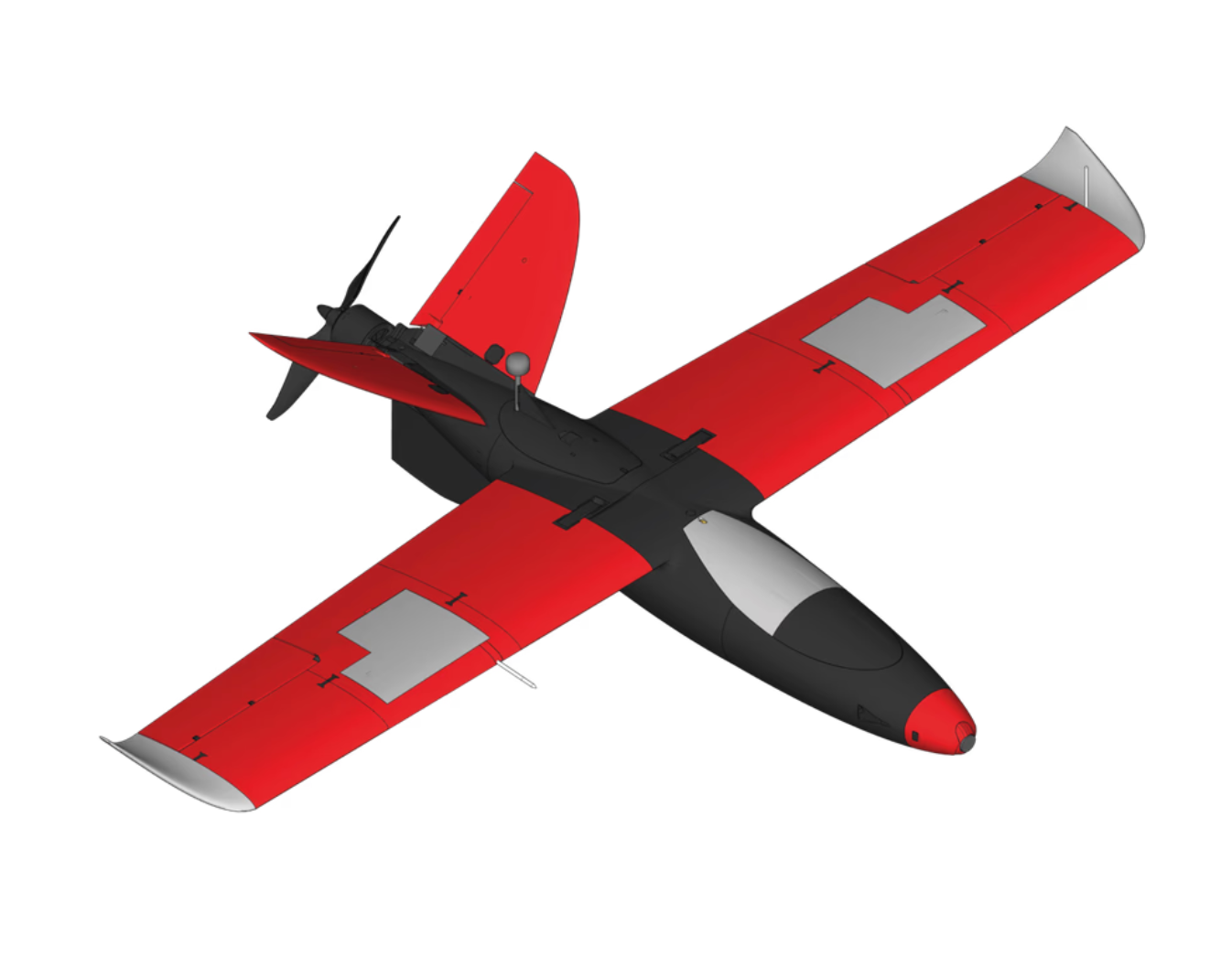

“Last Shadow (T-200)” is a Ukrainian fixed-wing interceptor UAV designed to destroy Shahed- and Lancet-type attack drones, as well as reconnaissance UAVs such as Orlan, Zala, and Supercam. It is equipped with both day and thermal imaging cameras for effective detection and engagement in various conditions and has been officially codified with an NSN.
The UAV uses a beacon-based navigation system (SNS) and Sine.link, a jamming-resistant communication channel for telemetry and remote control. It also features a gimbal-mounted onboard camera with a wide tilt range, providing extended situational awareness and precise targeting, along with a codified initiation board for reliable warhead activation.
Technical specifications
| Specification | Details |
|---|---|
| Payload | 1000 g |
| Cruise speed | 130 km/h |
| Maximum speed | 300 km/h |
| Flight duration (max speed mode) | 5 min |
| Flight time | up to 50 min |
| Operational range | 30 km |
| Max flight altitude | 5000 m |
| Climb rate | 30 m/s |
| Communication system | Sine.link |
| Video signal type | Analog |
| Camera tilt control | Yes (-80° to +45°) |
| Initiation board | “Spalakh-M” (codified, in-house production) |
| Launch system | Pneumatic catapult |
