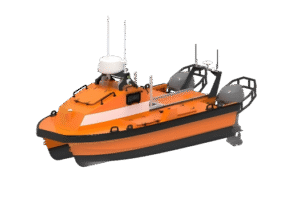

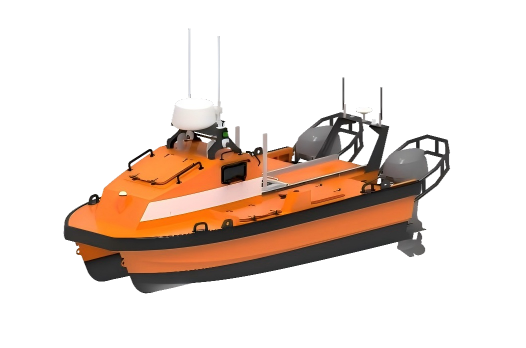

M40G
High-Speed Gasoline USV for Rapid Inshore & Coastal Survey Missions
Product descripton: M40G by OceanAlpha
The M40G is a gasoline-powered unmanned surface vessel (USV) designed for rapid response, inshore surveys, and dynamic coastal operations. As part of the OceanAlpha M40 Series, it combines high speed, agile maneuverability, and a compact catamaran platform to support hydrographic and inspection missions where mobility and quick deployment are essential.
Technical specifications
| Category | Specification | Value |
|---|---|---|
| Physical | Overall Length (LOA) | 4.8 m |
| Beam | 2.1 m | |
| Displacement | 1.3 t | |
| Performance | Maximum Speed | 12 kn |
| Endurance | 8 h @ 4 kn | |
| Payload Capacity | 80 kg | |
| Operation Sea State | Sea State 2 | |
| Survival Sea State | Sea State 3 | |
| Power & Propulsion | Version | Gasoline-Powered |
| Propulsion | 2 × Gasoline Outboard Motors | |
| Deck Equipment | Deck Machinery | Auto Lifter, Auto Winch, SVP Winch |
