MAC Dead Fly
Product descripton: MAC Dead Fly by MAC HUB

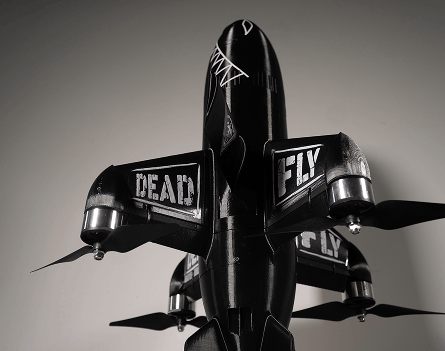

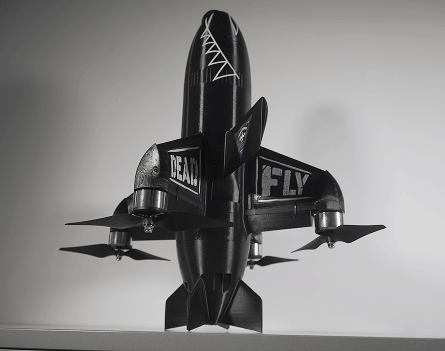

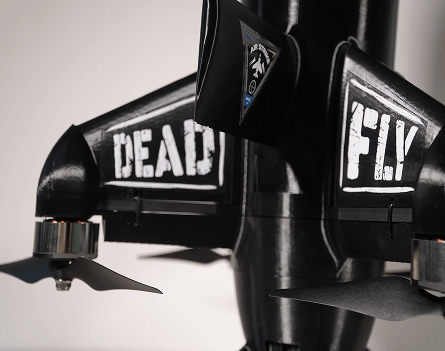

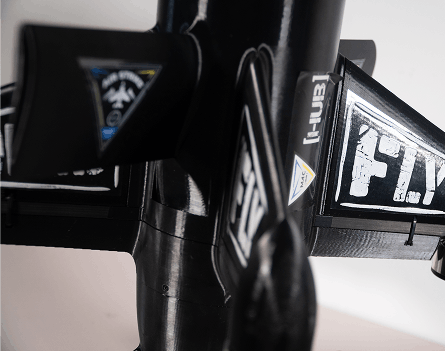

MAC Dead Fly is a tactical interceptor quadcopter designed to destroy enemy UAVs like the Shahed-136, FPV drones, and other small targets. The cost of a single drone is significantly lower than the price of a potential target, making MAC Dead Fly a cost-effective alternative to expensive air defense systems. The drone is equipped with a high-quality thermal imaging camera, enabling the operator to see targets in total darkness.
Operational range: up to 20 km
Launch preparation time: up to 5 minutes
Configuration: Multirotor loitering munition (quadrotor configuration)
High Maneuverability
The quadrotor configuration combined with FPV control in Acro mode allows maneuvering required for effective target engagement.
High Mobility
Vertical take-off enables launch without the use of additional launch systems.
High technological efficiency and simplicity of production
The system is designed using readily available materials and components. All structural elements are suitable for serial production.
Technical specifications
MAC Dead Fly 01
| Specification | Value |
|---|---|
| Target Type | Against Shahed UAVs |
| Dimensions (Height) | 497 mm |
| Dimensions (Width incl. propellers) | 437 mm |
| Speed (Min) | 70 km/h |
| Speed (Max) | 300 km/h |
| Speed (Cruise) | 200 km/h |
| Total Launch Weight | 3,700 g |
| Maximum Operating Altitude | up to 5,000 m |
| Warhead Weight | 500 g |
| Guidance System | Manual visual guidance |
| Optional Features | Fixed-wing attachment |
MAC Dead Fly 02
| Specification | Value |
|---|---|
| Target Type | Against “Orlan UAVs” |
| Dimensions (Height) | 497 mm |
| Dimensions (Width incl. propellers) | 437 mm |
| Speed (Min) | 70 km/h |
| Speed (Max) | 250 km/h |
| Speed (Cruise) | 150 km/h |
| Total Launch Weight | 2,220 g |
| Maximum Operating Altitude | up to 5,000 m |
| Warhead Weight | 250 g |
| Guidance System | Manual visual guidance |
MAC Dead Fly 03
| Specification | Value |
|---|---|
| Target Type | Against ground targets |
| Dimensions (Height) | 497 mm |
| Dimensions (Width incl. propellers) | 437 mm |
| Speed (Min) | 70 km/h |
| Speed (Max) | 300 km/h |
| Speed (Cruise) | 150 km/h |
| Total Launch Weight | 3,915 g |
| Maximum Operating Altitude | up to 2,000 m |
| Warhead Weight | 500 g |
| Guidance System | Autonomous terminal guidance |
