MAC Link Drone
Relay Drone

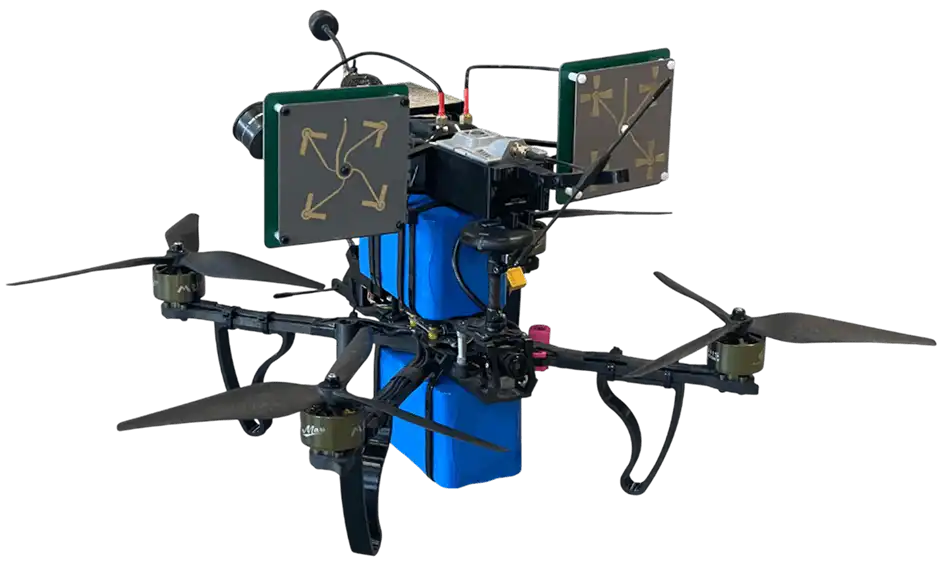

Product descripton: MAC Link Drone by MAC HUB
Drone repeater is a modern solution for stable communication in complex operations. MAC LINK DRONE effectively expands the radio horizon and transmits the signal much further than traditional ground systems. Most often, drone repeaters are used for reliable coordination of UAVs. However, MAC LINK DRONE can also be used in ground operations and enhance coordination between units in difficult terrain or urban areas.
Technical specifications
General Characteristics
| Specification | Value |
|---|---|
| Mission | Ensure stable radio signal and data transmission over long distances |
| Launch Platforms | Katran boards / FPV boxes / ground-based positions |
| Frame Dimensions (L × W × H) | 297 × 297 × 35 mm |
| Weight | 4000 g |
| Motors | 900 KV flight motors |
| Flight Controller Stack | F405-60A |
| Video Modulation Frequency | 1.2–1.3 GHz |
| Video Transmitter Power | 4 W |
| Control Frequency | 915 MHz |
| Patch Antenna | 5.8 GHz |
| Battery | 2 × 6S 3P Samsung 50S 15000 mAh |
Performance
| Specification | Value |
|---|---|
| Maximum Flight Speed | 100 km/h |
| Cruise Speed | 70 km/h |
| Deployment / Pre-flight Time | ~3 minutes |
| Optional Payload | up to 2,000 g |
| Maximum Flight Altitude | up to 1,000 m |
| Maximum Flight Range | up to 16,000 m |
| Flight Duration | up to 45 minutes |
