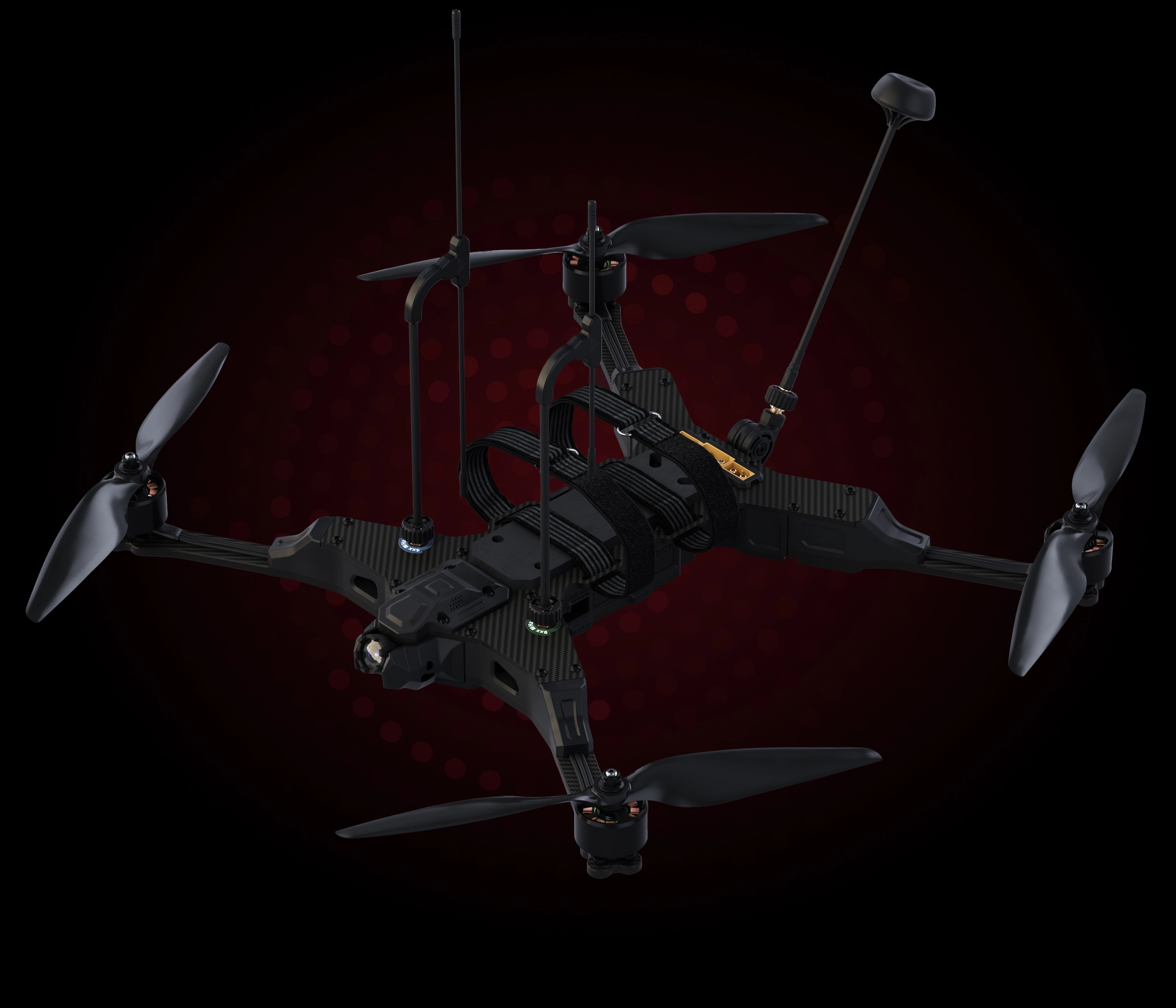

MRM2-10

The MRM2-10 is a 10-inch multi-role tactical UAS engineered for demanding and contested operating environments. Its modular carbon-fibre airframe combines stability, power, and payload flexibility, supporting payloads of up to 3.5 kg.

Key Characteristics

• NDAA-compliant platform: EU-manufactured and designed for professional dual-use applications.
• 10-inch configuration: lightweight carbon-fibre airframe with 10-inch dual-blade propellers.
• High payload capacity: supports payloads of up to 3.5 kg.
• EW-resilient C2: IRONghost control link operates across switchable licensed sub-GHz bands.
• Extended operator stand-off: IRONghost QS ground-side equipment enables up to 1 km operator stand-off according to the supplied specifications.
• Professional flight controller: ORQA H7 QuadCore based on the STM32H743 processor and ICM-42688 IMU.
• Flexible firmware support: compatible with ArduPilot, iNav, Betaflight, and PX4.
• C2 ecosystem integration: MAVLink support and ATAK integration enable connectivity with established command-and-control architectures.
• Analog video link: 5.8 GHz video transmission with up to 5 W VTx output power.
• Low-light FPV capability: ORQA Justice Analog camera provides 1200 TVL resolution and switchable 4:3 / 16:9 aspect ratios.

Communications & Ground Segment

The MRM2-10 uses the IRONghost system for EW-resilient command and control. The dual sub-GHz architecture provides a configurable C2 link using switchable 400/900 MHz-class bands.

Flight & Payload Architecture

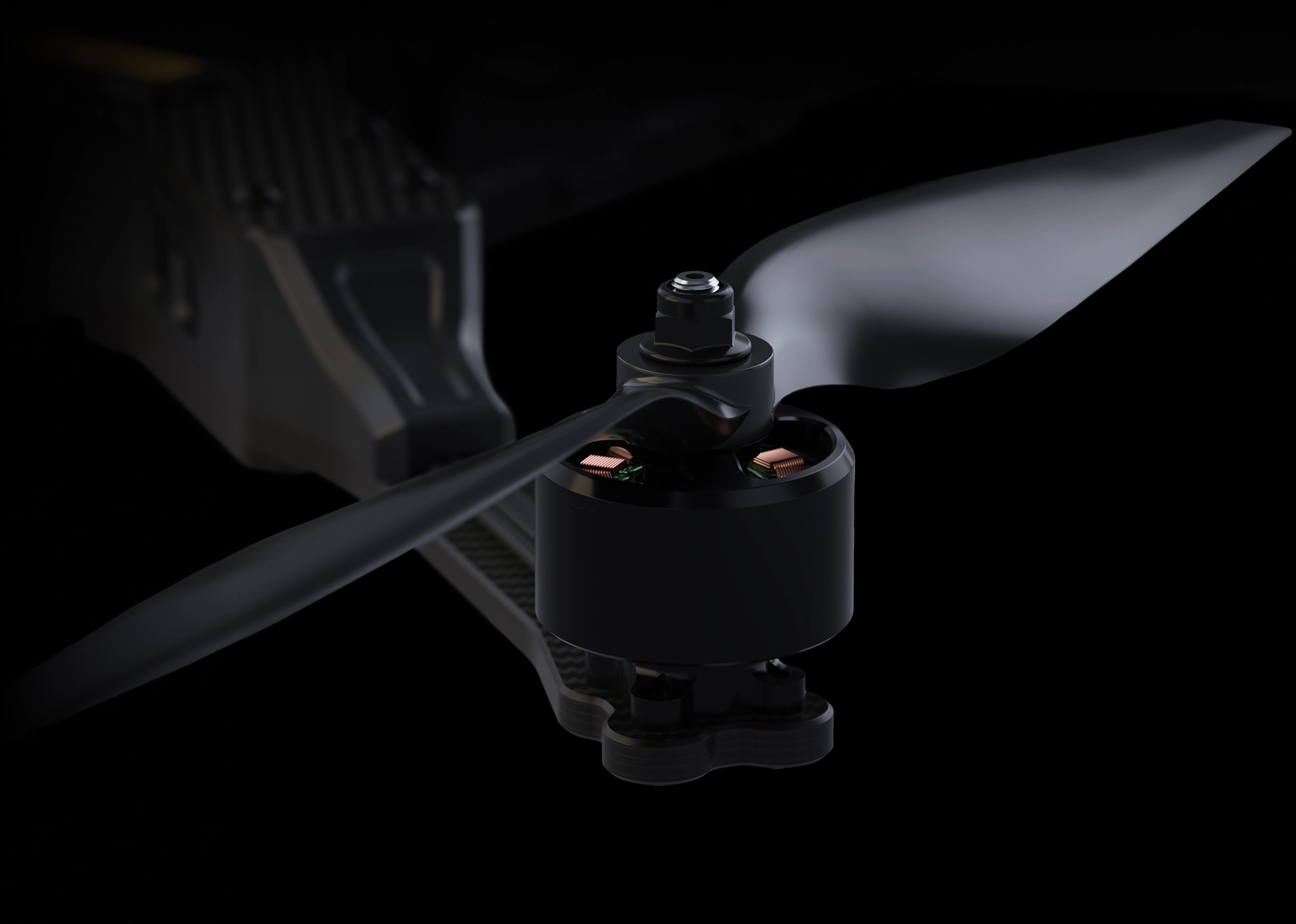

The 10-inch propulsion configuration is designed around ORQA 2814 / 880 kV motors and dual-blade propellers. Combined with the carbon-fibre airframe, this configuration provides the platform with the power and stability required for heavier payload configurations.

The MRM2-10’s H7 flight-control architecture provides support for multiple professional autopilot and flight-control software environments, while MAVLink and ATAK integration facilitate interoperability with existing C2 systems.
