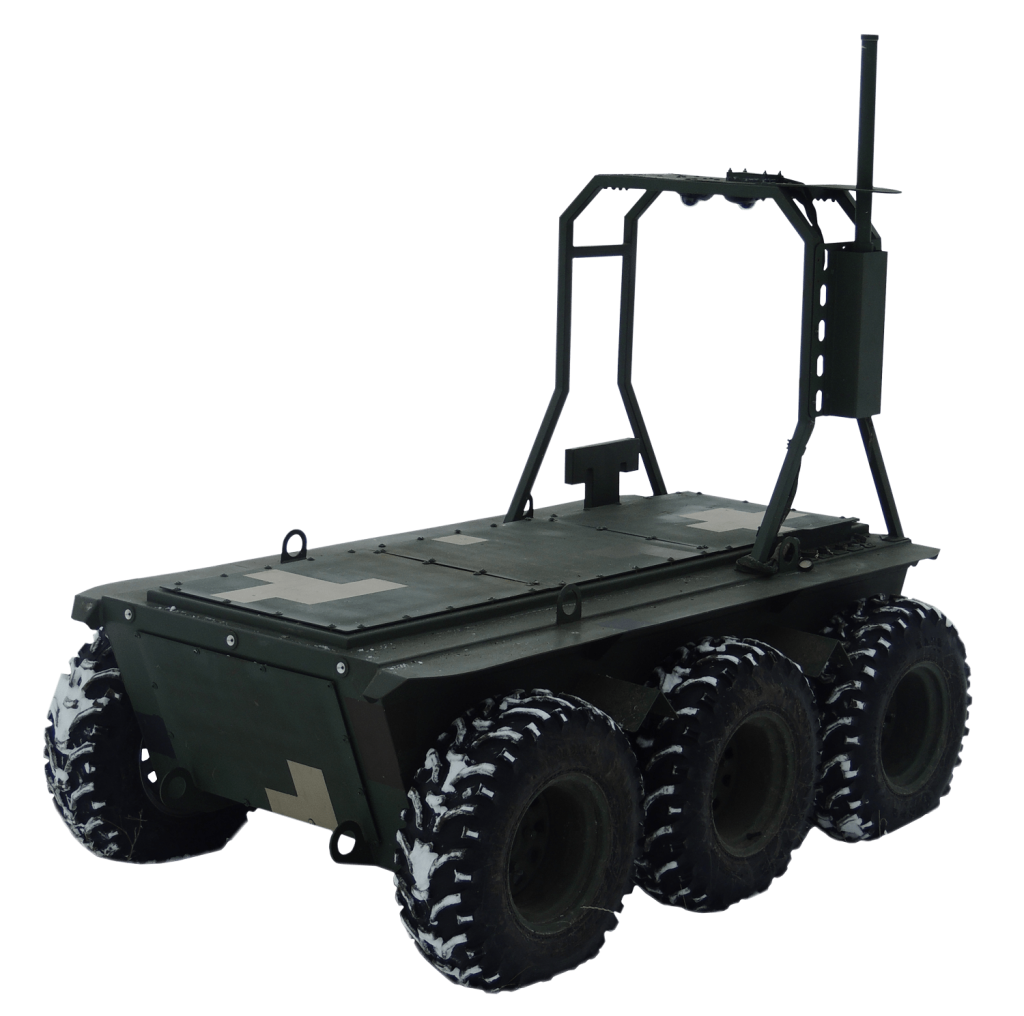

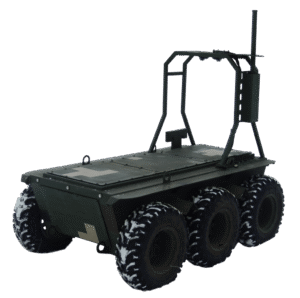

RAVLYK UMP-2
Product descripton: RAVLYK UMP-2 by Ukrainian Unmanned Technologies (UUT)
RAVLYK UMP-2 is a multifunctional mobile platform designed to perform evacuation and logistics tasks.
The product allows reduction in the number of personnel involved and saves time in life-saving operations. It safely and timely delivers medical supplies, provisions, and other cargo to the frontline, observation posts, or military strongpoints.
Key Features
Communication Systems
The platform is adapted for all types of digital communication systems, including satellite systems that use an Ethernet interface with data transmission via standard IP protocols.
In-House Software
The system operates using proprietary software developed according to NATO standards and adapted to military requirements. The software can be configured to integrate with various UGV platforms.
Additional Modules Installation
The adaptive architecture of the platform allows it to transition from a transportation solution to additional roles such as armament, mining, or reconnaissance.
Intelligence Mission Support
The UGV can conduct surveillance and transmit data in real time. The platform’s technical capabilities allow it to remain undetected by the enemy for up to 72 hours.
Use Cases
- Transport and delivery of cargo to remote positions
- Evacuation of the wounded from the combat zone
- Support for reconnaissance operations
- Installation of additional modules
Technical specifications
| Specification | Value |
|---|---|
| Speed Range | 0–10 km/h |
| Maximum Payload | 300 kg |
| Ground Clearance | 27 cm |
| Remote Control Range | 1,500 m |
| Operating Time per Charge | 3–4 hrs |
| Power Reserve | 20 km |
| Operating Time (Single Charge) | 72 hrs |
| Weight | 620 kg |
