REAV-28
Product descripton: REAV-28 by HydroSurv
Since its 2022 launch, the REAV-28 has become a trusted zero-emission USV for hydrographic survey and environmental monitoring within inland and inshore categorised waters. Its field-proven, shallow-draft catamaran hull and modular construction deliver versatility, configurability and performance across a wide range of applications.
- Modular design approach, featuring demountable demi-hulls and varied hull-spacing from a single platform design.
- Zero-emission, 24vDC battery-electric powertrain with 6kWh capacity, enabling day-works endurance and rapid recharging.
- Twin 2.5kW fixed pod drives with rim-driven propellers, ideally suited for operation in shallow and turbid waters.

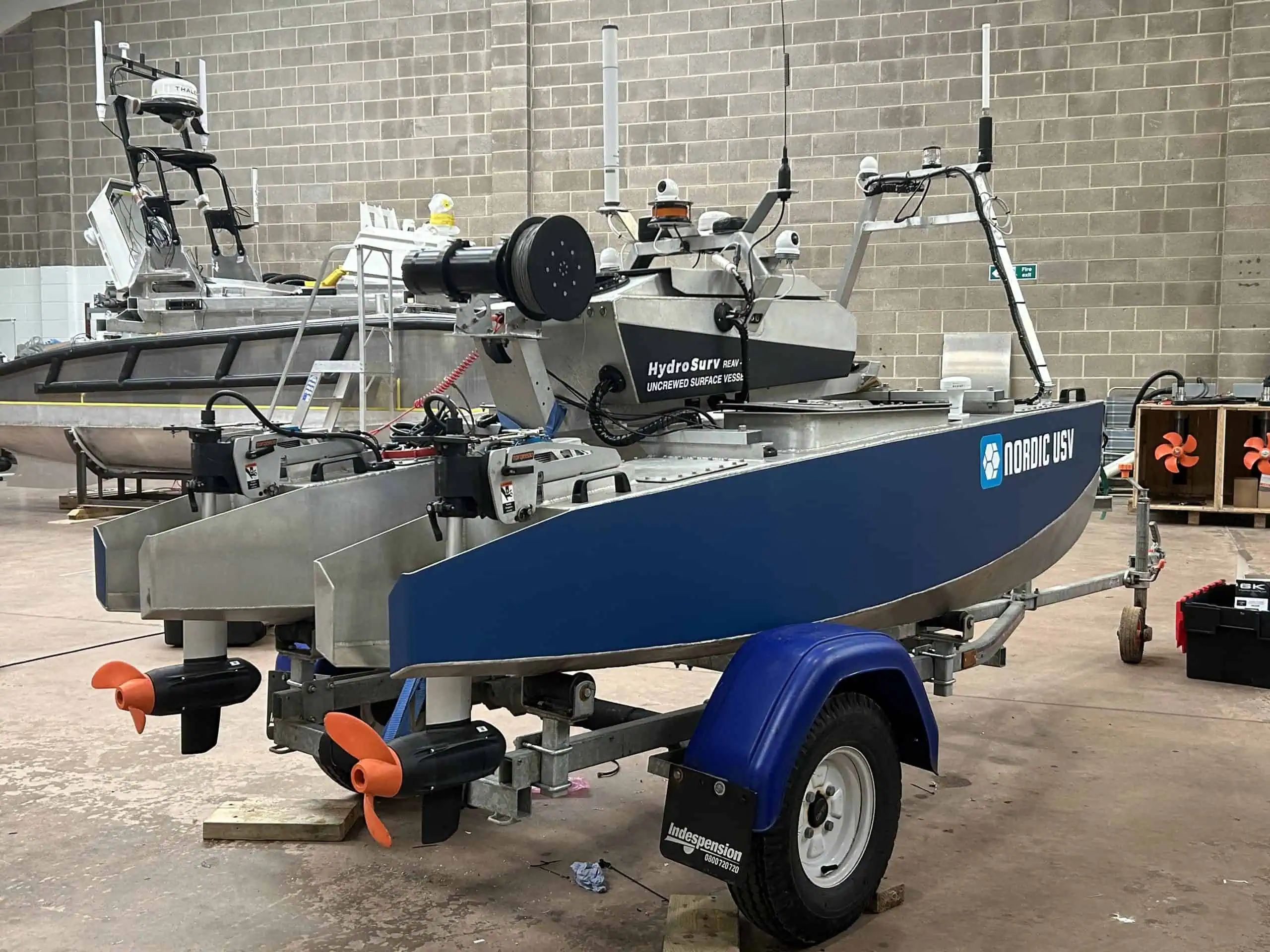

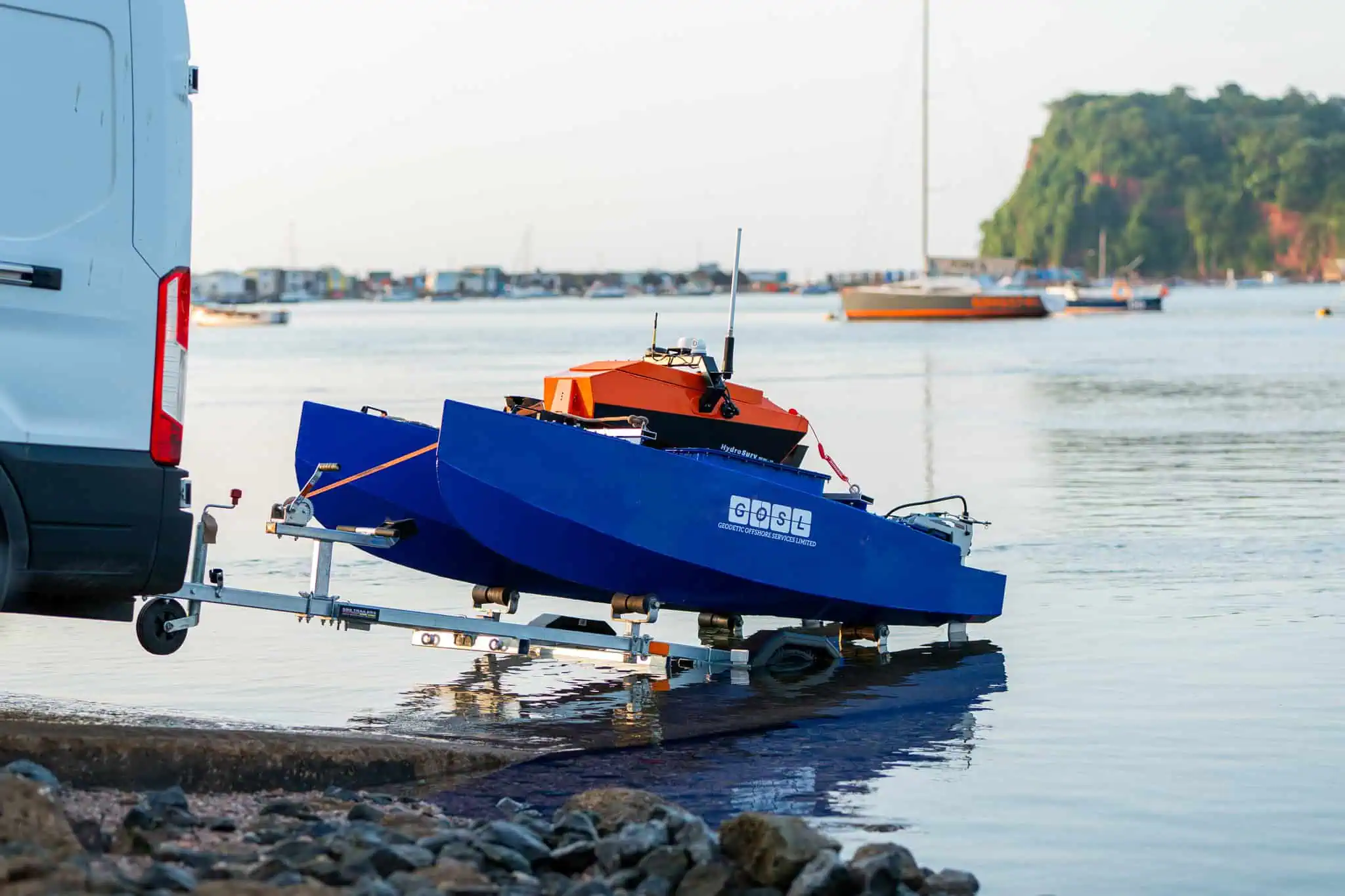

- Readily portable with small trailers, and easily launched and recovered from challenging worksites.
- Ideally suited to Line of Sight (LoS) survey operations from the adhoc shorebased control stations, or Remote Operations Centres.
Technical specifications
| Specification | Value |
|---|---|
| Length Overall | 2.85 m |
| Lightship Draft | 0.45 m (including outboard skeg) |
| Lightship Displacement | 200 kg |
| Hull Form | Symmetrically-hulled catamaran |
| Construction | 5083 marine-grade aluminium alloy |
| Propulsion | 2 × Torqeedo Ultralight 1103 (1.1 kW each) |
| Battery Capacity | 4.91 kWh |
| Maximum Speed | 6.0 knots |
| Communications | 2.4/5 GHz radio, 4G/LTE, and Starlink with network management system |
| Payload Capacity | 50 kg |
