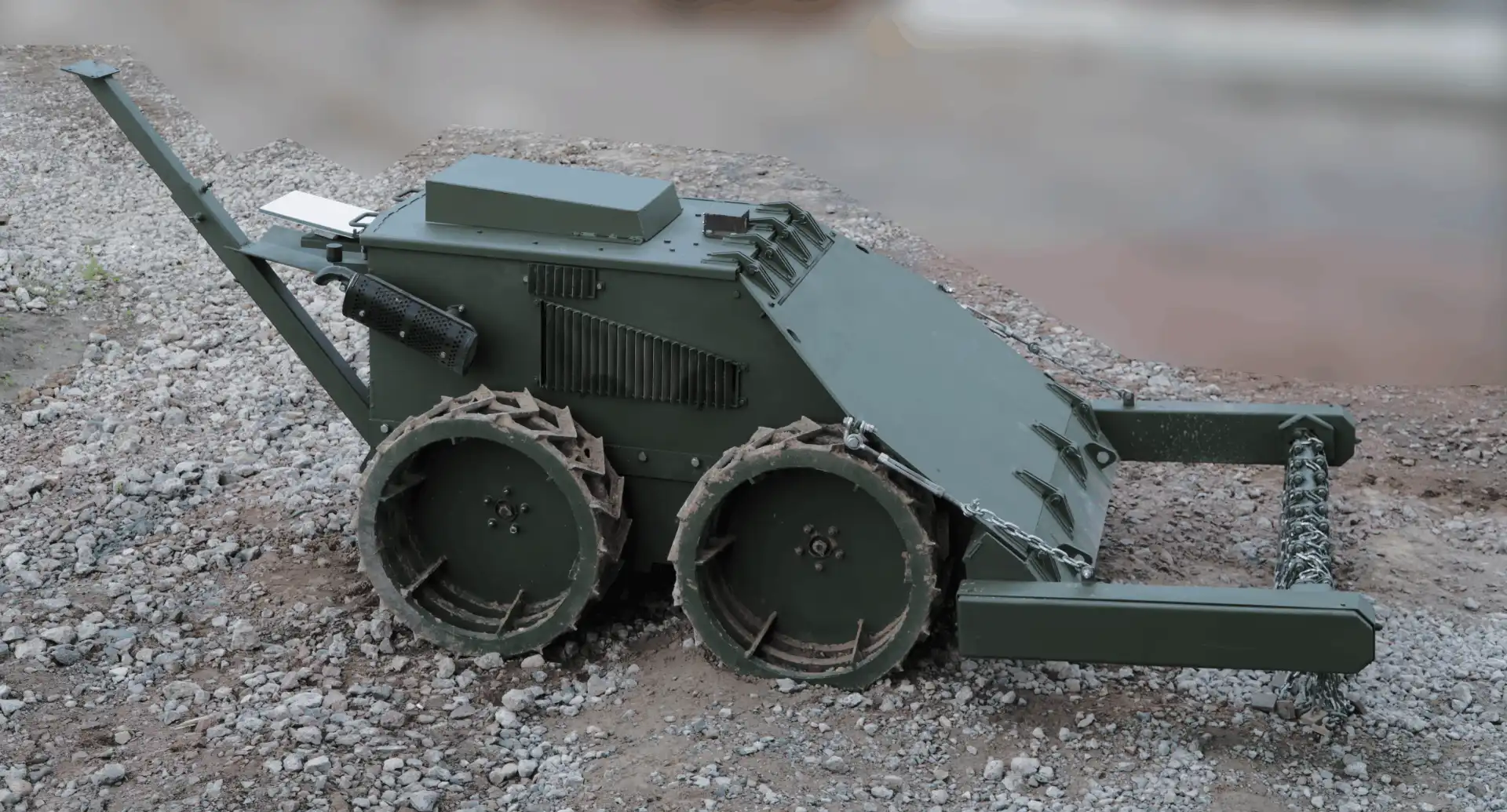

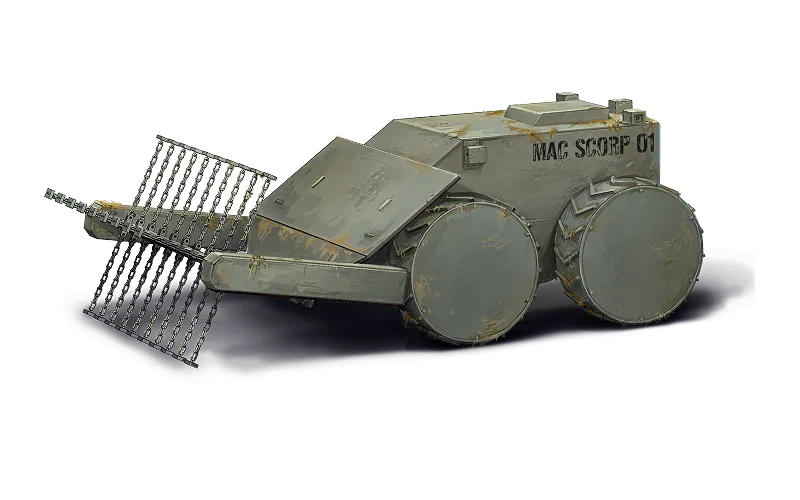

SCORP 01
Demining Robot
Product descripton: SCORP 01 by MAC HUB
The SCORP 01 all-wheel-drive robotic platform is designed for the mechanical destruction of mines and explosive objects.
Technical specifications
| Parameter | Specification |
|---|---|
| Weight | 1600 kg equipped, 1700 kg full |
| Max. speed | 7 km/h on roads, 3 km/h off-road |
| Demining area | 2.5 hectares |
| Operating principle | The SCORP 01 all-wheel-drive robotic platform is designed for the mechanical destruction of mines and explosive objects. |
| Terrain capability | The all-wheel-drive platform and high-mobility wheels allow operation even in the most difficult conditions. |
| Reliability and Repairability | The design is engineered with parts availability and ease of repair in mind. Even in the event of an anti-tank mine explosion, the system can be quickly restored. |
| Operator Interface | User-friendly interface for control, target designation, and area processing; Ability to monitor GPS-processed areas; Ability to set routes and work sectors; Creation of processed area maps with upload of visual data and coordinates; Autopilot for large-area processing in groups of 5/10/20 units per sector; Self-determination within assigned task sectors |
| Communication Channels | ELRS 2.4 GHz; LTE; Starlink |
| Control | Manual and software (automatic) |
| Monitoring Systems | Engine health and fuel level monitoring |
| Cameras | Daytime Full HD and thermal imaging camera 640×512 |
| Navigation | GNSS RTK |
| Reliability | 400 hours MTBF, 1 year warranty |
