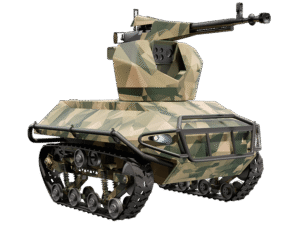

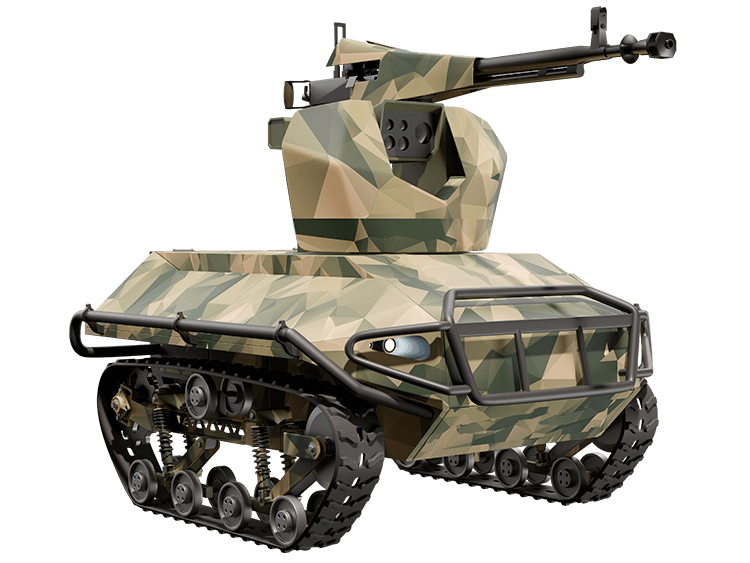

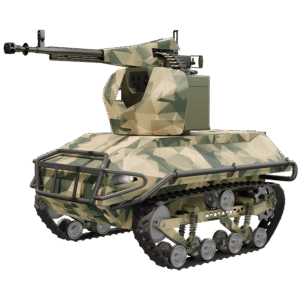

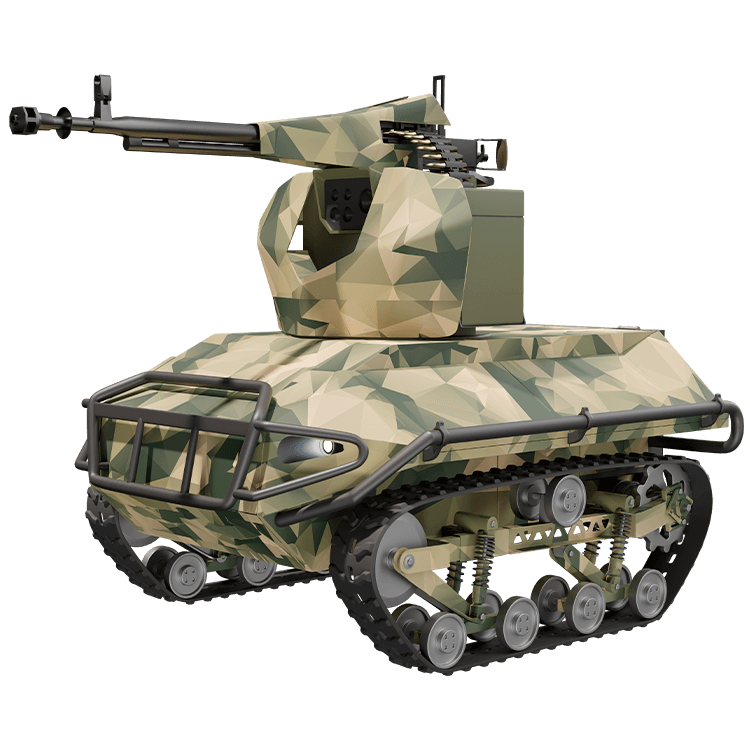

Scorpio 2
Product descripton: Scorpio 2 by TEMERLAND
The new unmanned development Scorpio 2 is a multifunctional robotic platform with the following functionality:
- robot carrier for robots – satellites
- drone launcher – basing point for drones
- platform for installing an automatic turret
- тtractor for processing agricultural land
This platform is a lift for four robots – satellites. The satellites carry out monitoring and repeater functions to increase the communication range between the operator and the «mother» unmanned robotic platform.
The satellite`s lifts are mounted on the rear of the platform and perform the function of lowering down / lifting the satellites from the platform to the ground. The lifts are controlled remotely from a portable command control panel.
One is designed as a ground platform for basing and thrower the drones – bionic birds – SmartBird robots. After launching from a ground platform, the drone performs its functions – a liaison, reconnaissance or strike. Recharging of such drones when performing tasks is carried out on power lines.
The drone launcher is mounted on the top of the platform and has a 360o rotation function. The drone launcher is controlled remotely from a portable command control panel.
The multifunctional fire support and reconnaissance tool of the company level – a battalion for protecting the perimeter and borders:
- provides maneuver with fire
- used to strengthen the platoon (squad) with a machine gun / grenade launcher on a mobile platform
- builds a more effective line of fire during active defense of the company in the presence of three or more units of this equipment
The use of the Scorpio 2 in peacetime is the “tractor” of the plow for processing agricultural land. Due to its maneuverability and small dimensions, it`ll be indispensable for processing small fields and hard-to-reach areas. The use of electric rocket instead of fuel will contribute to the economically rational use of this platform by farms.
- 2 on-board computers NVIDIA Jetson for:
- road tracking
- processing objects and obstacles by a neural network from all sides
- 2 programmable PLC controllers to control:
- movement by a robotic platform
- turret control
Technical specifications
Autonomous control:
SMART TRACK
– movement behind the driving car / object
by GPS
– patrolling the perimeter
– movement from point to point
– return “home” when the control channel is lost
without GPS
– movement during the work of electronic warfare
Remote control:
locally (line of sight): gestures, voice, leash
remotely: from an operator station, from a tablet, from a quadrocopter
Real control range: 1 – 2 km
SCADA SIEMENS WinCC OA based dispatch system
- parameterization
- parameter monitoring
- setting the route
- route transfer
- BRP tracking
Management Visualization
- smart glass
- smartphone
- the tablet
- RS Communication channel: WiFi 5GHz
| Mover | crawler |
| Powertrain | 2 * 5 kW |
| Unit power, hp | 20 |
| Supply Voltage, V | 48 |
| Drive unit | hybryd |
| Battery capacity to provide power, Ah | 2 * 60 |
| Fuel | |
| Working temperature, °С | from – 25 ° to + 60 ° |
| Degree of protection | IP65 |
| Platform body material: | 2 mm steel |
| Overall dimensions of the platform (WxHxD), mm | ….х….х…. |
| Overall dimensions with turret (WxHxD), mm | ….х….х…. |
| Clearance mm | 140 |
| Platform weight, kg (without weapons and ammunition) | 370 |
