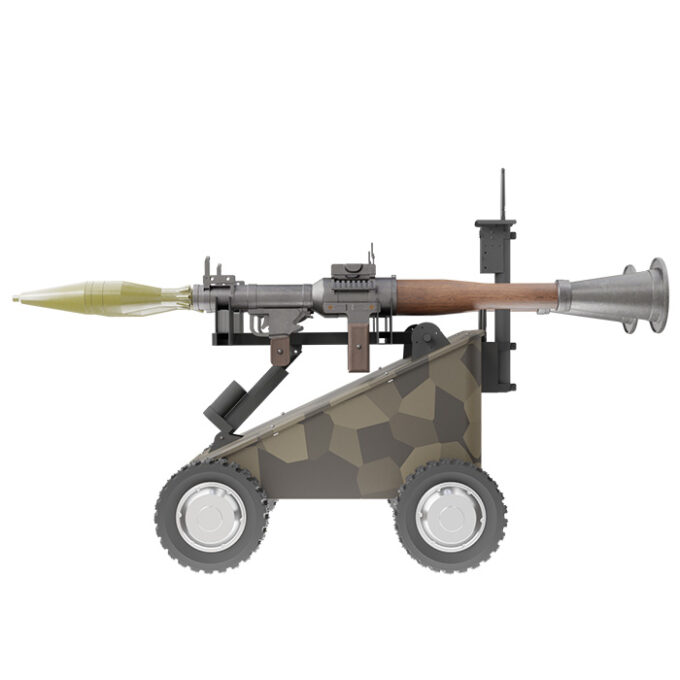

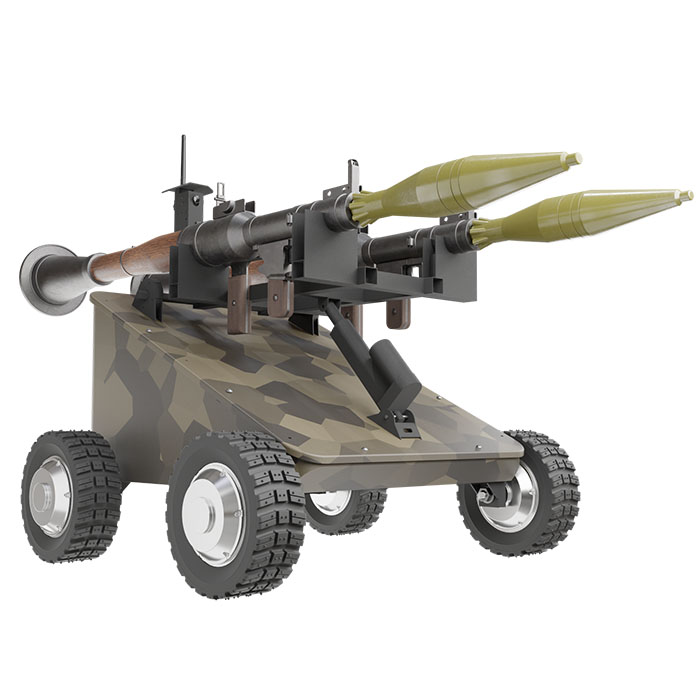

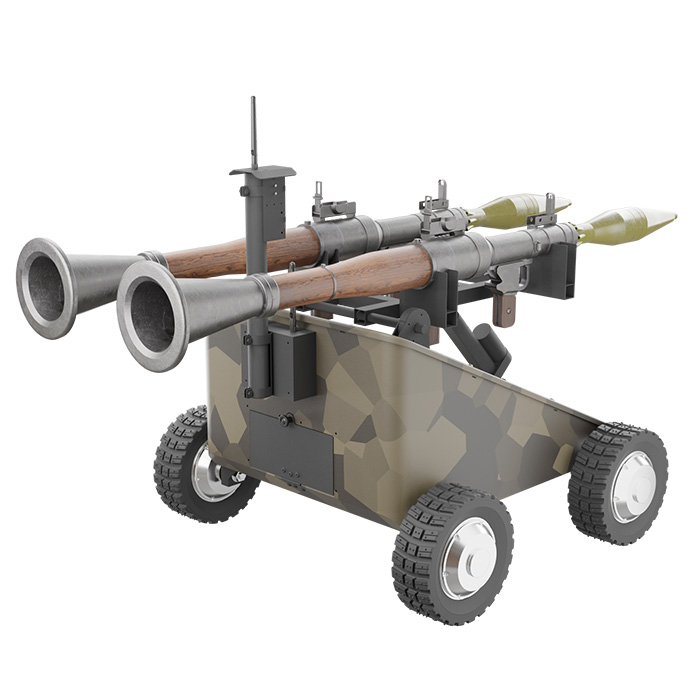

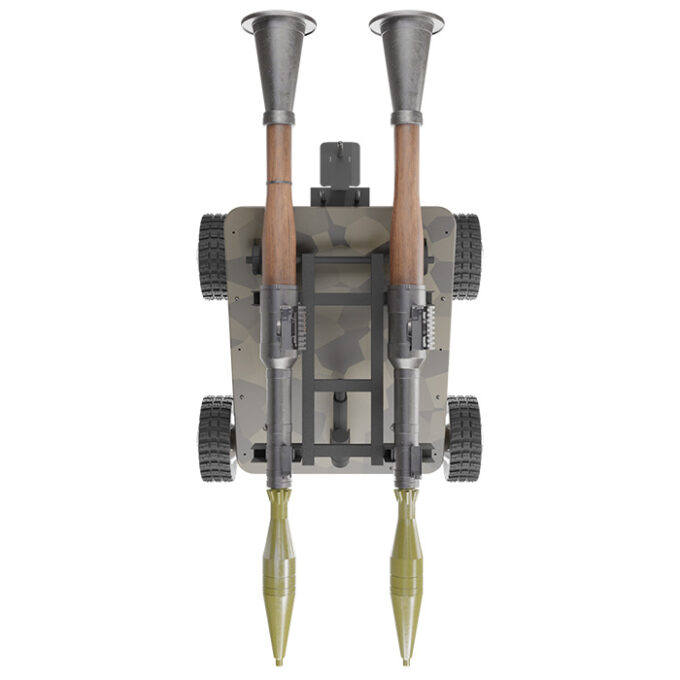

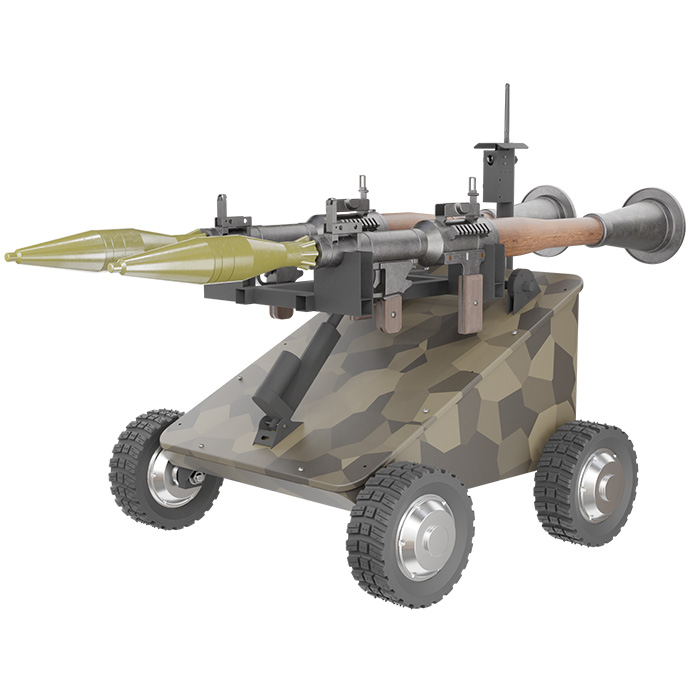

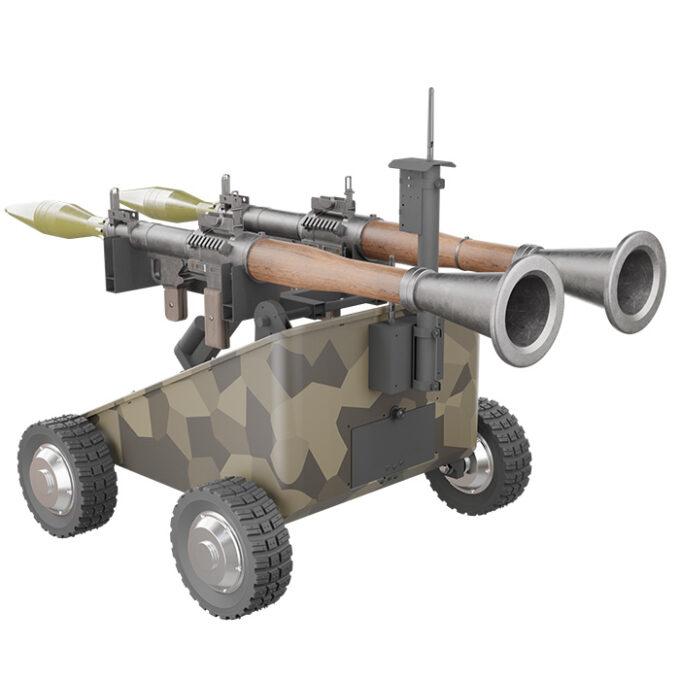

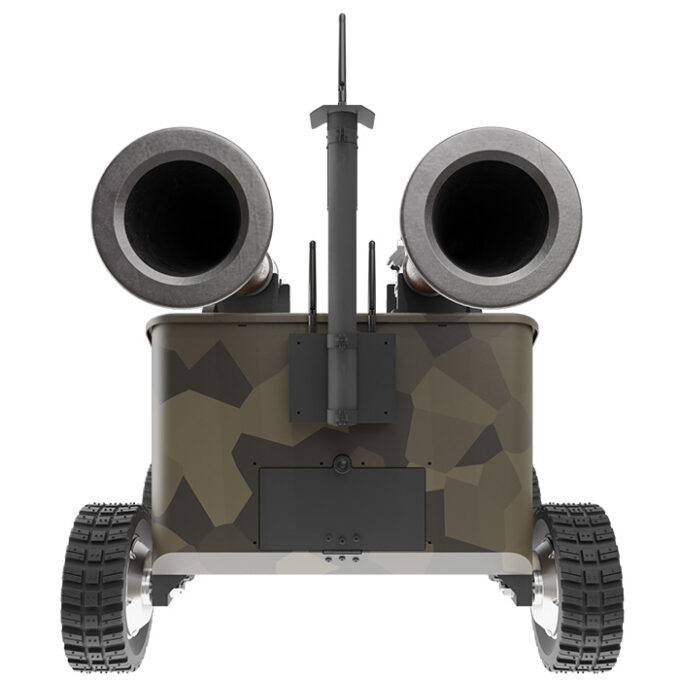

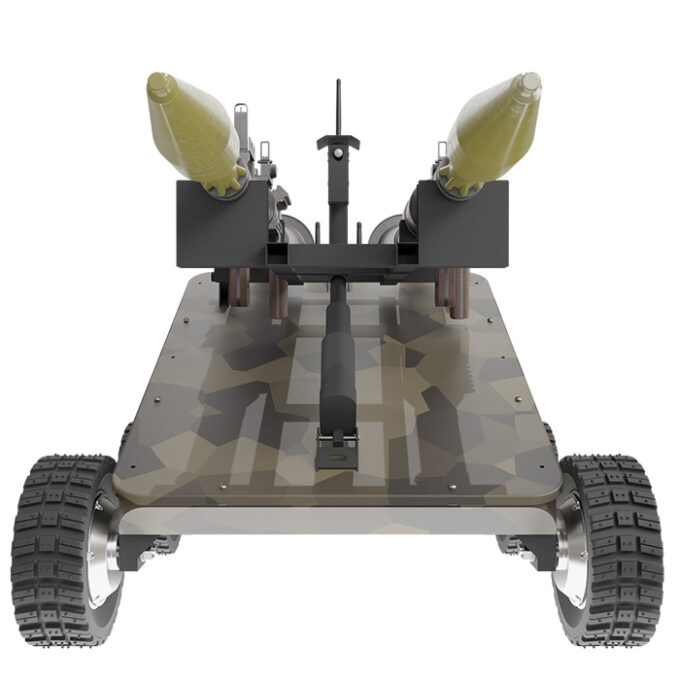

Self-propelled platform of Gnomes from RPG7
Product descripton: Self-propelled platform of Gnomes from RPG7 by TEMERLAND
Engineering robotic platform Gnome with a combat module under RPG: was developed at the request of the SSO of the Armed Forces of Ukraine, and was successfully used in the eastern direction of the Ukrainian Front during defensive and offensive operations.
Roles:
- means for defeating both manpower and armored vehicles;
- distraction.
Main advantages:
- obscurity;
- silence;
- load capacity;
- suddenness;
- convenience for transportation.
Technical specifications
| Name | Meaning |
| LxWxH | 740x650x550 (mm.) |
| Height with mast | up to 900 mm |
| Speed | up to 5.5 km/year. |
| Ground clearance | 123 mm |
| Direct control range/via repeater | 800/1500 m |
| Video | analogue |
| Operating time | up to 2 hours |
| Platform weight | 63 kg. |
| Ability to operate under the influence of electronic warfare | up to 150m |
| Survey camera (analog): – кути огляду |
4:3 FOV-H: 100° / FOV-D: 125° 16:9 FOV-H: 100° / FOV-D: 115° |
| Aiming camera: – optical zoom – day/night mode |
-25х; – automatic (IR); |
| Possibility of installing weapons RPG-7 grenade launcher | 2 pcs. |
| Thermal imager | (at customer’s request) |
