SHMAVIK
Long-Range Reconnaissance UAV Platform
Product descripton: SHMAVIK by Reactive Drone

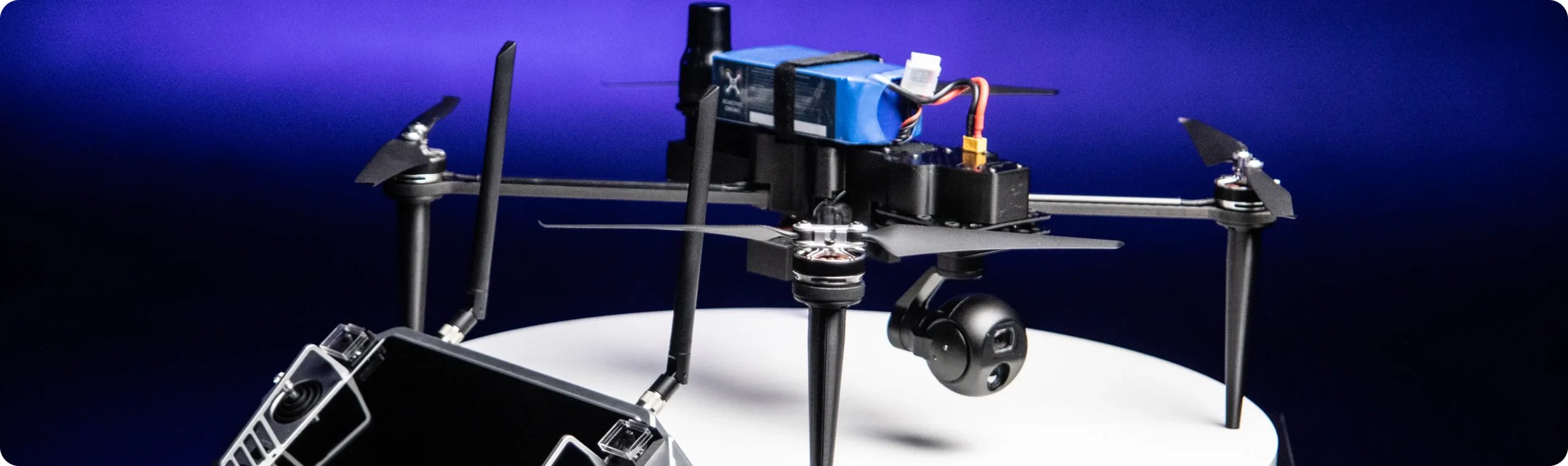

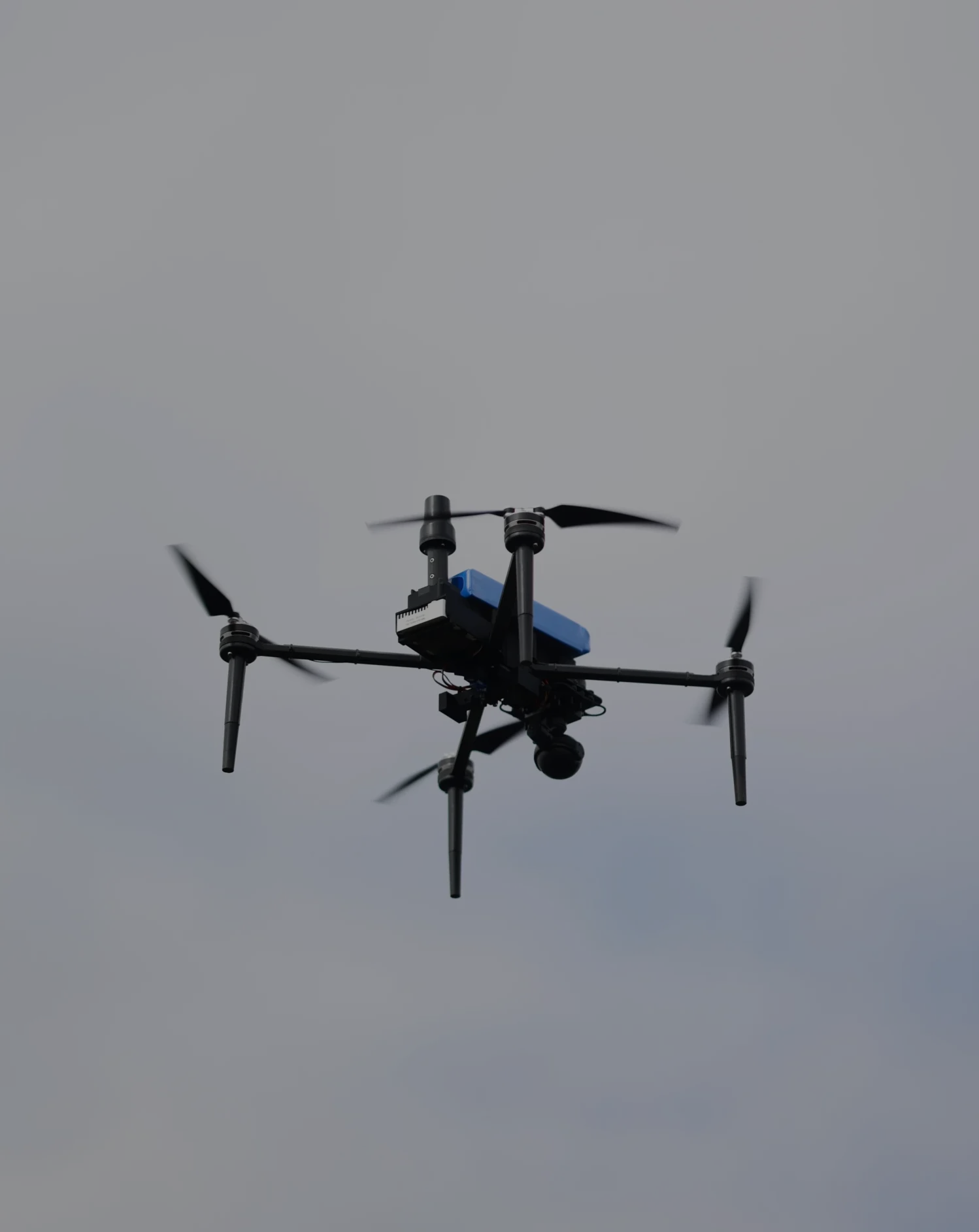

SHMAVIK is a compact reconnaissance UAV designed for extended flight, aerial observation, and real-time video transmission in demanding operating environments. The platform combines a lightweight airframe, interference-resistant dual-channel communications, GNSS navigation, and AI-assisted optical or infrared imaging.
Key Features
- Flight time up to 60 minutes
- Operational range of 15+ km
- Maximum altitude up to 1,500 m
- Operating altitude of 150–250 m
- Maximum speed of 25 m/s (90 km/h)
- Interference-resistant dual-channel control and video links
- Encrypted digital communications
- Interference-resistant GNSS navigation
- Daylight optical camera with zoom and AI
- Optional daylight + infrared imaging with AI
- Compact dimensions and rapid deployment
- Payload/drop system supporting loads up to 1 kg
Technical specifications
| Parameter | Specification |
|---|---|
| UAV Type | Reconnaissance UAV |
| Operational Range | 15+ km |
| Flight Duration | Up to 60 min |
| Operating Altitude | 150–250 m |
| Maximum Flight Altitude | Up to 1,500 m |
| Maximum Speed | 25 m/s (90 km/h) |
| Operating Speed | 15–25 m/s (54–90 km/h) |
| Permissible Wind Speed | Up to 12 m/s |
| Control Channel | Dual-channel 2.1–2.8 / 4.9–6.0 GHz, interference-resistant |
| Video Transmission | Dual-channel 2.1–2.8 / 4.9–6.0 GHz, interference-resistant |
| Navigation | Interference-resistant GNSS module |
| Camera Options | Daylight optical zoom + AI / Daylight + infrared + AI |
| Payload Capacity | Up to 1 kg |
| Dimensions | 420 × 420 × 200 mm |
| Propeller Diameter | 335 mm |
| Battery | 6S, 10/12 Ah Li-Po, 25C, XT60 |
| Weight Without Battery | 1.4 kg |
| Weight With Battery | 2.4 kg |
