Taira
Product descripton: Taira by TEMERLAND

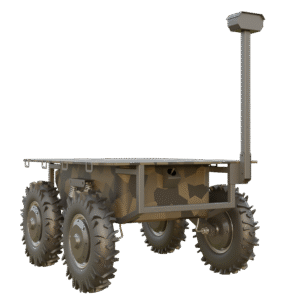

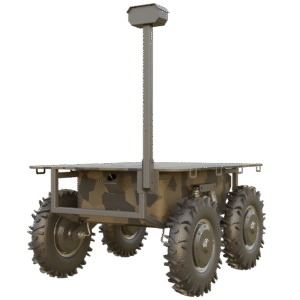

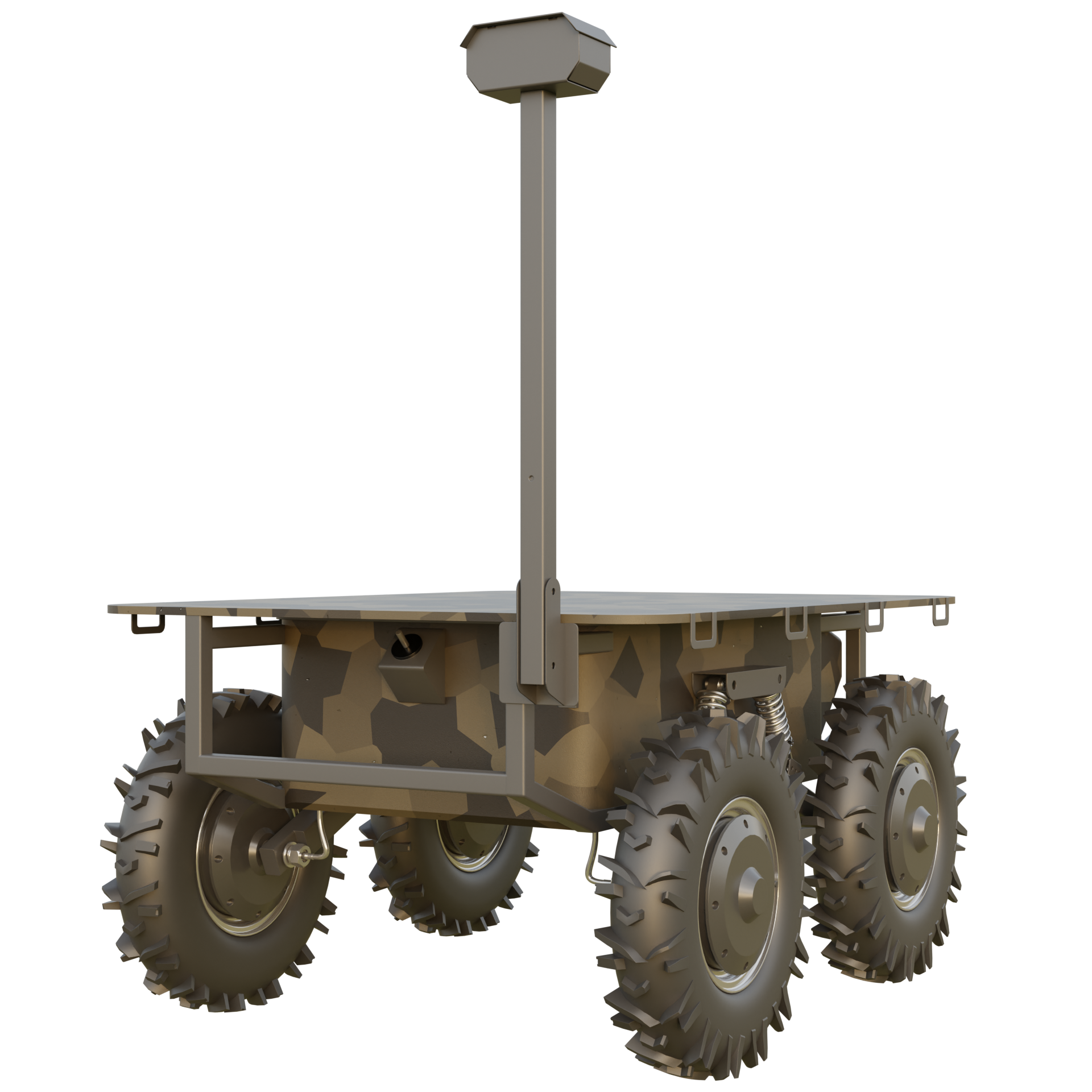

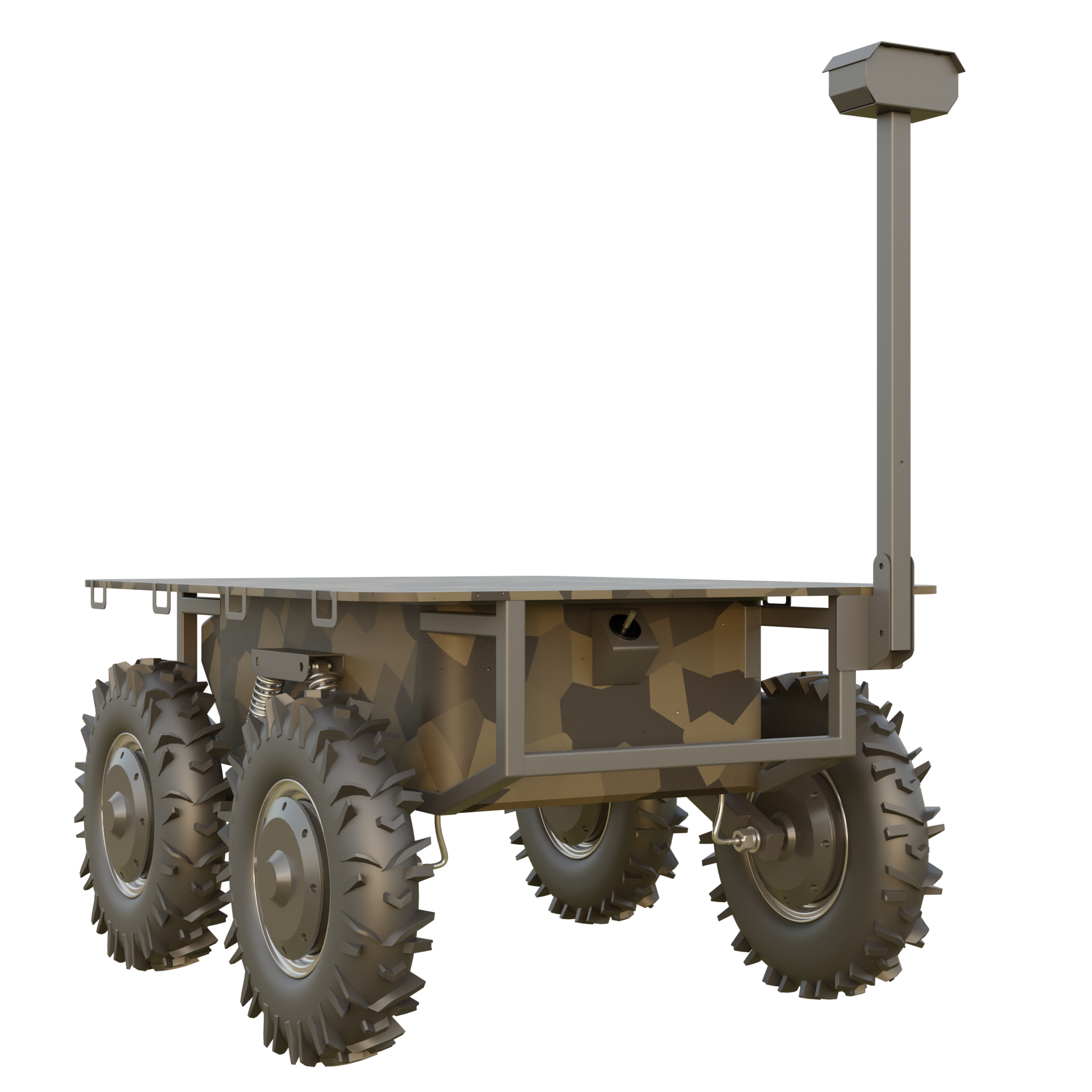

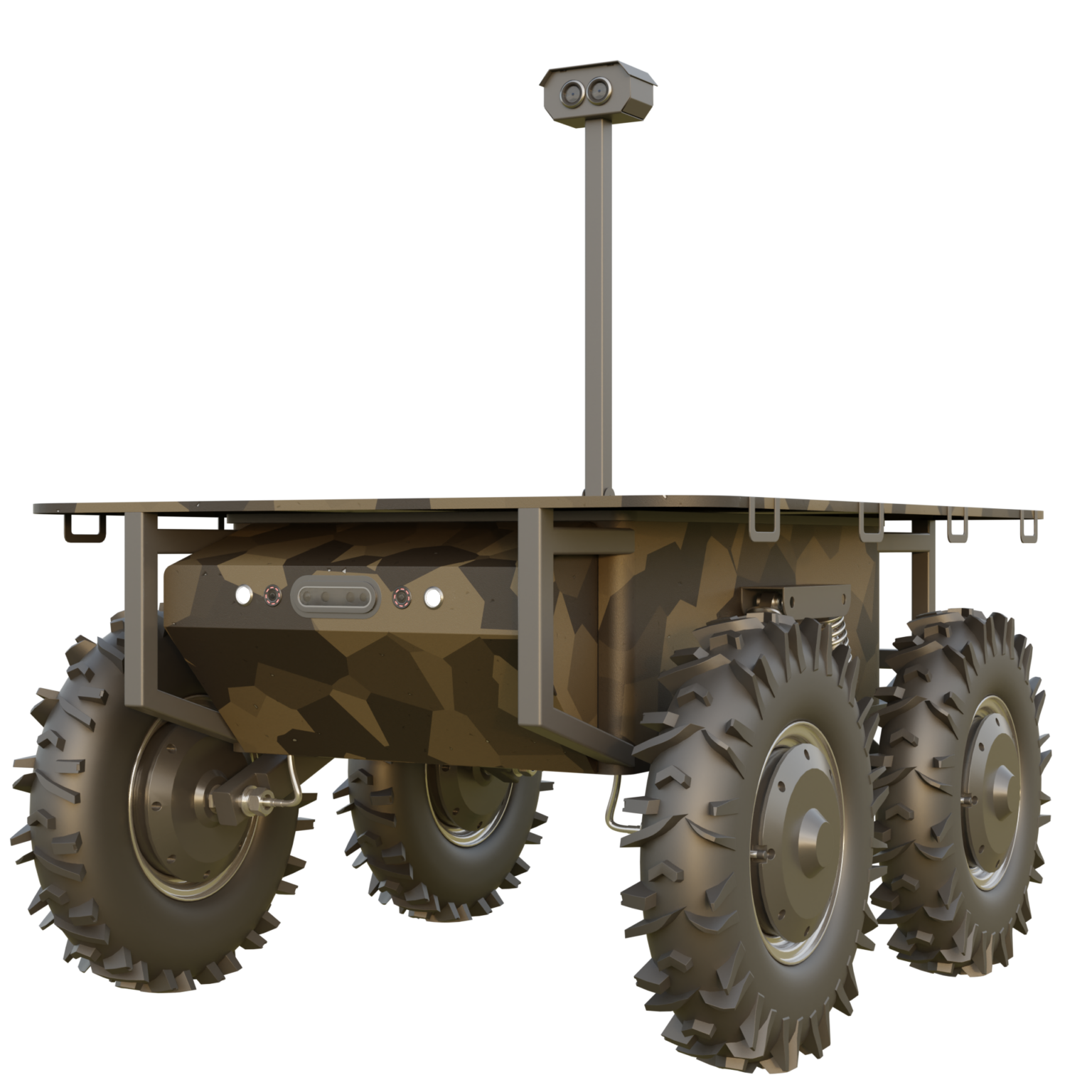

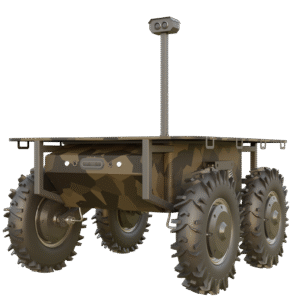

Tyra is a Ground Robotic Platform (GRP) capable of replacing 4–6 personnel fighters who may risk their life and health during the evacuation of 300 brothers. Evacuation takes place with the help of an evacuation trailer attached to the platform mount. The Tyra GRP itself allows you to perform field supply tasks in the red and shot areas of the battlefield, deliver BC, mines, provisions, weapons and other important things on the battlefield using a remote control system.
Key benefits:
- passability;
- silence;
- low visibility;
- application safety for the operator;
- autonomy up to 8 hours;
- modularity.
Tyra ground robotic platform performs the tasks of medical evacuation with the help of a passive evacuation trailer. The evacuation mechanism was tested in difficult terrain conditions and received a positive assessment from medical instructors, who confirmed the feasibility of using Tyra’s GRP according to intended evacuation missions.
Technical specifications
| Name | Value |
| LxWxH, (NRP Taira) | 1200 mm x 800 mm x 500 mm |
| Height with mast | 900 mm |
| Clearance | 230 mm |
| Tyra platform weight | 120 kg |
| Evacuation trailer weight | 30 kg |
| Load capacity (on platform) | 150 kg |
| Carrying capacity (on trailer) | 180 kg |
| Speed | Up to 7 km/h (adjustable) |
| Control range (directly from the remote control driving under conditions of direct visibility) |
Up to 800 m |
| Control system frequency range | VHF – control channel; 5400 MHz – 6000 MHz and 910 MHz – 1360 MHz – video channel (analog) |
| Camera type | Wide-angle analog camera |
| Management during EW operation | Up to 150m |
| Main battery | 42V 60 A*h |
| Additional quick-change battery (optional) | 42V 60 A*h |
| Control Types | Remote control with portable control panel; local control by leash. |
| Platform uptime | 8 hours |
| Control panel operation time | 8 hours |
| Maximum mileage on one charge | 20 km and 40 km (with additional battery) |
| Charger | 10 A*hours |
| Charging speed | Each battery for 6 hours |
| Temperature operating mode | -15…35 degrees |
