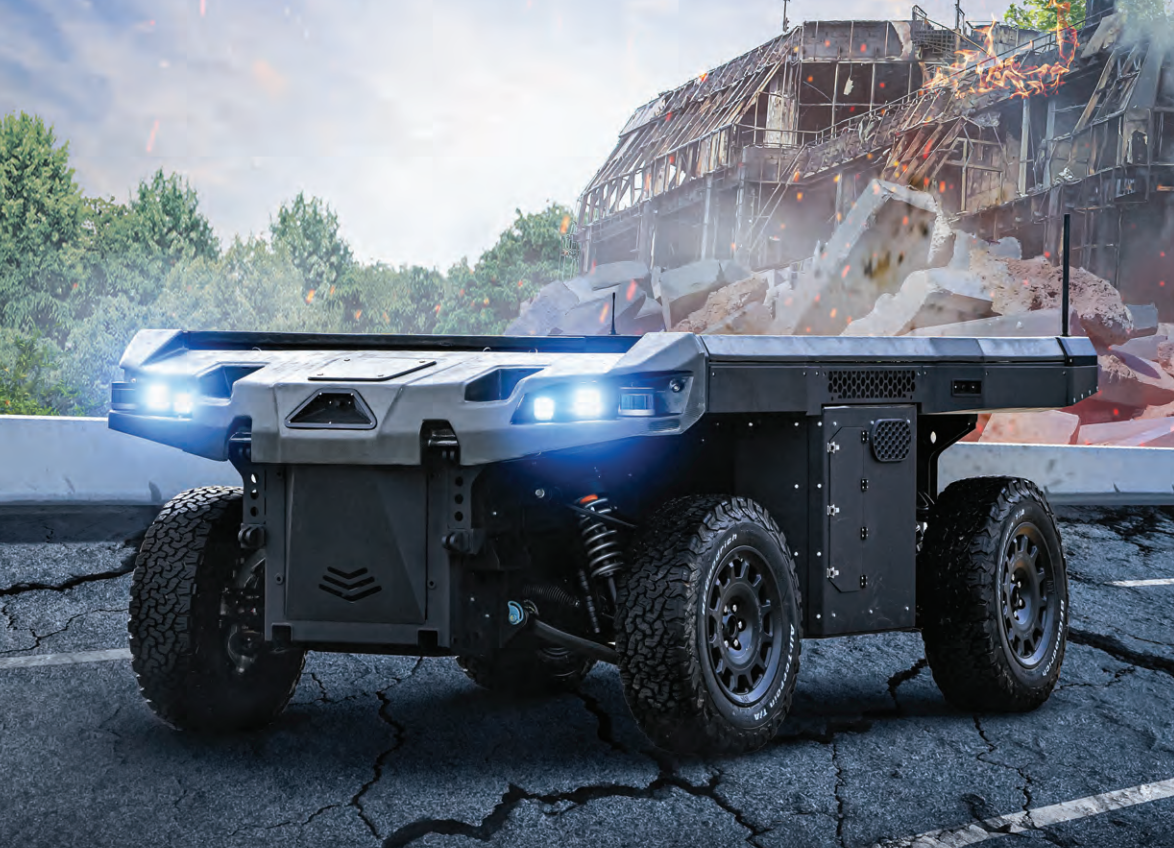

TAURUS UGV
Product descripton: TAURUS UGV by ST Engineering
TAURUS is a multi-role Unmanned Ground Vehicle (UGV) featuring a customizable modular architecture and advanced mobility through integrated technologies, providing exceptional operational adaptability. This next-generation, fully electric autonomous platform is centrally controlled and delivers decentralized power while supporting a wide range of missions, including surveillance, logistics, material transport, disaster response, industrial operations, and event security.
The platform is highly transportable and towable, incorporating regenerative charging while on the move to maximize operational endurance and energy efficiency.
Typical Applications
- Disaster Response
- Natural disasters
- Wildfires
- Landslides
- CBRNE incidents
- Industrial & Commercial Operations
- Farms
- Warehouses
- Ports and docks
- Construction sites
- Security & Critical Infrastructure
- Military camps
- Critical energy infrastructure
- Large public events
Technical specifications

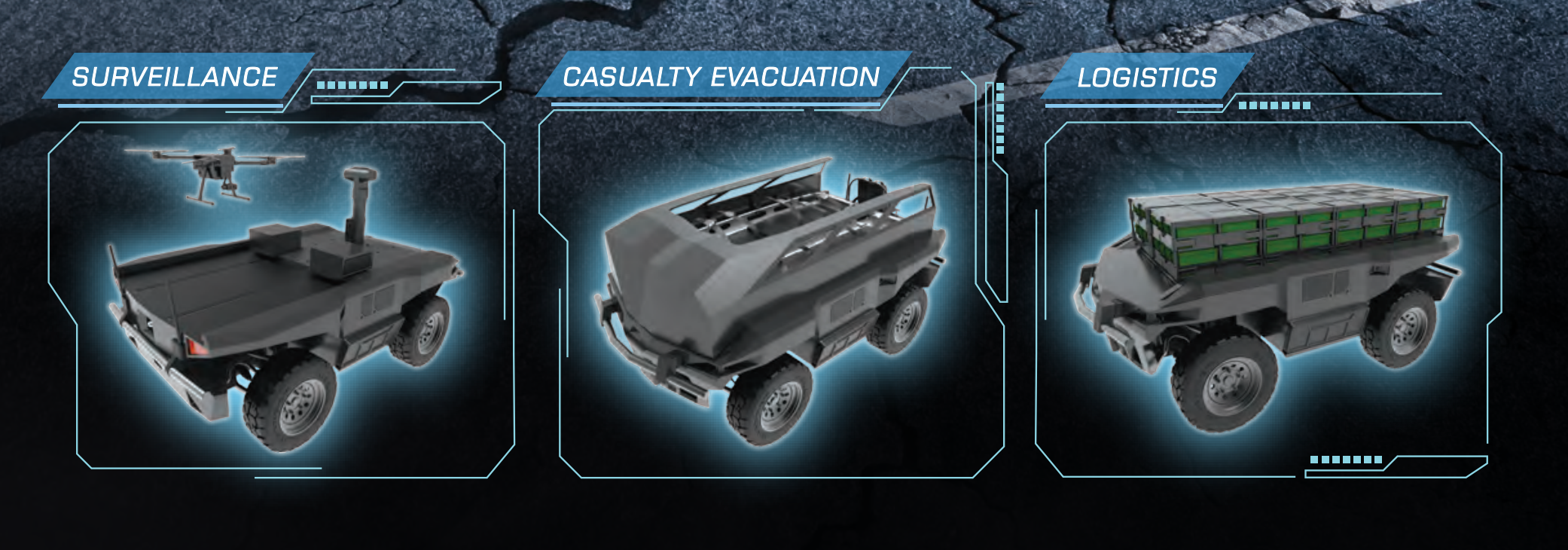

Payloads & Use Cases
Security Patrol / Surveillance
- Tethered Drone
- Extends surveillance coverage
- High-Resolution PTZ Camera
- Detects and reports potential threats or suspicious activities
- Legged Robot
- Extends surveillance beyond roads and into built-up areas
Logistics Transport
- Logistics Rack
- Foldable cargo rack
- Accommodates additional payloads after resupply or transport missions
Casualty Evacuation
- Personal Stretcher
- Casualty evacuation
- Transport of injured personnel to medical facilities
- Foldable Medic Seat
- Rider seat for paramedics
Material Handling
- Robotic Arm
- Integrated camera
- Spotlight
- Force sensors
- Dedicated material-handling capability
- High-Resolution PTZ Camera
- Provides visual overview
- Generator Set (Genset)
- Extends operational endurance
Key Features
Regenerative On-the-Move Power Hub
- Towable platform with regenerative charging
- Can function as a mobile generator to recharge other assets (e.g., UxVs)
Wire-Driven Control / X-by-Wire
- Autonomous platform control
- Enhanced control capabilities
- Fail-safe braking system using off-the-shelf (OTS) components
Electric Performance
- Fully electric all-wheel drive and all-wheel steering
- Independent drive units
- High-voltage power supply with support for range extenders
- DC and/or AC export power capability
Customizable Mobility
- Digitalized vehicle architecture
- Ready for integration of autonomous functions and AI modules
Technical Specifications
| Category | Parameter | Specification |
|---|---|---|
| Dimensions | Length | 2,950 mm |
| Width | 2,100 mm | |
| Height | 1,100 mm (Deck height: 975 mm) | |
| Weight | Curb Weight | 1,650 kg |
| Gross Vehicle Weight | 2,650 kg (up to 2,900 kg*) | |
| Mobility | Drive | 4×4 electric drive |
| Maximum Speed | 40 km/h | |
| Maximum Towing Speed | 80 km/h | |
| Maximum Gradient | 60% | |
| Side Slope | 30% | |
| Turning Radius | 5 m curb-to-curb | |
| Range | 40 km (fully electric); >100 km (with range extender) | |
| Power & Communications | Exportable Payload Power | Up to 20 kW (configurable, DC/AC) |
| Teleoperations Kit | 2.4 GHz radio communications; up to 1 km line-of-sight; control tablet (minimum 7-inch screen) | |
| Configurable Add-ons | Optional Equipment | • Range extender (battery/genset) • Autonomy suite (follow-me, waypoint navigation, obstacle avoidance) • Airless tires |
* Reduced mobility.
