TURAN
Product descripton: TURAN by TEMERLAND

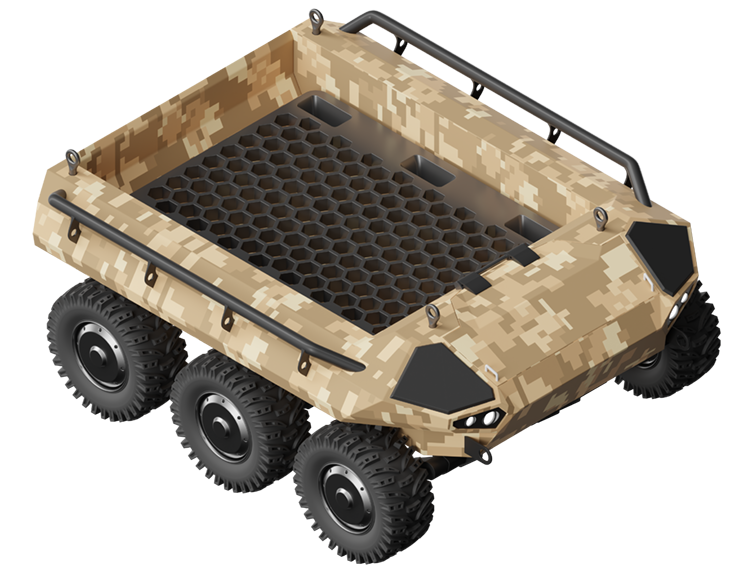

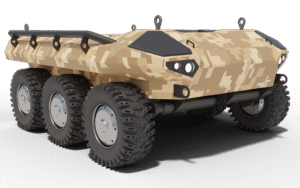

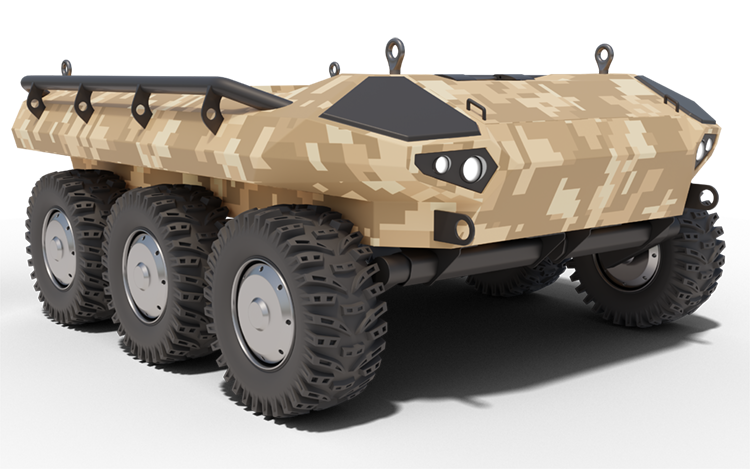

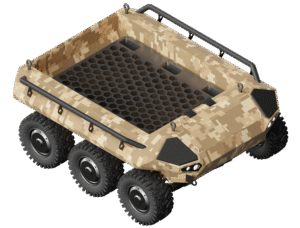

Unmanned Logistic Robotic Platform TURAN
The new unmanned TURAN is a multifunctional robotic platform with the following functionality:
- transportation of logistics cargo
- food and ammunition delivery
- transportation of the wounded
Logistic
TURAN robotic platform is used for transportation of NATO standard logistics pallets 1200 × 1000 mm and weighing up to 500 kg.
Food and ammunition delivery

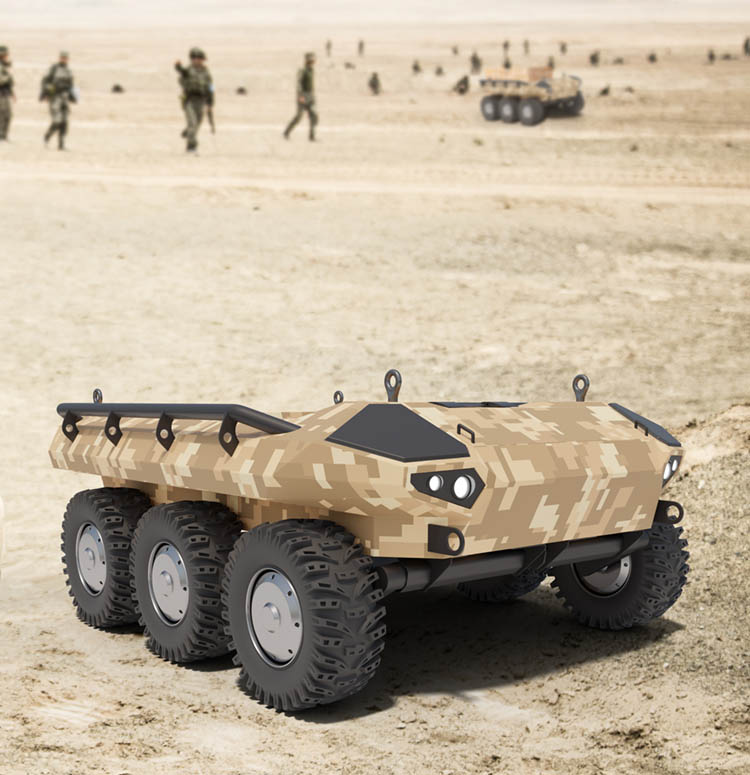

Delivery of food and ammunition in combat using unmanned platforms TURAN significantly reduces the risk of loss of military personnel. The small size and low noise level during the movement of the platform makes it easier to perform hidden combat missions.
Transportation of the wounded
Evacuation of the wounded from the battlefield using platforms makes it possible to reduce losses among military medical personnel.
Technical specifications
Unmanned logistic robotic platform TURAN
2 NVIDIA Jetson on-board computers
- processing of objects and obstacles by a neural network from all sides
- road surveillance
2 programmable logic controllers (PLC)
- motion control of the robotic platform
- direct control of the platform
Autonomous control:
SMART TRACK
- movement behind the driving vehicle / object
- by GPS
- movement from point to point
- return “home” in case of loss of the control channel
without GPS
- movement during electro-magnetic warfare (EW)
Remote control:
- locally (line of sight): gestures, voice, leash
- remotely: from an operator station, from a tablet, from a smartphone, from the quadrocopter
Actual control range: up to 5 km
SCADA SIEMENS WinCC OA based dispatch system
- parameterization
- parameter monitoring
- route assignment
- route transfer
- unmanned robotic platform tracking
Management Visualization
- smart glass
- smartphone
- tablet
- PC
Communication channel:
- WiFi 5 GHz
- Private LTE (option)
Specifications:
| Parameter | Value |
|---|---|
| Chassis | 6 × 6 |
| Power unit | 6 kW |
| Unit capacity | 60 h.p. |
| Power supply voltage | 48 V |
| Drive | Electric + RANGE EXTENDER (diesel generator) |
| Platform speed | < 17 km/h |
| Battery capacity for power supply | < 5 Ah |
| Real control range | 2 × 60 km |
| Working temperature | from -25 to +60 °C |
| Degree of protection | IP65 |
| Platform body material | steel, 2 mm |
| Overall dimensions of the platform (W×H×D) | 1400 × 1600 × 80 mm |
| Communication channel | WiFi 5 GHz, Private LTE (optional) |
| Platform weight (without cargo) | 470 kg |
| Clearance | 140 mm |
| Platform weight (without cargo) | 500 kg |
| Dimensions of the logistic pallet (W×H×D) | 1200 × 1200 × 1200 mm |
