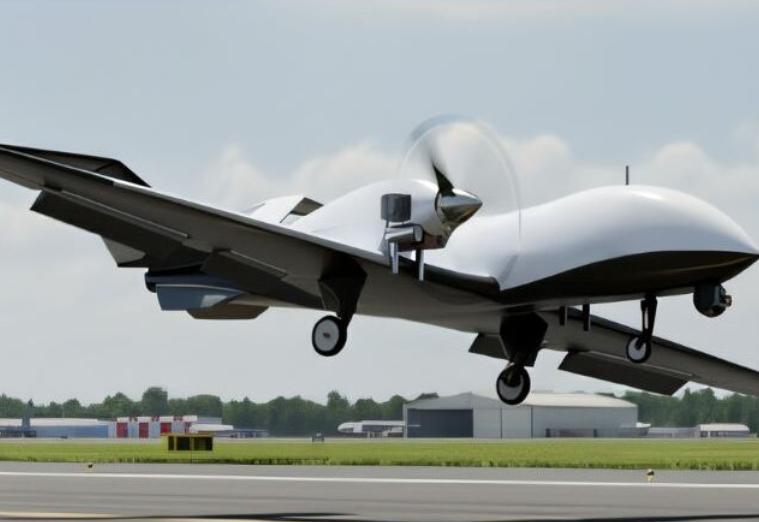

V200 Vantage
Product descripton: V200 Vantage by Volatus Aerospace
The V200 Vantage is a mass-producible, long-endurance fixed-wing UAS designed for strategic-scale surveillance, intelligence, electronic warfare, and multi-mission operations. With an 8 m wingspan, 160 kg MTOW, and dual heavy-fuel propulsion, the platform is optimized for persistent operations over large and remote areas.
The V200 combines up to 35 hours of endurance with a maximum range of approximately 3,500 km. Its modular architecture supports payloads of up to 30 kg, enabling integration of ISR sensor suites, communications systems, auxiliary fuel, and other mission-specific equipment.
Long-Range ISR
Extended-endurance surveillance over large operational areas using modular ISR sensor suites and persistent aerial observation.
Arctic & Remote-Area Surveillance
Long flight endurance and heavy-fuel propulsion support monitoring of remote regions, including Arctic territories, ice routes, and other difficult-to-access environments.
Maritime Monitoring
Wide-area coastal and offshore surveillance for vessel tracking, maritime situational awareness, and monitoring of critical infrastructure.
Border Security
Persistent aerial monitoring across extensive and remote border regions, providing long-range reconnaissance and situational awareness.
Electronic Warfare & Communications
The large modular payload capacity can accommodate specialized EW equipment, communications relay systems, or other mission-specific payloads.
Multi-Aircraft Operations
The V200 is designed to support coordinated deployment of multiple aircraft, enabling scalable operations across geographically distributed areas.
Drone Mothership
The platform is designed to support a mothership role for deploying or coordinating smaller unmanned assets, extending the reach of tactical systems.
Modular Mission Architecture
The V200’s 30 kg payload capacity enables configuration for different mission requirements, including:
- ISR sensor suites
- Communications relay equipment
- Auxiliary fuel systems
- Electronic warfare equipment
- Specialized mission modules
- Drone-mothership configurations
Technical specifications
| Parameter | Specification |
|---|---|
| Aircraft Type | Long-endurance fixed-wing UAS |
| Maximum Take-Off Weight (MTOW) | 160 kg (353 lbs) |
| Wingspan | 8 m (26.3 ft) |
| Maximum Payload | 30 kg (66 lbs) |
| Maximum Endurance | Up to 35 h |
| Maximum Range | Up to 3,500 km (2,174 mi) |
| Range with 30 kg Payload | Up to 2,000 km |
| Cruise Speed | 110 km/h |
| Maximum Altitude | 16,000 ft |
| Propulsion | Dual heavy-fuel engines |
| Mission Architecture | Modular payload configuration |
| Primary Missions | ISTAR, EW, surveillance, communications relay |
| Multi-Aircraft Capability | Coordinated squadron operations |
| Additional Role | Drone mothership platform |
| Production Concept | Mass-producible |
