VYRIY OPTO 15
15-Inch Fiber-Optic FPV UAV Platform
Product descripton: VYRIY OPTO 15 by VYRIY

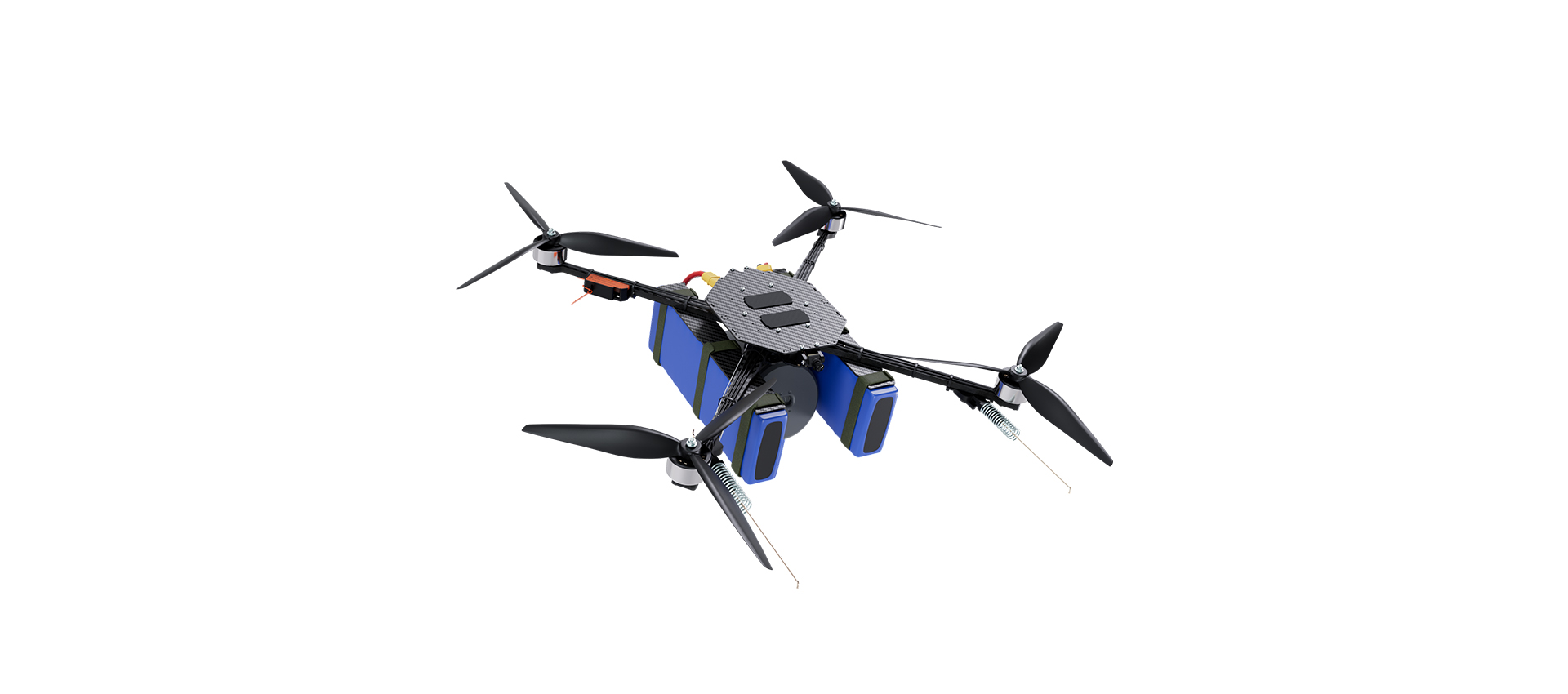

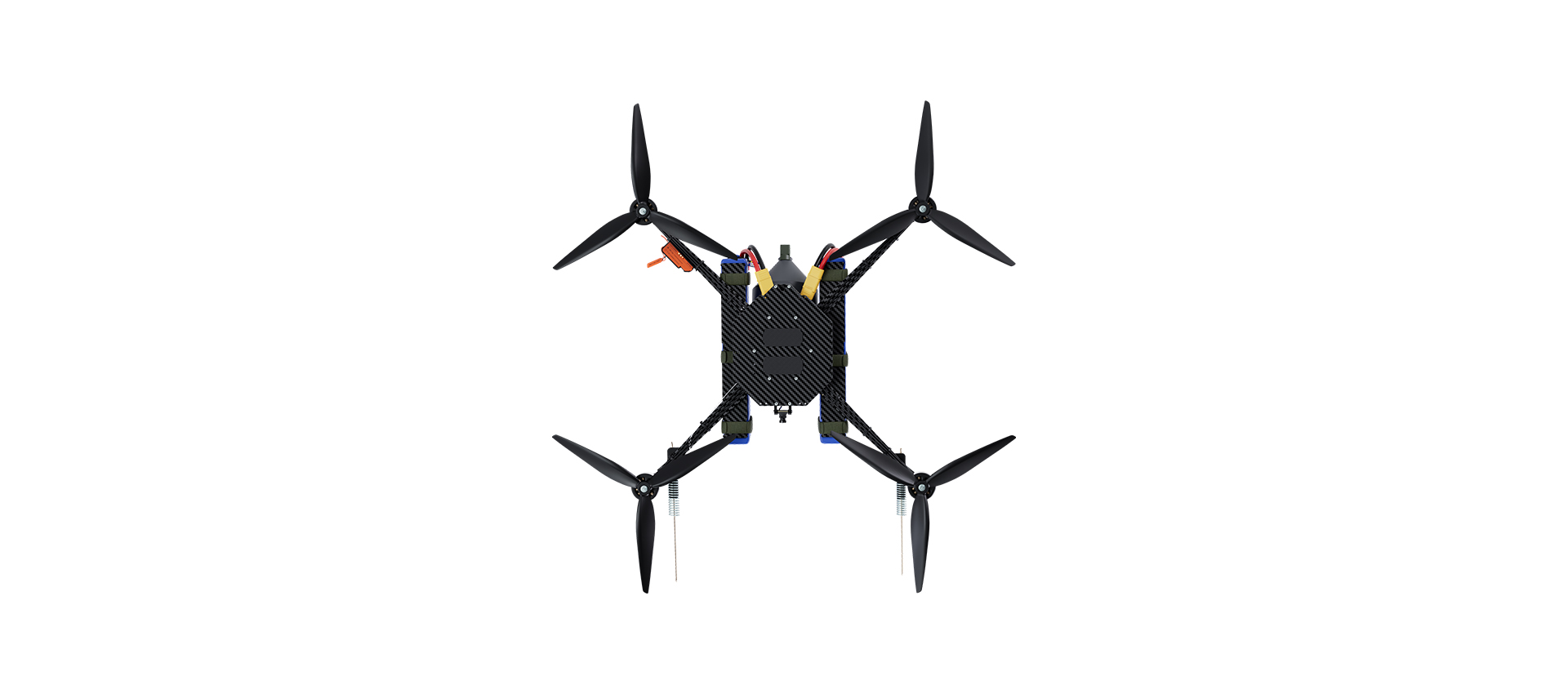

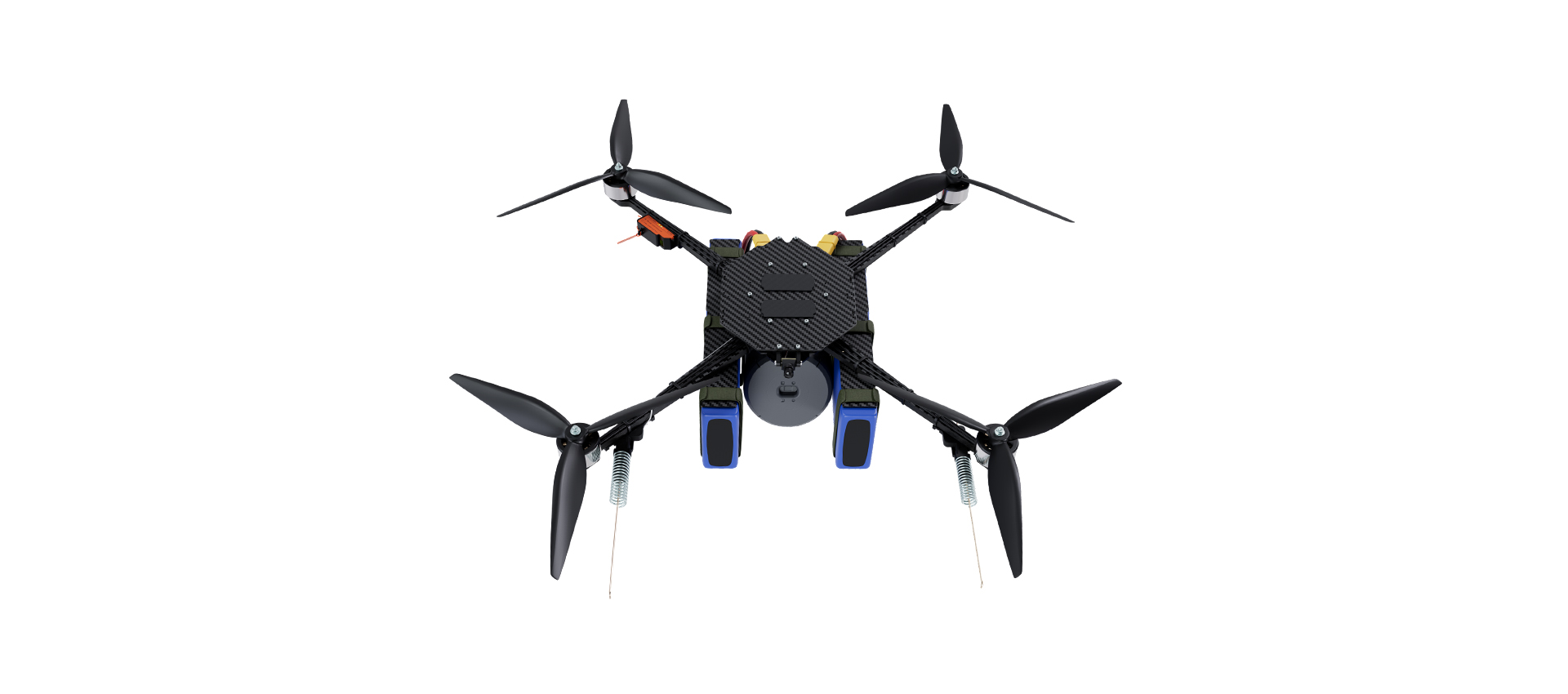

VYRIY OPTO 15 is a 15-inch FPV UAV platform built on a carbon-fiber frame and controlled through a fiber-optic link. The wired communication architecture provides stable control and video transmission in environments with significant radio-frequency interference. The platform features a modular payload architecture and can be configured with analog, IP, or thermal imaging cameras.
Key Features
- 15-inch carbon-fiber frame for a robust and lightweight platform
- Fiber-optic control and video transmission for reliable operation in RF-interference environments
- Extended operating range: 20–30 km depending on fiber-optic spool configuration
- Modular camera options: analog, IP, or thermal imaging
- High-capacity power system based on dual 6S 25,000 mAh batteries
- Configurable platform adaptable to different operational requirements
Technical specifications
| Parameter | Specification |
| Platform Type | 15-inch FPV UAV |
| Frame | 15-inch carbon fiber |
| Control | Manual |
| Control & Video Range | 20 / 25 / 30 km, depending on spool |
| Operating Range | 20 / 25 / 30 km, depending on spool |
| Cruising Speed | 60–100 km/h |
| Control Wavelength | 1310 nm |
| Video Wavelength | 1550 nm |
| Camera Options | Analog / IP / Thermal imaging |
| Motors | 4320 350 KV |
| Battery | 2 × 6S5P, 25,000 mAh |
| Fiber-Optic Spool Weight | 1.81 kg (20 km) / 2.15 kg (25 km) / 2.55 kg (30 km) |
| Payload Capacity | Up to 5 kg |
