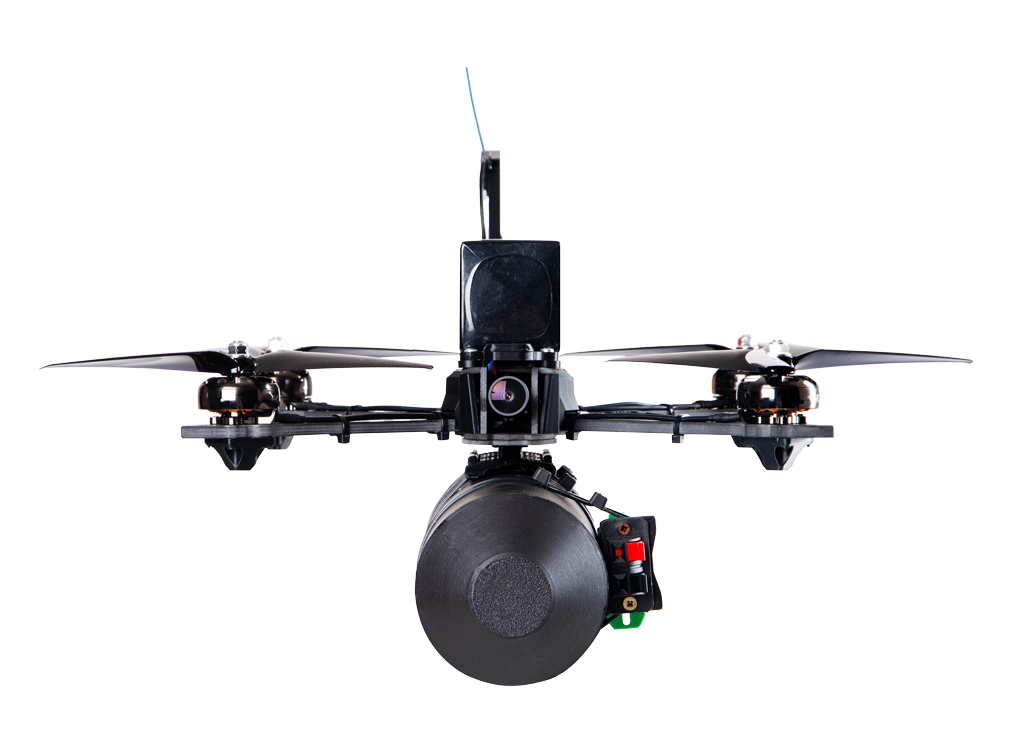

DZYGA-7
Tactical battlefield UAV FPV quadcopter designed for strike missions with manual guidance
Product descripton: DZYGA-7 by Warbirds
System Advantages
- STABILIZATION MODE
- MAINTAINING THE COURSE OF FALLING TO THE TARGET
- 2–3 MIN PREFLIGHT PREPARATION
- FLIES IN SNOW, RAIN, FOG, FROST DOWN TO -25°C
- HIGH RESISTANCE AGAINST GUNFIRE DAMAGE
- GPS-DENIED MODE
Technical specifications
| Parameter | Value |
|---|---|
| Copter dimensions | 360 mm / 360 mm / 80 mm |
| Payload | Up to 1000 g |
| Max takeoff weight | In combat gear – 2200 g |
| Cruising speed | 40 km/h |
| Endurance | 10 min |
| Combat range | 8000 m at a flight altitude of 70 m |
| Control | FPV glasses and/or a LED TV panel |
| Communication with the operator | Control, frequency 720–920 MHz; Analog video, 1.2 GHz |
| Power of the control transmitter | Up to 2000 mW |
| Motor type | Electric, pulling |
| Power supply system | Lithium-polymer battery, 5000 mAh |

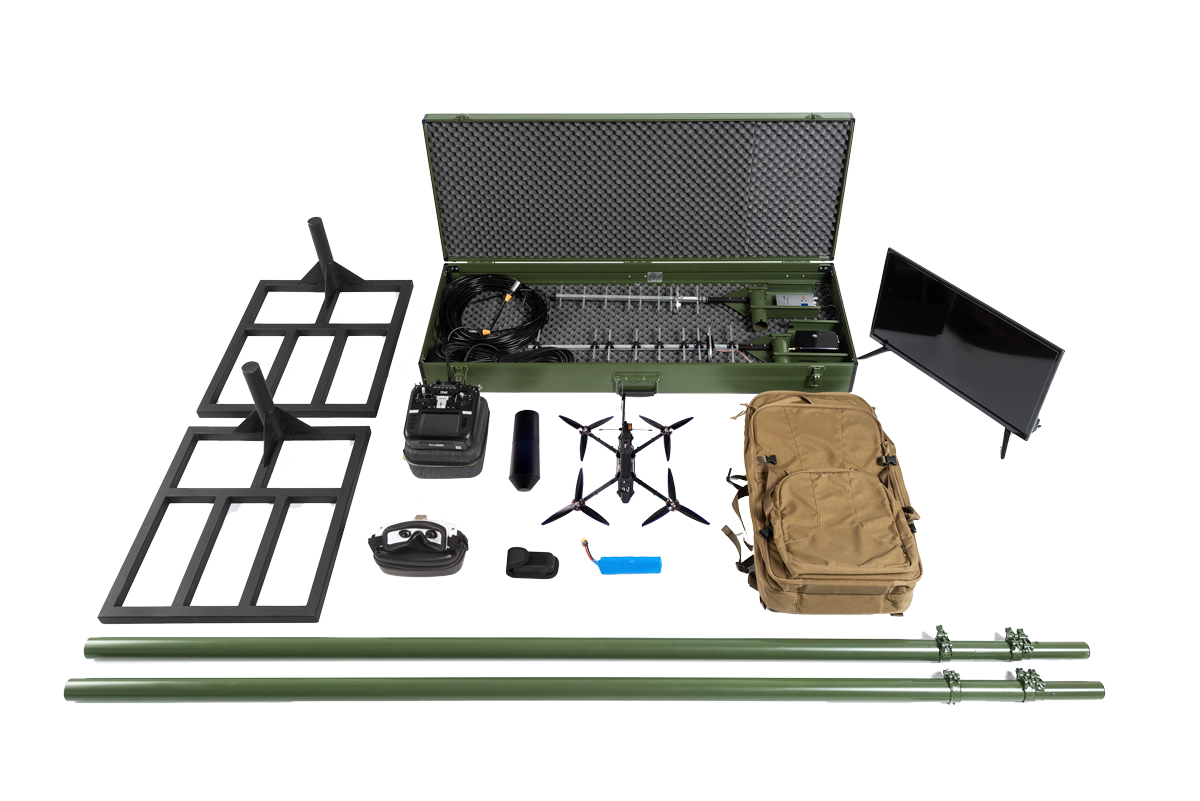

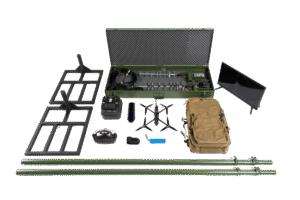

Complete Set
1. Copter DZYGA-7
Copter dimensions – 500 x 500 x 80 mm, weight without power battery and ammunition – 0.5 kg
Packaging dimensions – 550 x 385 x 80 mm, copter weight in packaging – 1.85 kg
2. Battery
6S, 5000 mAh battery for powering the drone
3. FPV-Goggles
For video transmission and OSD display, with the ability to record to a MicroSD memory card
4. FPV drone controller
Controller power supply: 2S battery, 2800 mAh
5. Video and telemetry antennas
Case dimensions 1015 x 390 x 120 mm, weight – 9.5 kg
6. “Conntroler” case (backpack)
Dimensions 680 х 330 х 300 mm, weight – 8,7kg
7. TV set
24” television with a remote control, adapted video input, and specialized mounting bracket
8. Charger
Charger with cables; multitool; 8 mm open-end wrench; hex key
9. Mast stands (2 pcs)
Dimensions – 500 x 600 x 276 mm, weight – 6 kg
10. Masts
Height – 2.14-7.2 m, weight – 5.4 kg
