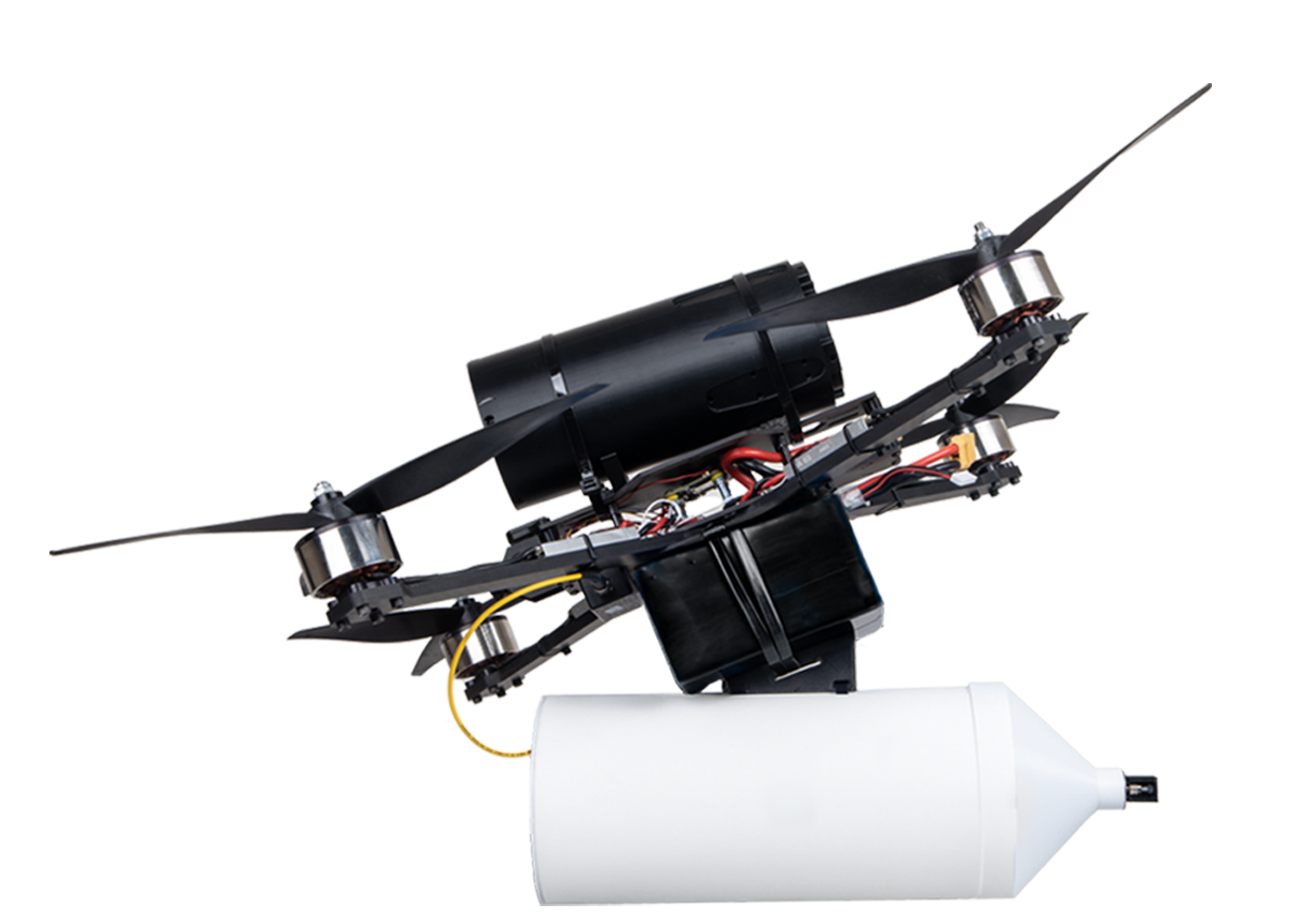

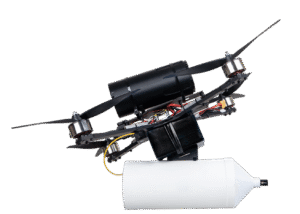

DZYGA-O-13
Product descripton: DZYGA-O-13 by Warbirds
System Advantages
- STABILIZATION MODE
- MAINTAINING ITS FLIGHT PATH TOWARDS TARGET
- 2–3 MIN PREFLIGHT PREPARATION
- OPERATES IN TEMPERATURES RANGING FROM -20°C TO +50°C
- FULL EW RESISTANCE
- GPS-DENIED MODE
Fiber Optic Spools
Fiber optic reels for DZYGA-O-13 are available in 15 km, 20 km, 25 km lengths, allowing you to choose the optimal ratio of range and payload.
Camera Modules
Two types of cameras are available for the camera modules: analog and digital IP, each in day or night versions.
The IP camera transmits video in high resolution (2592 px * 1944 px, 30 frames per second) without signal delay. The analog camera provides basic shooting with a wide viewing angle and minimal power consumption.
Transport and Storage
The elements of the complex are stored in a special bag-backpack, which allows transportation by hand, by road, sea, rail or air.
Technical specifications
| Parameter | Value |
|---|---|
| Copter dimensions | 700 ± 20 mm / 750 ± 20 mm / 380 ± 20 mm |
| Payload | from 3000 g |
| Max takeoff weight | In combat gear – 10,600 g |
| Cruising speed | 14 m/s |
| Endurance | at least 22 minutes |
| Combat range | from 15,000 m |
| Control | FPV glasses and/or a LED TV panel |
| Spool with fiber optic cable | at least 15,000 meters |
| Motor type | Electric, pulling |
| Power supply system | Li-Ion battery with a capacity of at least 25000 mAh |
Fiber Spool Options
| Fiber length | Weight | Dimensions |
|---|---|---|
| 15 km | 1600 g (1.6 kg) | 125 mm / 340 mm |
| 20 km | 1900 g (1.9 kg) | 125 mm / 340 mm |
| 25 km | 2400 g (2.0 kg) | 125 mm / 340 mm |

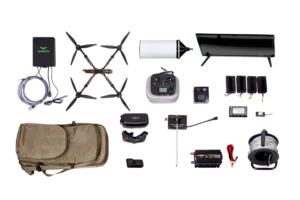

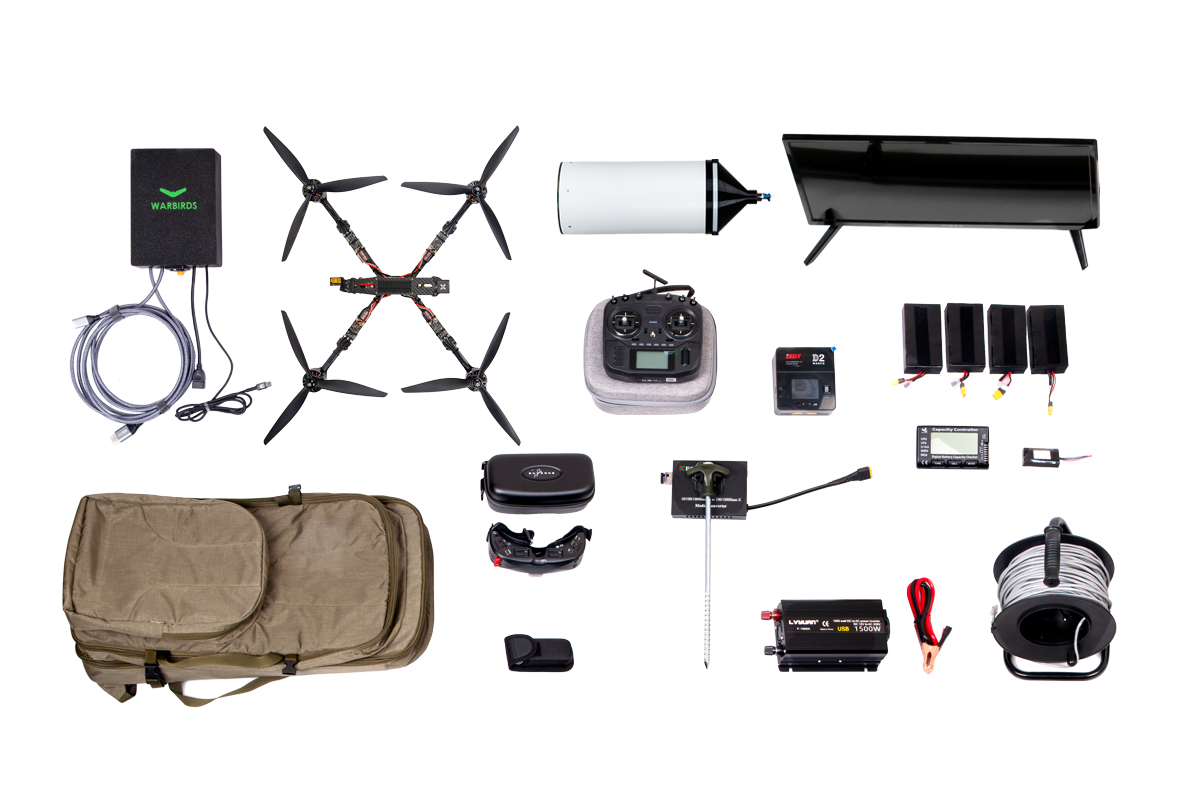

Complete Set
1. Optical Signal Conversion Module
2. DZYGA-O-13
Copter dimensions: 700 mm / 750 mm / 380 mm
3. Fiber Optic Reel
4. 24” TV with Remote Control
Adapted video input and specialized mount
5. FPV Drone Control Panel
Controller power supply: 2S battery, 2800 mAh
6. Battery Charger
7. Li-Ion Batteries 3S 5600 mAh
8. “Control” Case (Backpack)
Dimensions 680 x 330 x 300 mm
9. FPV-Goggles
Skyzone 004
10. Stake with Optical Signal Conversion Module
11. Cellmeter (Battery Checker)
12. Li-Ion 2S 2800 mAh Battery
13. Multitool
14. Inverter
15. Reel with Cable 50 m

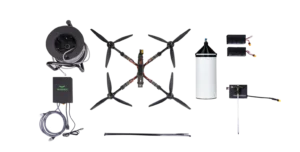

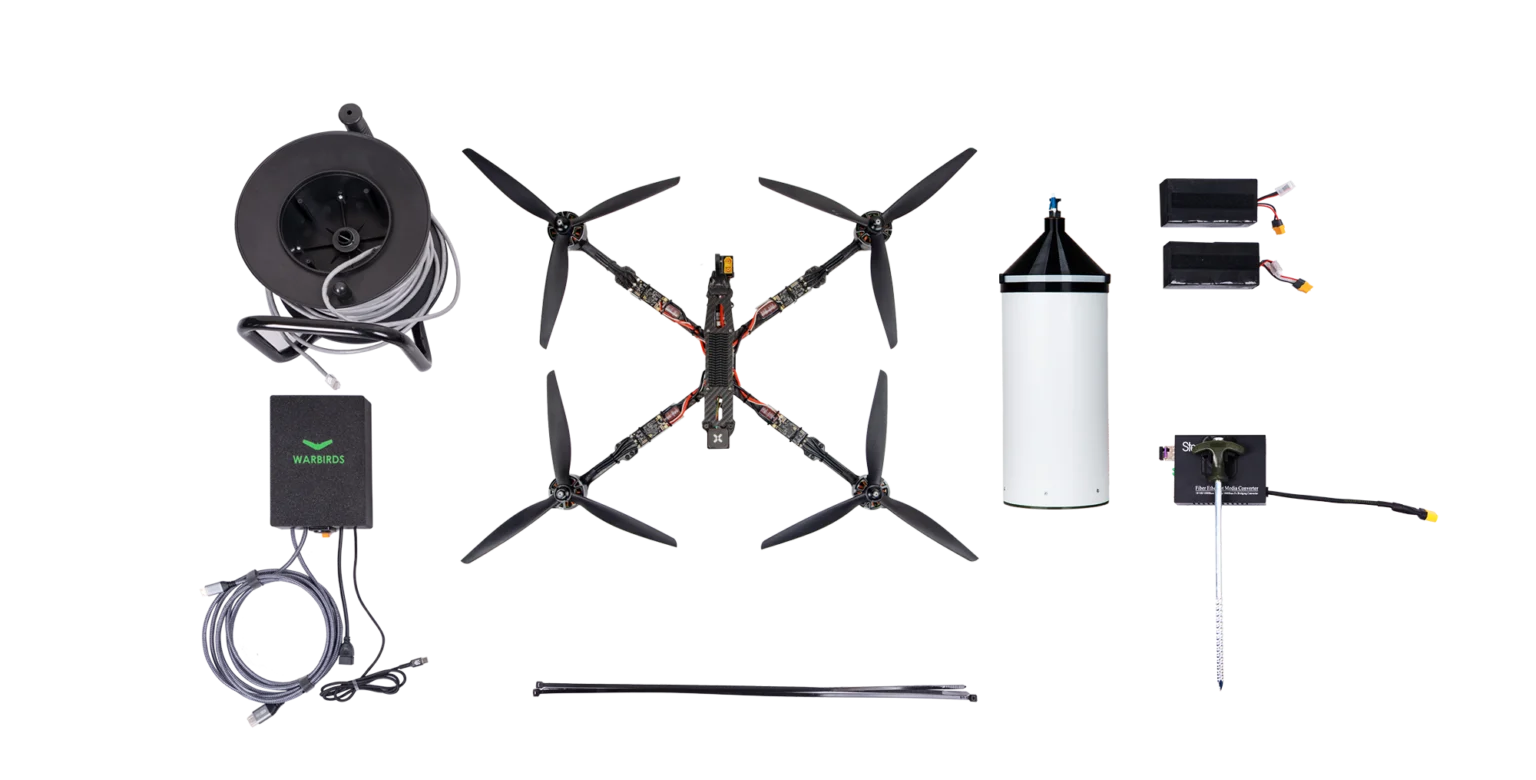

Mini Set
1. Reel with Cable 50 m
2. DZYGA-O-13
Copter dimensions: 700 mm / 750 mm / 380 mm
