Galka
Product descripton: Galka by Warbirds
System Benefits
- Used at the frontline since 2015
- SECURE CONTROL CHANNEL
- 5 DAYS PILOT TRAINING
- 15 MINS. MISSION PREPARATION TIME
- FLIES IN SNOW, RAIN, FOG, FROST DOWN TO -27°C
- HIGH RESISTANCE AGAINST GUNFIRE DAMAGE
- GPS-DENIED MODE
Technical specifications
| Parameter | Value |
|---|---|
| Dimensions | 1600 mm / 730 mm |
| Takeoff weight (with battery) | 3,7 kg |
| Cruising speed | 60 km/h |
| Endurance | 150+ min |
| Telemetric and video signal range | 45 km |
| Launching | Automatic, by means of a bungee cord |
| Landing | Automatic, aircraft-like |
| Navigation system | GPS, autopilot with inertial system |
| Motor type | Brushless electric motor |
| Airframe material | EPP, carbon frame, composite |
| Power supply system | Lithium-ion batteries with a capacity up to 30000 mAh |
| Climate conditions | All-weather |
| Additional | A Pitot tube heating |

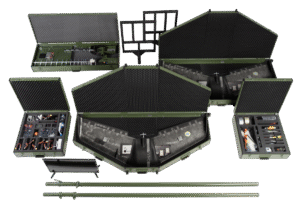

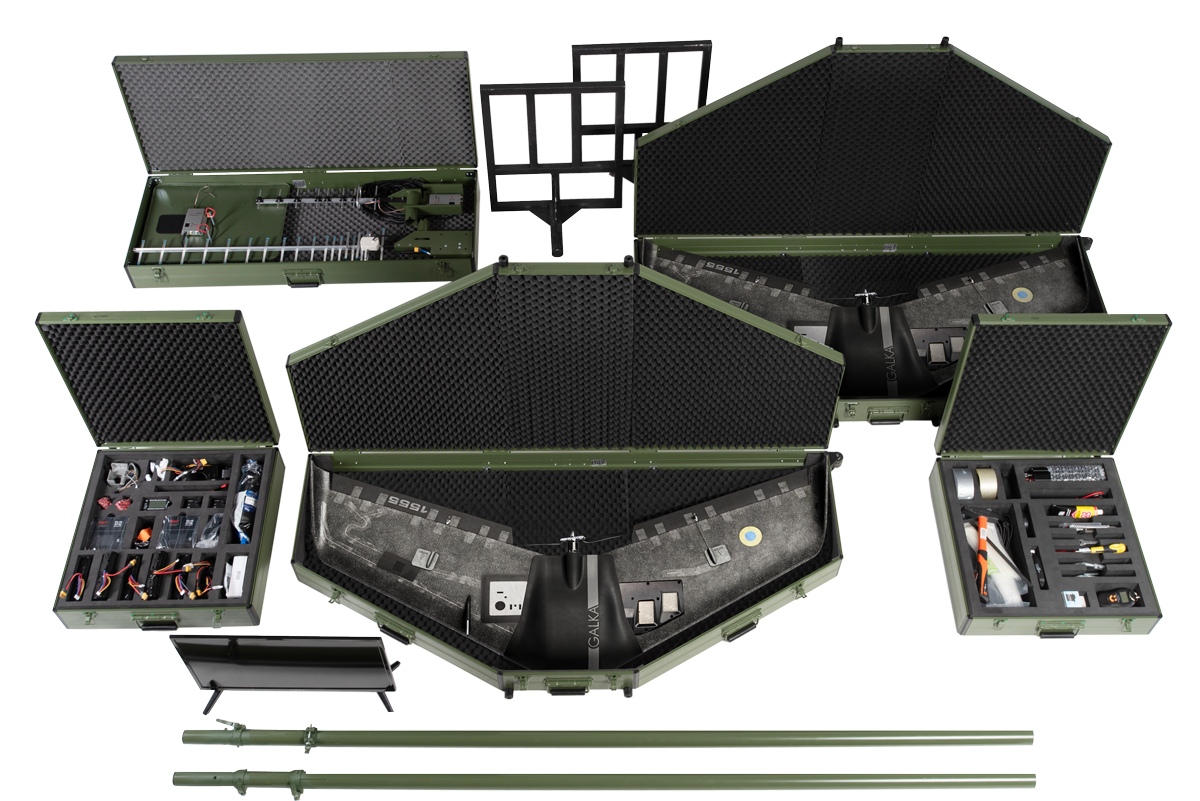

Complete Set
1. UAV GALKA (2 pcs)
Case dimensions — 1600×730×120 mm, weight — 2.4 kg
2. Case “Batteries”
Items included: Batteries, tester, GPS tracker, antenna, video adapter, charger, power and USB cables, cameras, memory card, laptop, etc.
Case dimensions – 565×595×168 mm, weight – 20.8 kg
3. Case «Bungee cord»
Items included: Screwdriver, control canter, carbine, glue 88, spanner, lever, blades, hammer, multitool, knife, voltage converter, propeller, servo, adhesive tape, insulating tape, ties, bungee cord stand.
Case dimensions – 565×595×188 mm, weight — 12.7 kg
4. UAV Galka case (2 pcs)
Case dimensions — 1695×815×155 mm, weight — 18.6 kg
5. Mast stands (2 pcs)
Dimensions — 500×600×276 mm, weight — 6 kg
6. TV set, PC
TV: diagonal – 24″, weight – 2.4 kg
PC: Acer Enduro Urban N3
- Tablet is an optional item
7. Case K3 “Antennas”
Telemetry antenna, video antenna, video cable.
Case dimensions — 1235×500×170 mm, weight — 14,6 kg
8. Telescopic mast (2 pcs)
Dimensions — 500×600×276 mm, weight — 6 kg
