Pugach
Product descripton: Pugach by Warbirds
System Advantages
- TARGET ACQUISITION
- MANUAL AND AUTOMATIC WARHEAD DROP
- 15 MINS. MISSION PREPARATION TIME
- FLIES IN SNOW, RAIN, FOG, FROST DOWN TO -27°C
- 5 MINS. CATAPULT LAUNCH SYSTEM RELOAD
- GPS-DENIED MODE
Technical specifications
| Parameter | Value |
|---|---|
| Dimensions | 1600 mm / 730 mm |
| Takeoff weight (without battery) | 5,6 kg |
| Cruising speed | 18–22 m/sec |
| Endurance | 120+ mins |
| Telemetric and video signal range | 45 km |
| Launching | Catapult launch |
| Landing | Automatic, aircraft-like |
| Navigation system | GPS, autopilot with inertial system |
| Motor type | Brushless electric motor |
| Airframe material | EPP, carbon frame, composite |
| Power supply system | Lithium-ion batteries with a capacity up to 30000 mAh |
| Climate conditions | All-weather |
| Additional | A Pitot tube heating |

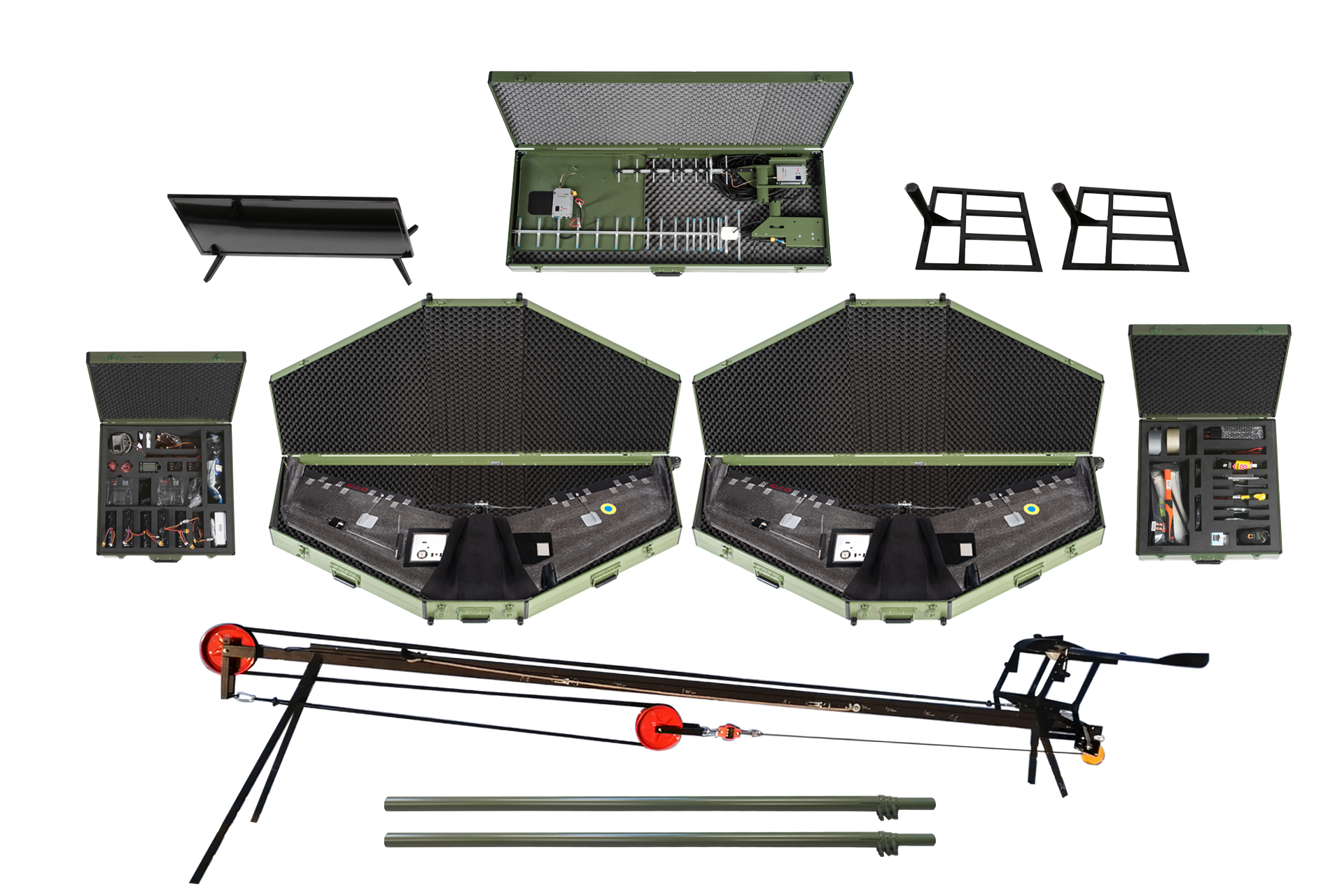

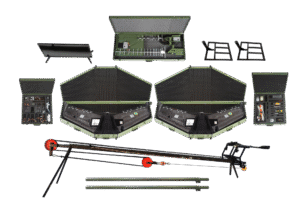

Complete Set
1. TV set, Laptop
TV: diagonal — 24″, weight — 3,8 kg
Laptop
*Tablet is an optional item
2. The case of the Antenna Company
Telemetry antenna, video antenna, video cable.
Dimensions of the case are 1235×500×170 mm, weight is 19.8 kg
3. Masts (2 pcs)
Dimensions — 500×600×276 mm, weight — 6 kg
4. Case “Batteries”
Included items: Batteries, tester, GPS tracker, antenna, video adapter, charger, power and USB cables, memory card
Case dimensions – 565×595×168 mm, weight – 20.8 kg
5. UAV PUGACH (2 pcs)
Case dimensions — 1600×730×120 mm, weight — 2.4 kg
6. Case “Bungee cord”
Included items: Screwdriver, control canter, carbine, glue 88, spanner, lever, blades, hammer, multitool, knife, voltage converter, propeller, servo, adhesive tape, insulating tape, ties, bungee cord stand.
Dimensions – 565×595×188 mm, weight — 15 kg
7. Catapult
8. Telescopic mast (2 units)
Height – 2.14–7.2 m, weight – 5.4 kg
